Ubiquiti UCG-INDUSTRIAL | UniFi Cloud Gateway Industrial, 10G SFP+, 350W PoE

Name: Ubiquiti UCG-INDUSTRIAL | UniFi Cloud Gateway Industrial, 10G SFP+, 350W PoE
Brand: Ubiquiti
SKU: UCG-INDUSTRIAL
Price: 1075.25 AUD
Availability: InStock

Authorised Ubiquiti Partner

SKU:UCG-INDUSTRIAL

In stock:100

$1,075.25 inc. GST

$977.50 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

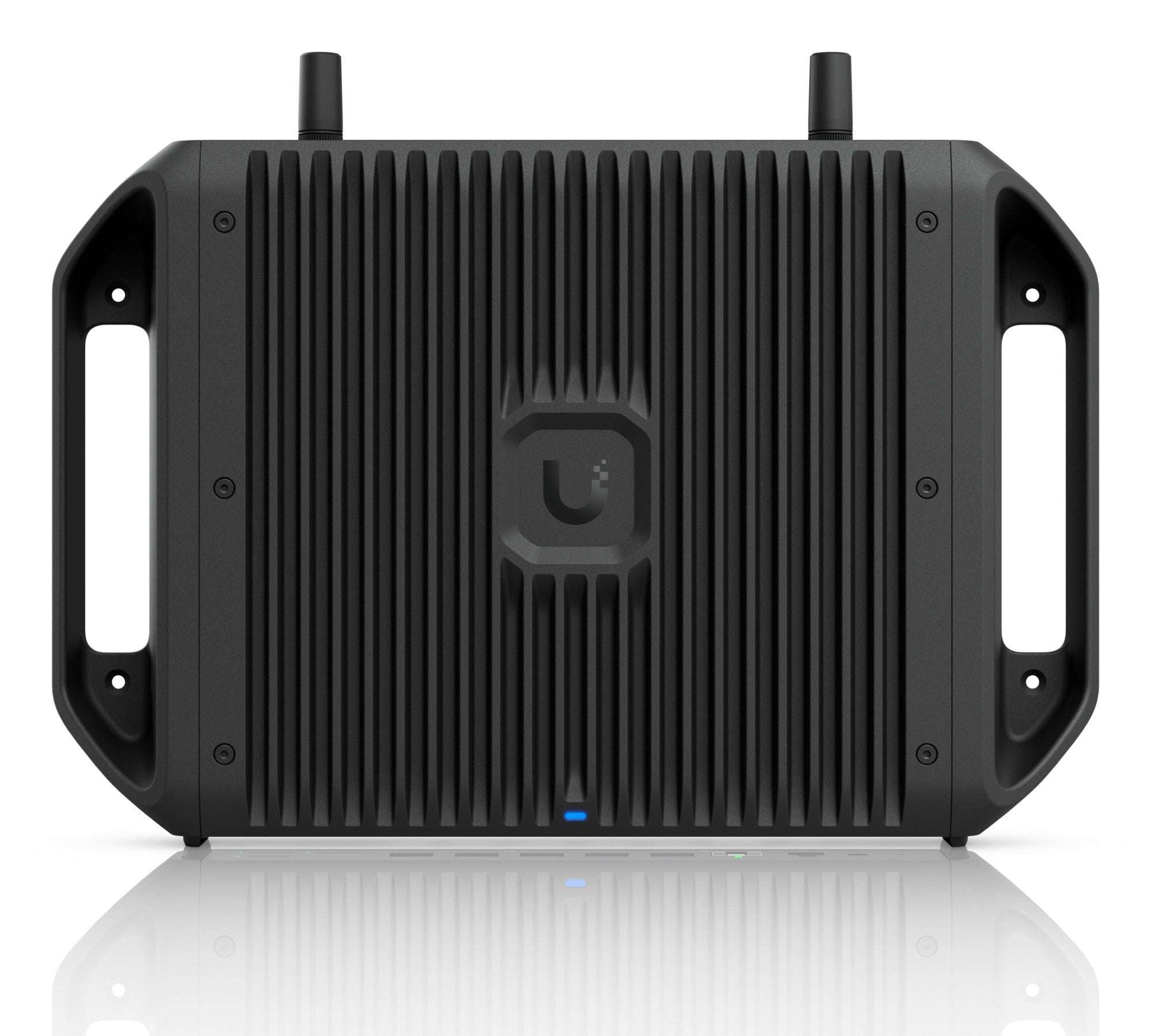

The Ubiquiti UniFi Cloud Gateway Industrial (UCG-Industrial) is a ruggedised, fanless 10 GbE gateway and UniFi OS console built for demanding deployments. It combines advanced multi-WAN routing, a stateful and application-aware firewall with IDS/IPS (5 Gbps), and high-density PoE, with a 350W power supply and a PoE budget of 270W from the DC supply.

With a 10G SFP+ port, a 10 GbE RJ45 port and four 2.5 GbE RJ45 ports, including PoE+++ ports delivering up to 90W each, it can power and manage access points, cameras and other UniFi devices from a single unit. It runs the UniFi application suite locally with a pre-installed microSD card, supports SIM cellular failover, and suits wall-mount, desktop or rack-mount installation in environments from -30 to 50 degrees Celsius.

Features

- Industrial-grade ruggedised, fanless enclosure for dust, vibration and temperature swings
- All-in-one gateway and UniFi OS console running UniFi Network and other UniFi applications
- Stateful firewall, application-aware Layer 7 firewall and IDS/IPS
- Advanced routing with multi-WAN support
- High-density PoE with PoE+++ (90W) ports
- Flexible external antenna support
- Modular mounting options

Warranty

Ubiquiti products come with a 1-year limited hardware warranty covering defects in materials and workmanship under normal use.

Extended Warranty Options:
Extended warranty options may be available through IP Trading. Contact our team to discuss coverage tailored to your needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 1 x 10G SFP+ (10G/1G), 1 x 10 GbE RJ45 (PoE+++), 4 x 2.5 GbE RJ45 (2 PoE+++, 2 PoE+)
- Default WAN ports: 1 x 10G SFP+, 1 x 10 GbE RJ45, 1 x 2.5 GbE RJ45; maximum 5 WAN ports
- IDS/IPS throughput: 5 Gbps
- Processor: quad-core ARM Cortex-A73 at 2.2 GHz, 3 GB system memory
- Power: 54V DC, 350W PSU included
- PoE budget: 270W (DC) / 75W (ATX); up to 90W per PoE+++ port, 30W per PoE+ port
- Maximum power consumption: 28W (excluding PoE)
- Storage: microSD slot, 128 GB microSD pre-installed
- Wireless: dual-band WiFi 7 (802.11be), 2x2 MIMO
- SIM slot with cellular failover support
- Manages 50+ UniFi devices and 500+ simultaneous users, up to 15 HD, 8 2K or 5 4K cameras
- Operating temperature: -30 to 50 degrees Celsius
- ESD protection: air 8kV, contact 4kV
- Dimensions: 307.9 x 203.5 x 43.7 mm, weight 2.4 kg
- Mounting: wall-mount, desktop (table stand included), rack mount (accessory sold separately)
- Enclosure: polycarbonate and aluminium alloy, fanless

FAQs

Q: How many PoE ports does the UCG-Industrial have?
A: It provides PoE on its 10 GbE RJ45 port (PoE+++) and on the four 2.5 GbE RJ45 ports, where two support PoE+++ (up to 90W) and two support PoE+ (up to 30W).

Q: What is the total PoE budget?
A: The included 350W 54V DC power supply gives a PoE budget of 270W, or 75W when powered via ATX.

Q: Does it support cellular failover?
A: Yes, it includes a SIM slot with cellular failover support.

Q: Can it run the UniFi Network application locally?
A: Yes, it is a UniFi OS console that runs UniFi Network and other UniFi applications, with a 128 GB microSD card pre-installed for storage.

Q: How many devices and users can it manage?
A: It can manage 50+ UniFi devices and 500+ simultaneous users, and supports up to 15 HD, 8 2K or 5 4K cameras.

Q: Can it be rack mounted?
A: Yes, rack mounting is supported using an accessory sold separately. It can also be wall-mounted or used on a desktop with the included table stand.
