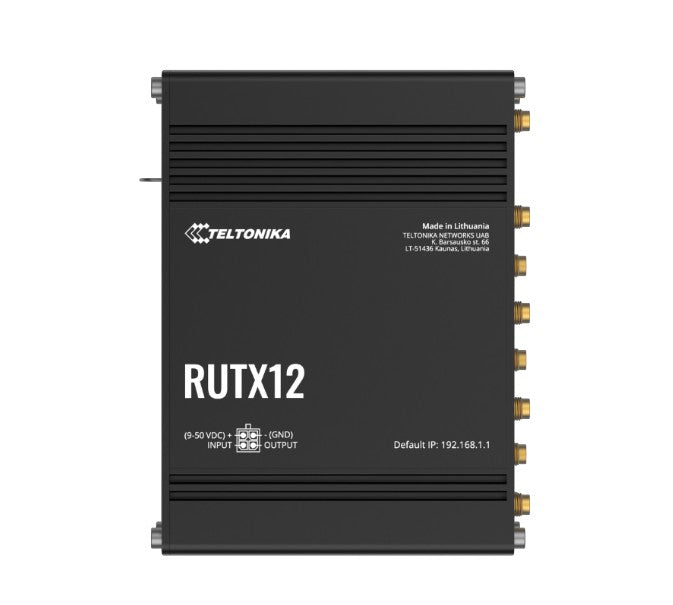

Teltonika RUTX12000200/RUTX12200200 | RUTX12 Industrial Dual LTE Cat 6 Router, Wi-Fi 5, PSU

Name: Teltonika RUTX12000200/RUTX12200200 | RUTX12 Industrial Dual LTE Cat 6 Router, Wi-Fi 5, PSU
Brand: Teltonika
SKU: RUTX12000200/RUTX12200200
Price: 929.78 AUD
Availability: InStock

Authorised Teltonika Partner

SKU:RUTX12000200/RUTX12200200

In stock:3

$929.78 inc. GST

$845.25 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The Teltonika RUTX12 is an industrial dual LTE Cat 6 cellular router with two LTE modems, dual SIM failover, five Gigabit Ethernet ports and dual-band Wi-Fi 5. This variant is supplied with a power supply and suits mission-critical industrial and enterprise sites where connectivity must not drop. Both modems can run at once for WAN load balancing, with up to 600 Mbps aggregate throughput.

Built in an aluminium housing with DIN rail or flat-surface mounting, the RUTX12 operates from -40 °C to 75 °C and accepts 9-50 VDC input. Bluetooth LE, multi-constellation GNSS, a digital input and output, and USB add flexibility for remote monitoring, tracking and site automation. It runs RutOS and integrates with the Teltonika Remote Management System (RMS) for centralised fleet management.

Features

- Dual simultaneous LTE connections with WAN load balancing
- Dual-SIM automatic failover switching
- VPN support including IPsec, PPTP, L2TP and Stunnel, with firewall
- RutOS operating system with advanced software and security features
- Compatible with Teltonika Remote Management System (RMS)
- GNSS tracking and geofencing
- Industrial-grade aluminium housing with DIN rail mounting

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 2 x LTE Cat 6 modems, up to 300 Mbps each, up to 600 Mbps with load balancing, 3G fallback
- 2 x external SIM slots (2FF) with instant failover
- 5 x 10/100/1000 Ethernet ports (1 x WAN configurable as LAN, 4 x LAN)
- Dual-band 802.11ac Wave 2 Wi-Fi 5 (2.4/5 GHz, MU-MIMO, up to 867 Mbps)
- Bluetooth 4.0 LE
- GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
- Quad-core ARM Cortex-A7 717 MHz CPU, 256 MB RAM, 256 MB flash
- USB interface
- Antenna connectors: 4 x SMA (LTE), 2 x RP-SMA (Wi-Fi), 1 x SMA (GNSS), 1 x RP-SMA (Bluetooth)
- Power: 4-pin DC connector, 9-50 VDC, reverse polarity and surge protection
- 1 x digital input, 1 x digital output
- Operating temperature -40 °C to 75 °C
- Aluminium housing, DIN rail or flat-surface mounting
- Dimensions 132 x 44 x 95 mm, weight 540 g
- Power supply included

FAQs

Q: Does the RUTX12 support WAN failover between two cellular connections?
A: Yes. It has two LTE Cat 6 modems and two external SIM slots with automatic failover, and both modems can be used together for WAN load balancing.

Q: What is the maximum cellular throughput?
A: Each LTE Cat 6 modem supports up to 300 Mbps, giving up to 600 Mbps with load balancing. The modems fall back to 3G where LTE is unavailable.

Q: Can the RUTX12 be managed remotely?
A: Yes. It is compatible with the Teltonika Remote Management System (RMS) and runs RutOS for centralised configuration and monitoring.

Q: What power input does the router accept?
A: It accepts 9-50 VDC through a 4-pin DC connector with reverse polarity and surge protection. A power supply is included with this variant.

Q: Does it include Wi-Fi and GNSS?
A: Yes. It has dual-band 802.11ac Wave 2 Wi-Fi 5 with MU-MIMO, Bluetooth 4.0 LE, and GNSS support for GPS, GLONASS, BeiDou, Galileo and QZSS.

Q: How can the RUTX12 be mounted?
A: The aluminium housing supports DIN rail or flat-surface mounting and is rated for operation from -40 °C to 75 °C.
