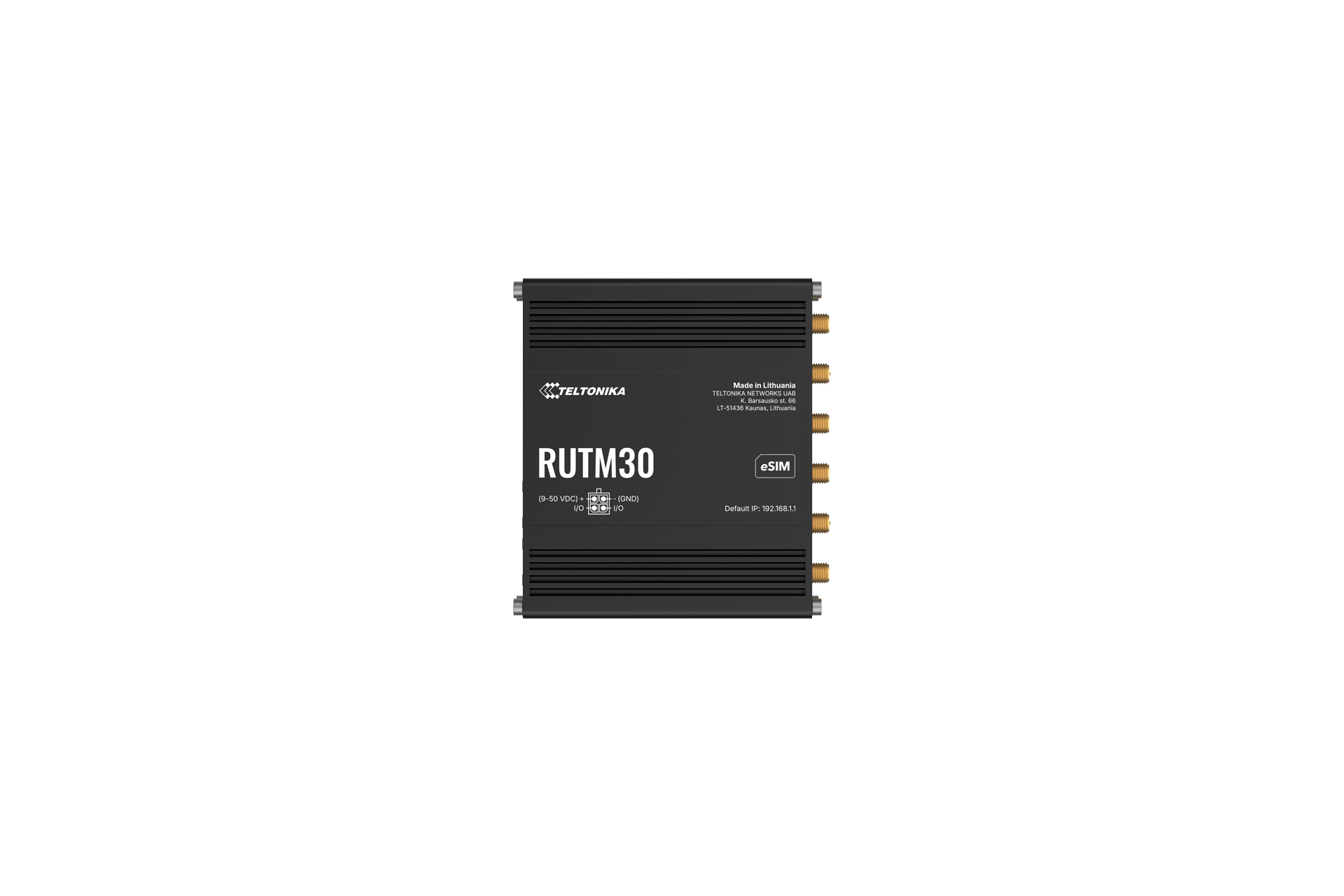

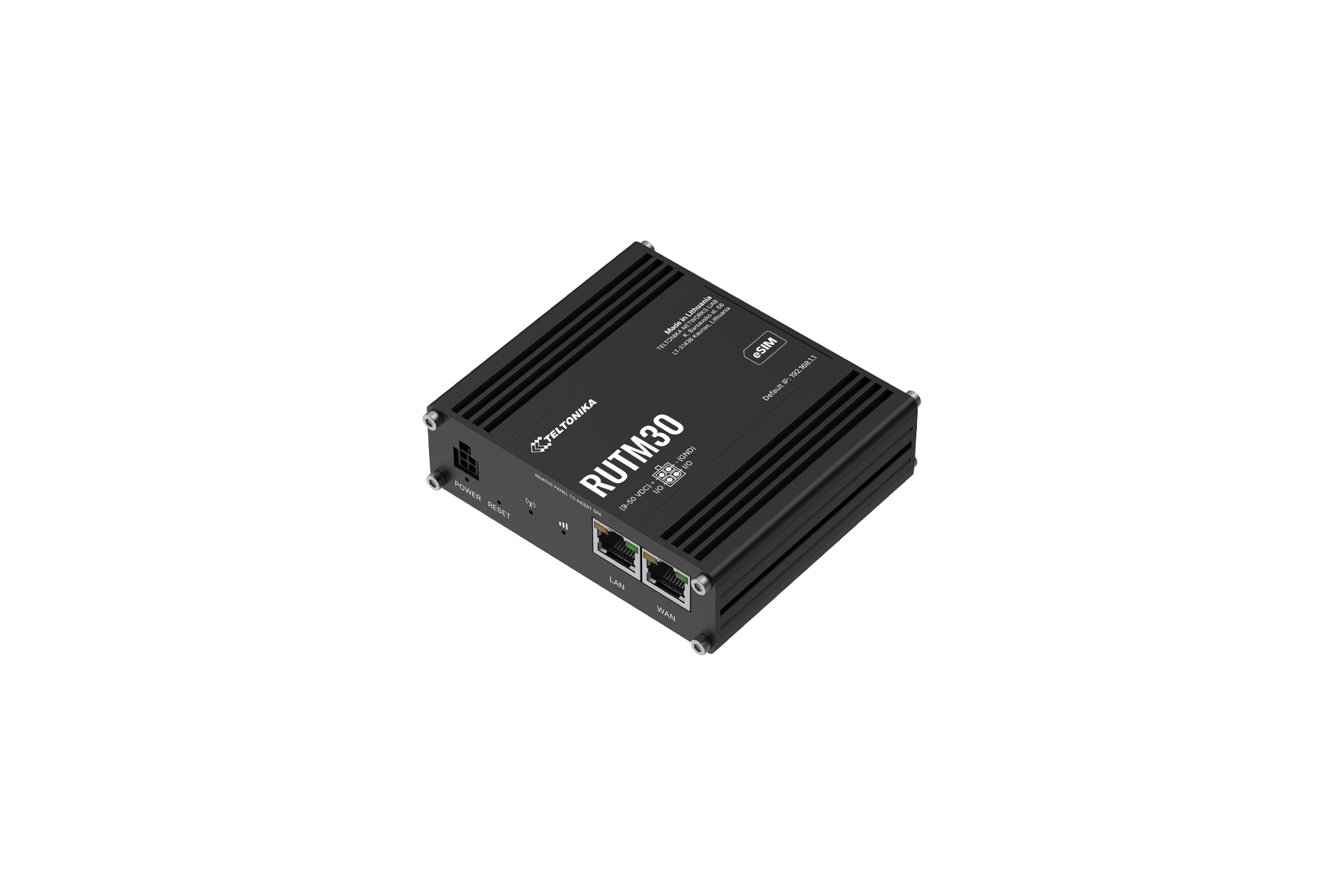

Teltonika RUTM300000A00/RUTM300000500 | RUTM30 5G Dual-SIM Router, Wi-Fi 5, 18W PSU, Antennas

Authorised Teltonika Partner

SKU:RUTM300000A00/RUTM300000500

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

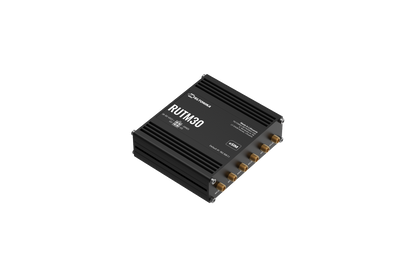

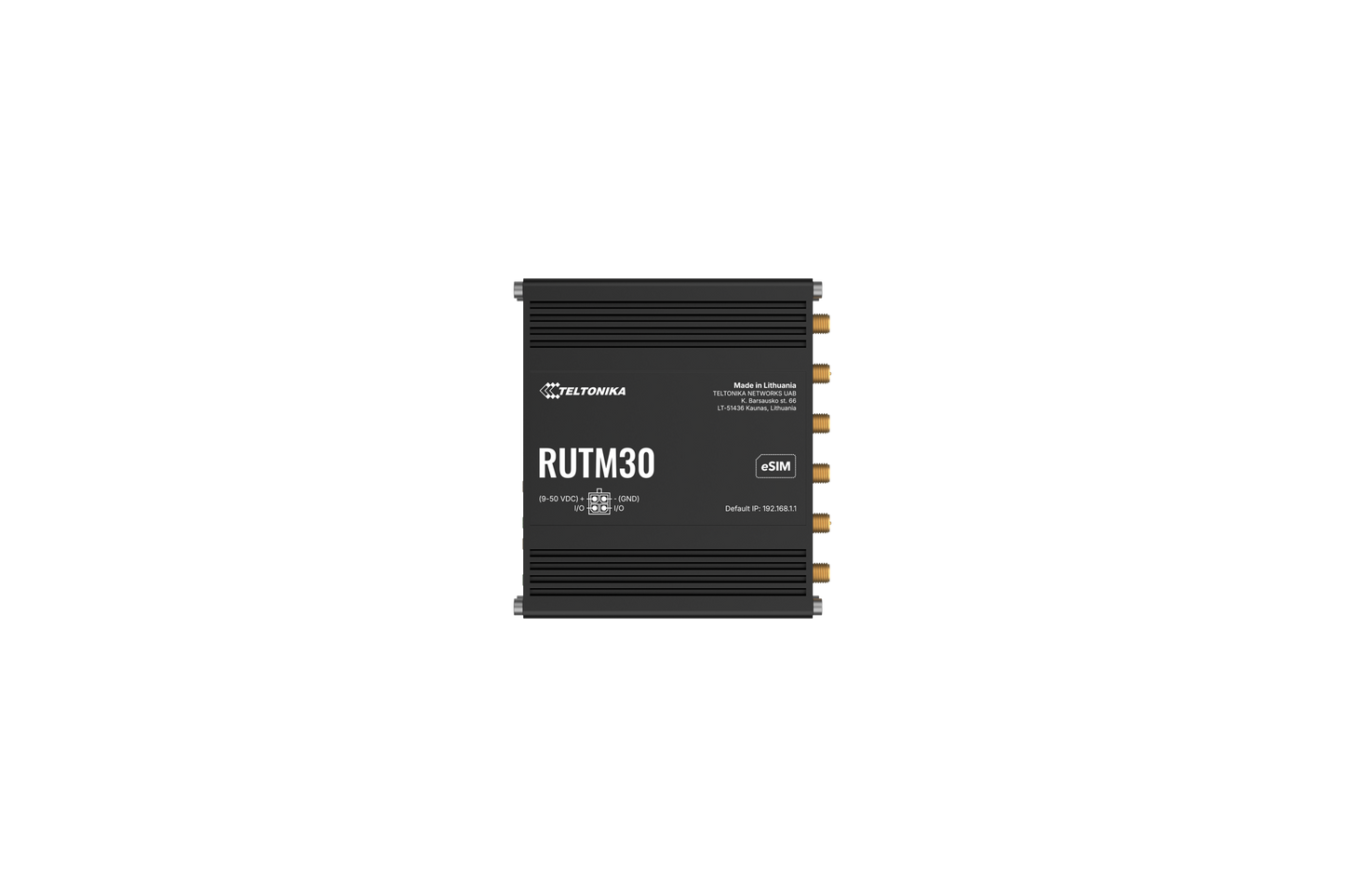

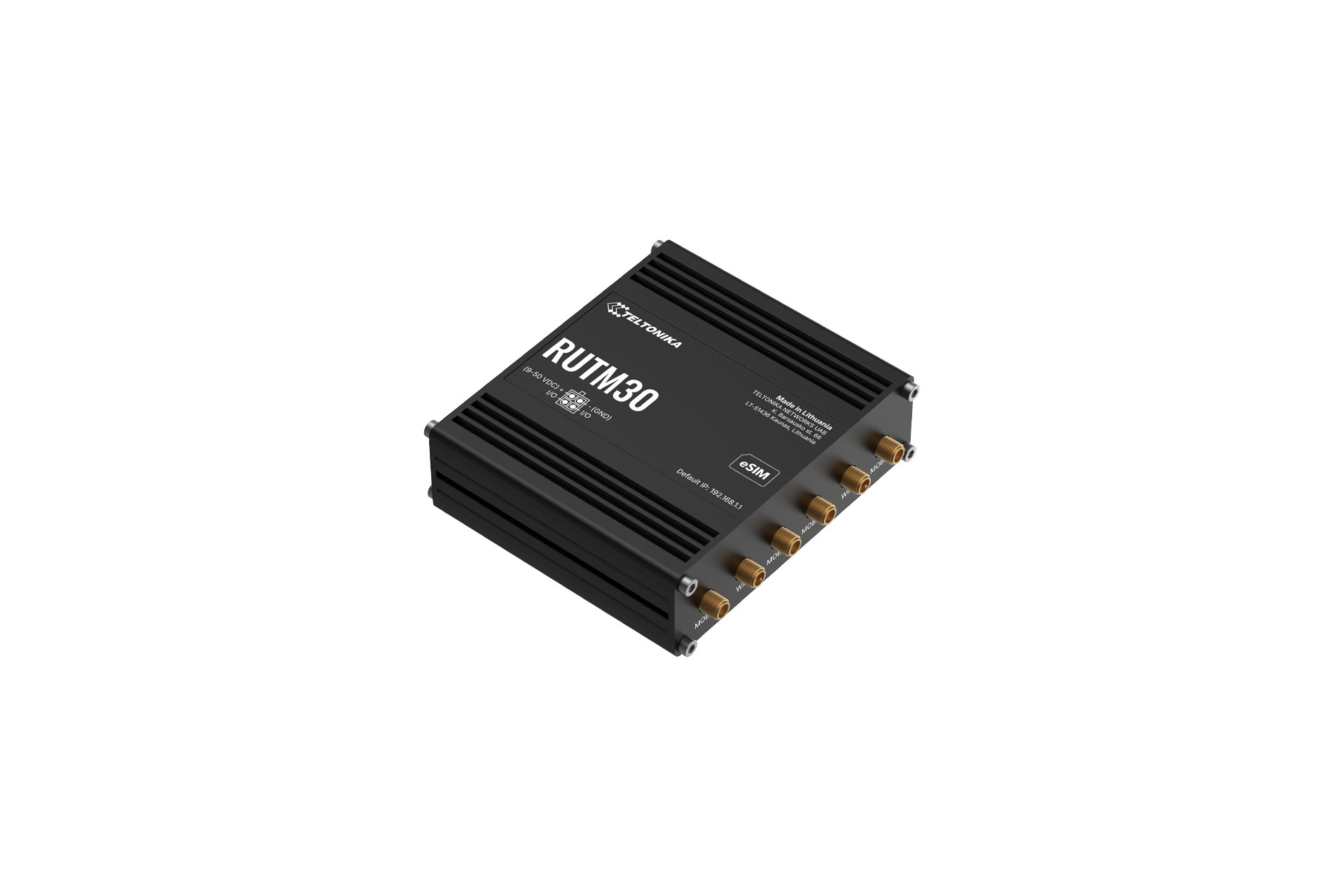

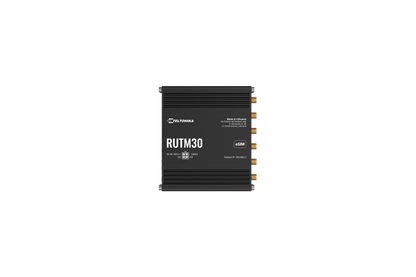

The Teltonika RUTM30 is a compact industrial 5G router supporting Sub-6GHz SA and NSA networks, with 4G LTE Cat 19 and 3G fallback. This RUTM300000A00/RUTM300000500 bundle ships with an 18 W power supply, 4 x 5G antennas and 2 x Wi-Fi antennas, so it is ready to deploy at remote sites, in IoT and M2M installations and in industrial environments. Dual Mini SIM slots plus an eSIM provide automatic failover between carriers.

Dual-band Wi-Fi 5 with MU-MIMO and Gigabit Ethernet connect on-site devices, while RutOS delivers routing, firewall and VPN features including OpenVPN, IPsec and WireGuard. A 9-50 VDC input, passive PoE-in, an IP30 aluminium housing and a -40 to +75 degrees C operating range suit demanding installations, with DIN rail and wall mounting options. Remote fleet management is available through Teltonika RMS.

Features

- 5G SA and NSA support with LTE Cat 19 and 3G fallback
- Dual SIM and eSIM with automatic failover based on signal, data limit and roaming
- RutOS (OpenWrt-based) with BGP, OSPF, VLAN, firewall and NAT
- VPN support: OpenVPN, IPsec, WireGuard, L2TP, ZeroTier, Tailscale, DMVPN
- Industrial protocols: Modbus TCP, OPC UA, DNP3
- Wi-Fi mesh (802.11s), fast roaming (802.11r) and WPA3 security
- TPM 2.0 hardware security
- Remote fleet management via Teltonika RMS

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 5G Sub-6GHz SA/NSA: up to 2.4/3.4 Gbps downlink (4x4 MIMO), 900/550 Mbps uplink (2x2)
- 4G LTE Cat 19 (1.6 Gbps downlink) / Cat 18 (200 Mbps uplink), 3G fallback
- 3GPP Release 16
- 2 x Mini SIM slots plus 1 x eSIM (up to 7 profiles) with auto-failover
- Wi-Fi 5 (802.11ac Wave 2) dual-band, MU-MIMO, up to 867 Mbps

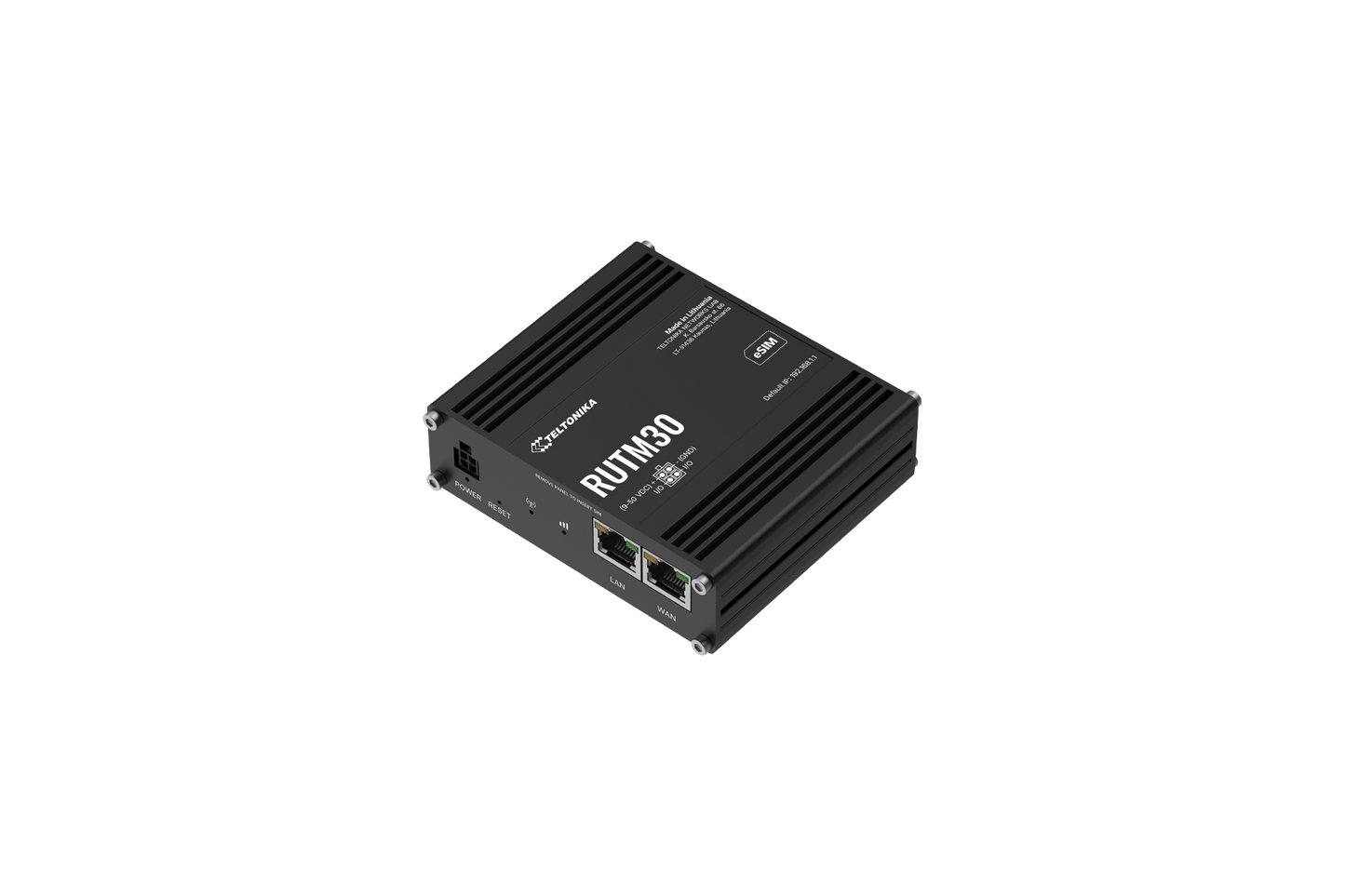

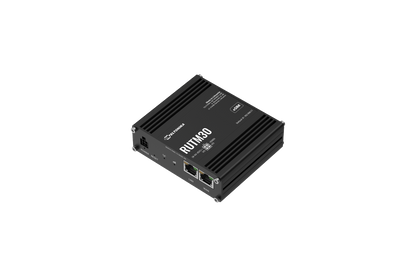

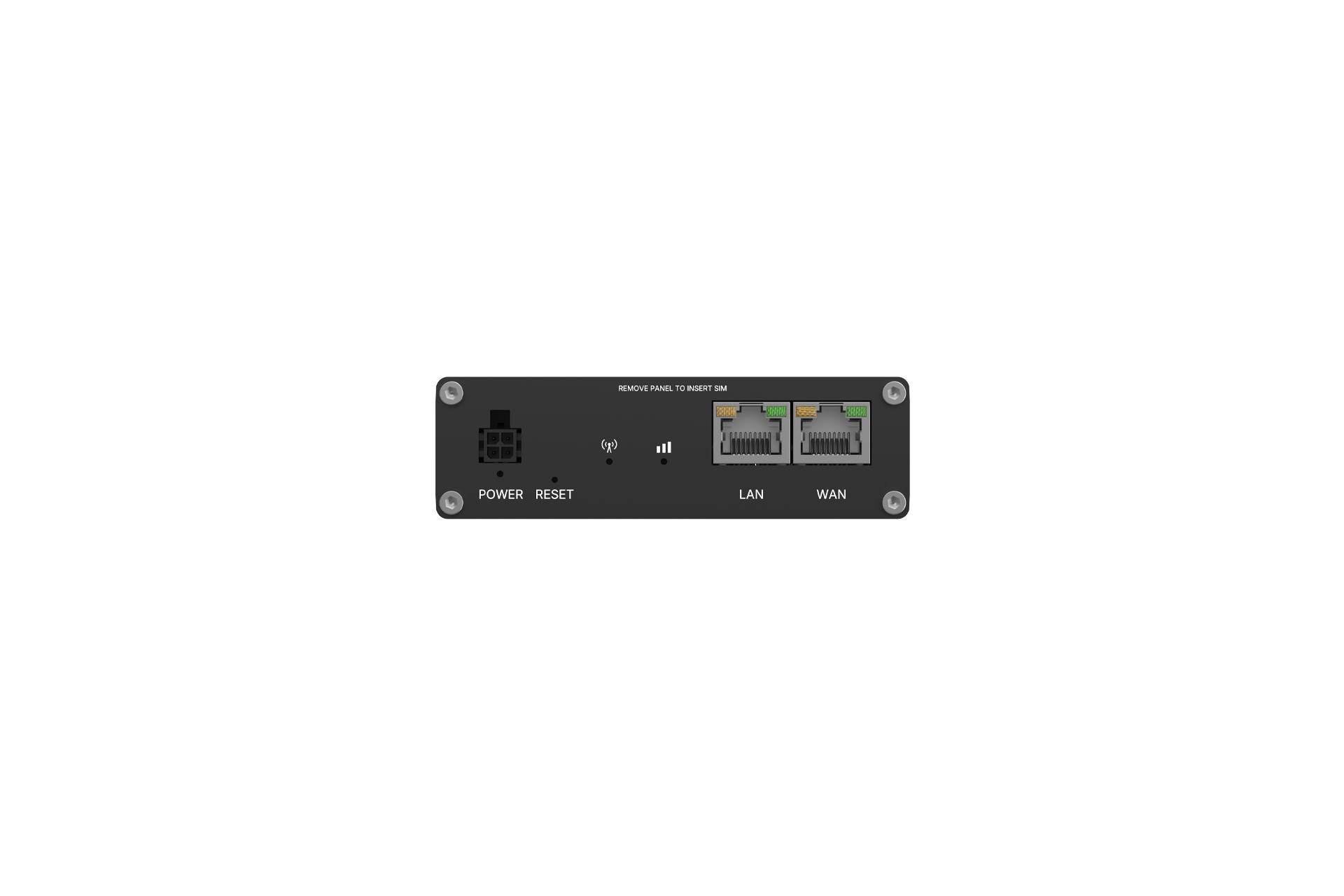

- 2 x RJ45 10/100/1000 Mbps Ethernet ports (1 x WAN, 1 x LAN)
- 1 x configurable digital input, 1 x digital output (4-pin power connector)

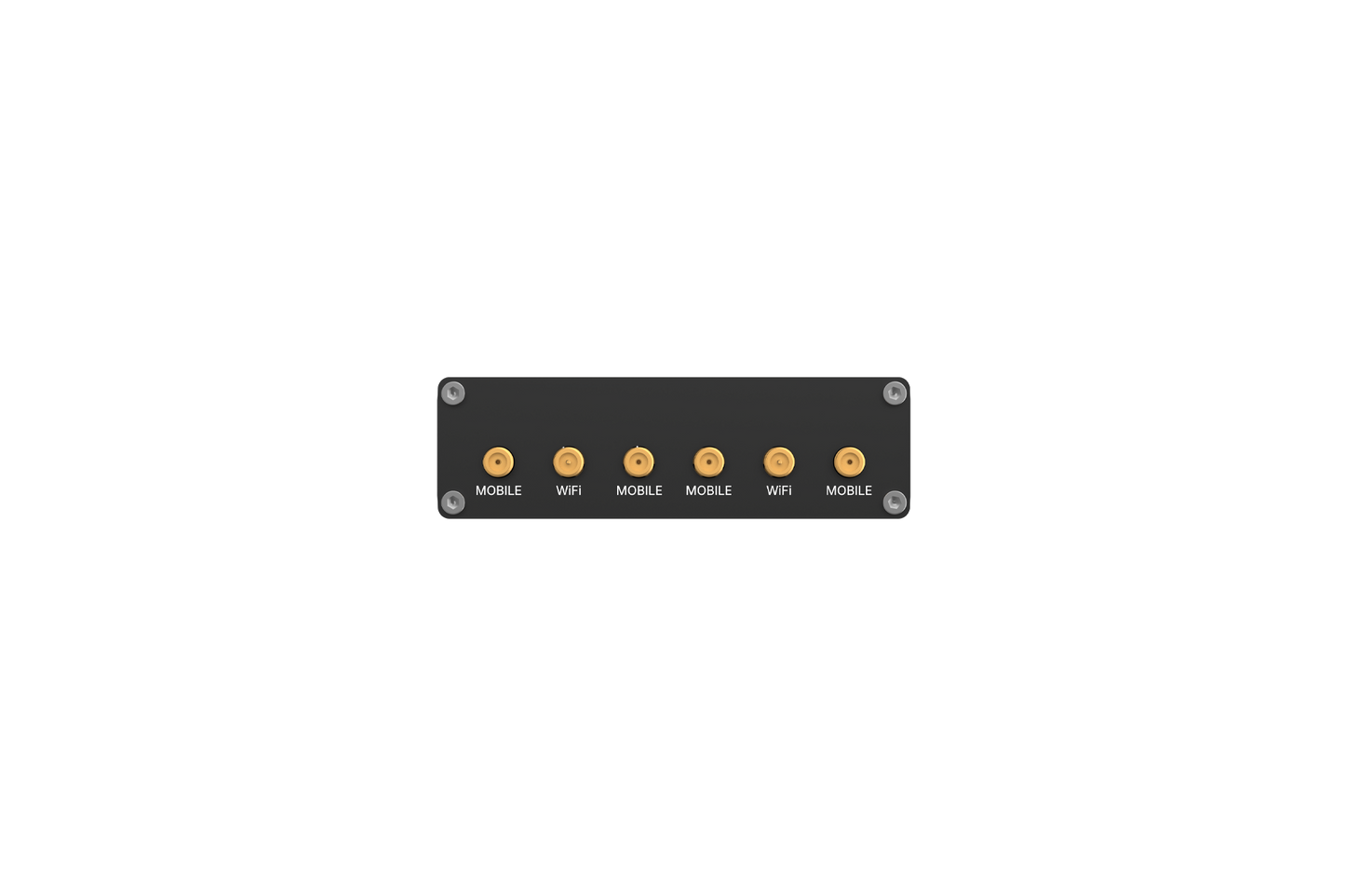

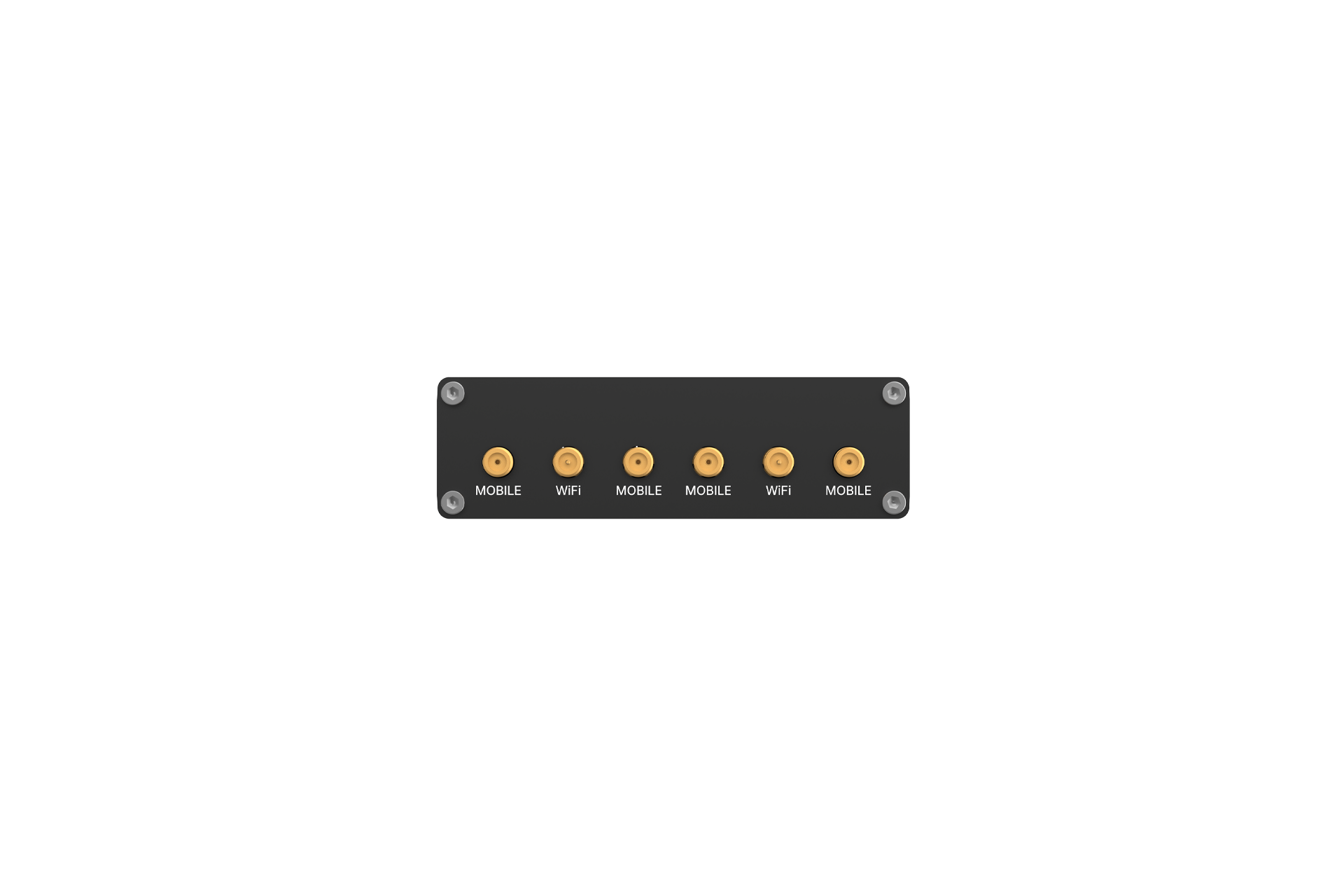

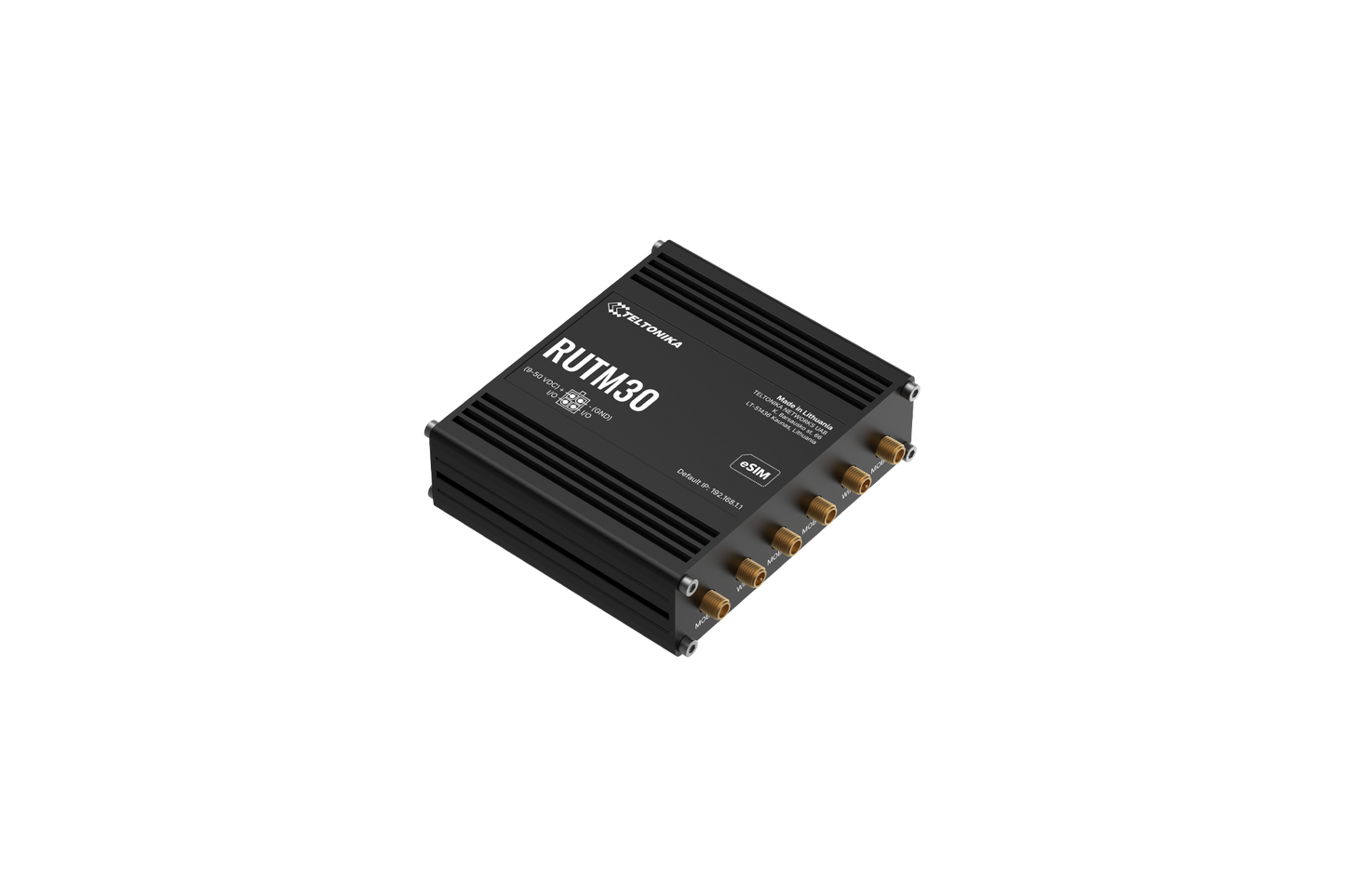

- 4 x SMA 5G antenna connectors, 2 x RP-SMA Wi-Fi connectors
- Power input 9-50 VDC with reverse polarity protection, passive PoE-in (Mode B)
- Operating temperature -40 to +75 degrees C, IP30 anodised aluminium housing
- Dimensions 100 x 30 x 93.7 mm, weight 319 g
- Mounting: DIN rail, wall mount or flat surface (kit required)
- In box: router, 18 W PSU, 4 x 5G antennas, 2 x Wi-Fi antennas, 1.5 m Ethernet cable, SIM adapter kit, hex key, quick start guide

FAQs

Q: What is included with the RUTM300000A00/RUTM300000500 bundle?
A: The bundle includes the RUTM30 router, an 18 W power supply, 4 x 5G antennas, 2 x Wi-Fi antennas, a 1.5 m Ethernet cable, a SIM adapter kit, a hex key and a quick start guide.

Q: Does the RUTM30 support both 5G SA and NSA networks?
A: Yes. It supports 5G Sub-6GHz in both SA and NSA modes, with fallback to 4G LTE Cat 19 and 3G where 5G coverage is unavailable.

Q: Can it fail over between SIM cards?
A: Yes. It has two Mini SIM slots plus an eSIM, and automatic failover can be triggered by signal strength, data limit or roaming status.

Q: How many Ethernet ports does it have and at what speed?
A: It has two RJ45 10/100/1000 Mbps ports, one WAN and one LAN.

Q: What mounting options are available?
A: It can be mounted on a DIN rail, on a wall or on a flat surface. A mounting kit is required.

Q: Which VPN protocols does the RUTM30 support?
A: RutOS supports OpenVPN, IPsec, WireGuard, L2TP, ZeroTier, Tailscale and DMVPN.
