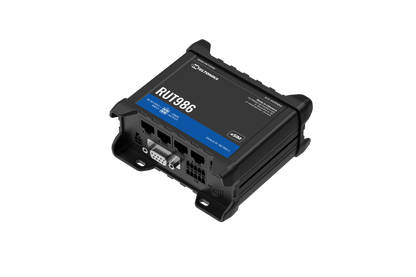

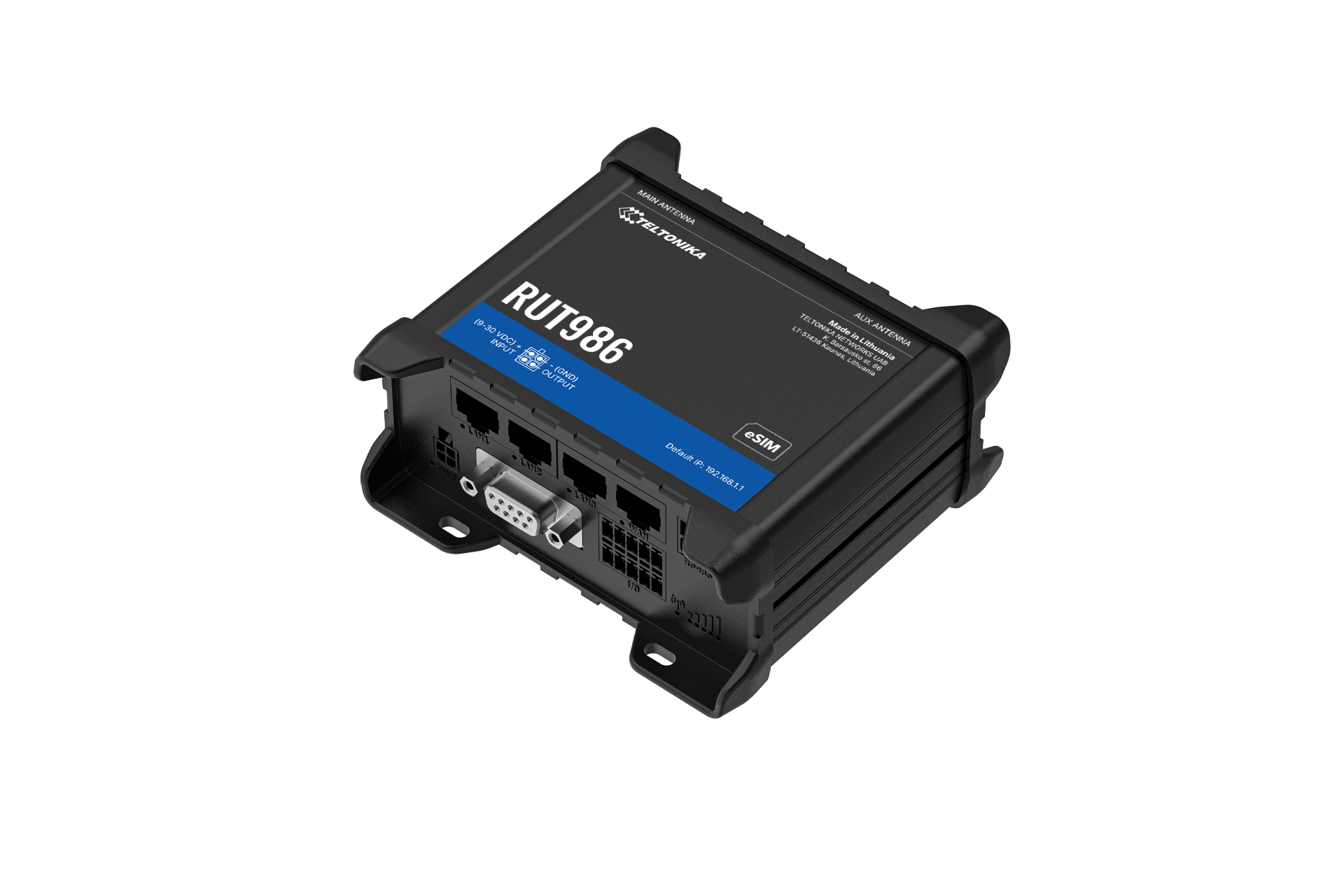

Teltonika RUT986 | Industrial Global LTE Cat 4 Router, Dual SIM + eSIM

Authorised Teltonika Partner

SKU:RUT986

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The RUT986 is a globally certified industrial LTE Cat 4 router built for SCADA, energy, utilities, and industrial IoT deployments across Australia and worldwide. Powered by a Telit modem covering 18 LTE bands — including Band 28 (APT 700) for Australian carrier compatibility — it delivers 150 Mbps download and 50 Mbps upload with automatic 3G/2G fallback. Dual physical SIM slots plus an integrated eSIM with up to 7 profiles enable seamless WAN failover and load balancing, while a comprehensive I/O suite including RS232, RS485, GNSS, digital/analog inputs, and a Micro SD slot makes it a complete edge connectivity platform.

The RUT986 supports industrial protocols including Modbus TCP/RTU, DNP3, OPC UA, BACnet, and DLMS/COSEM, alongside a full VPN suite (OpenVPN, WireGuard, IPsec) and zero-touch provisioning via Teltonika RMS. Its IP30-rated aluminium enclosure operates from -40°C to +65°C and supports DIN rail, wall, or flat surface mounting — suited to harsh field environments. CE, UKCA, FCC, and ISED certified. Backed by a 2-year manufacturer warranty.

Features

- Single globally certified SKU — covers EU, US (FirstNet), Asia-Pacific (Band 28/APT 700), and more
- Dual SIM + eSIM with automatic WAN failover and load balancing across all three SIM options
- eSIM Bootstrap provisioning with remote profile management via Teltonika RMS
- Industrial protocol stack: Modbus TCP/RTU, DNP3, OPC UA, BACnet, DLMS/COSEM
- RS232/RS485 serial over IP, Modbus gateway, and NTRIP client
- Multi-constellation GNSS with geofencing, NMEA 0183, NTRIP, and TAVL tracking
- Micro SD local data logging — retains data during cellular outages
- Full VPN suite: OpenVPN, WireGuard, IPsec
- Zero-touch deployment and centralised remote management via Teltonika RMS
- Ruggedised aluminium enclosure rated -40°C to +65°C for harsh field environments
- 2-year manufacturer warranty

Warranty

2 Year

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Cellular: 4G LTE Cat 4 — 150 Mbps down / 50 Mbps up (Telit modem)
- LTE bands: B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B14, B18, B19, B20, B25, B26, B28 (18 bands)
- 3G UMTS: 7 bands | 2G GSM: 4 bands fallback

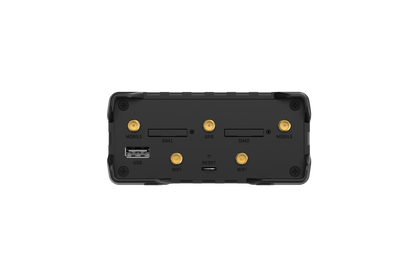

- SIM: 2x Mini SIM (2FF) + integrated eSIM (up to 7 profiles, Bootstrap provisioning)

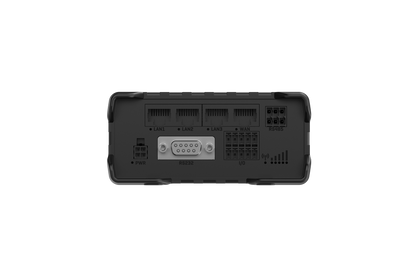

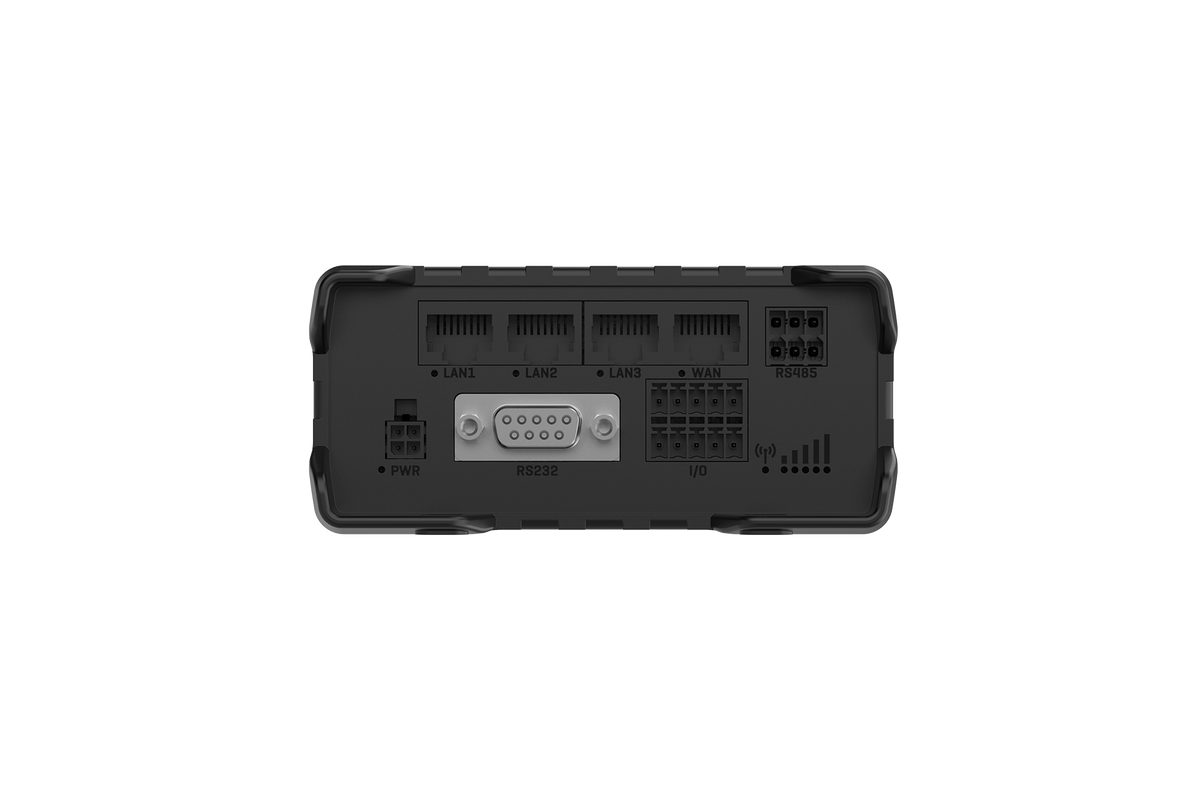

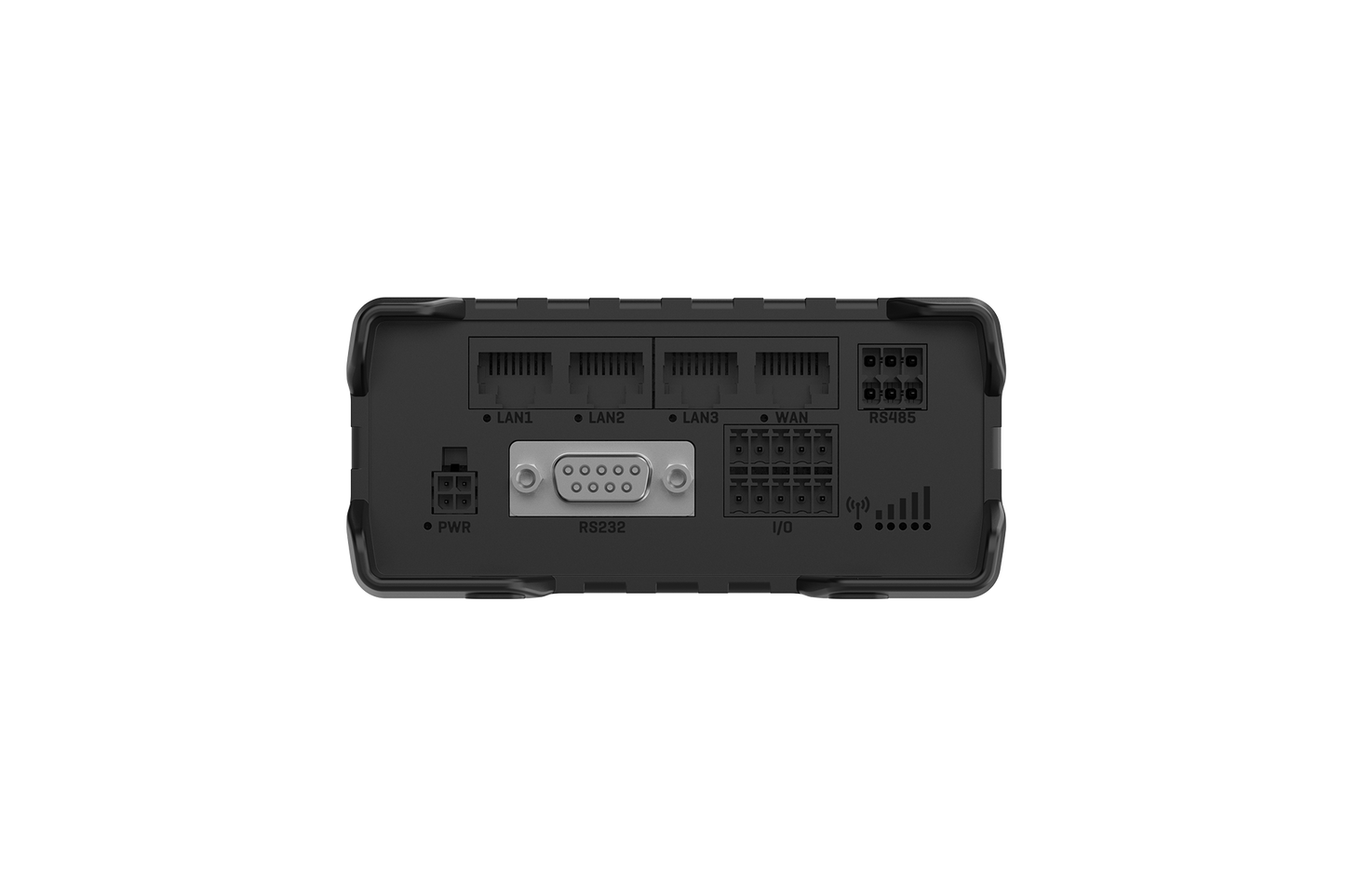

- Ethernet: 4x RJ45 (1x WAN, 3x LAN), 10/100 Mbps
- Serial: RS232 (DB9, RTS/CTS) and RS485 (full/half duplex), 300–115200 baud
- GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS multi-constellation
- I/O: 4x Digital/Analog Inputs, 3x Outputs (incl. SPST relay 40V/4A, 4–20 mA analog input)
- USB: 1x USB-A | Storage: Micro SD slot (up to 2 TB)
- Power input: 9–30 VDC (PSU included), Passive PoE input via LAN1
- Operating temperature: -40°C to +65°C
- Enclosure: IP30 aluminium | Dimensions: 110 x 50 x 100 mm | Weight: ~294 g
- Mounting: DIN rail, wall, flat surface
- OS: RutOS
- Certifications: CE, UKCA, FCC, ISED

FAQs

Q: Is the RUT986 compatible with Australian 4G networks including Telstra and Optus?
A: Yes. The RUT986 supports Band 28 (APT 700 MHz), which is the primary regional coverage band used by Telstra, Optus, and Vodafone in Australia. It covers 18 LTE bands in total, making it one of the most broadly compatible industrial routers available for Australian deployments.

Q: What industrial protocols does the RUT986 support?
A: The RUT986 supports Modbus TCP and RTU, DNP3, OPC UA, BACnet, and DLMS/COSEM out of the box via RutOS. It can also function as a Modbus gateway over RS232/RS485, making it well-suited for SCADA, energy metering, and industrial automation systems.

Q: How does the dual SIM and eSIM failover work?
A: The RUT986 has two physical Mini SIM slots and an integrated eSIM supporting up to 7 carrier profiles. RutOS automatically switches between SIM options based on connectivity health, signal strength, or data quotas. This provides highly resilient WAN connectivity without manual intervention — critical for remote or unattended deployments.

Q: Can the RUT986 be managed remotely at scale?
A: Yes. The RUT986 integrates with Teltonika RMS (Remote Management System), which supports zero-touch provisioning, remote configuration, firmware updates, eSIM profile management, and real-time monitoring across large device fleets — ideal for utilities, energy, and IoT infrastructure operators.

Q: What are the environmental and mounting options for the RUT986?
A: The RUT986 operates across -40°C to +65°C in an IP30-rated aluminium enclosure. It supports DIN rail, wall mount, and flat surface mounting, making it suitable for switchboards, control panels, and field enclosures in industrial and outdoor cabinet deployments.
