Teltonika RUT145000000 | RUT145 Industrial Router, 2.4GHz Wi-Fi, RS485, DIN Rail, No PSU

Name: Teltonika RUT145000000 | RUT145 Industrial Router, 2.4GHz Wi-Fi, RS485, DIN Rail, No PSU
Brand: Teltonika
SKU: RUT145000000
Price: 116.38 AUD
Availability: InStock

Authorised Teltonika Partner

SKU:RUT145000000

In stock:7

$116.38 inc. GST

$105.80 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

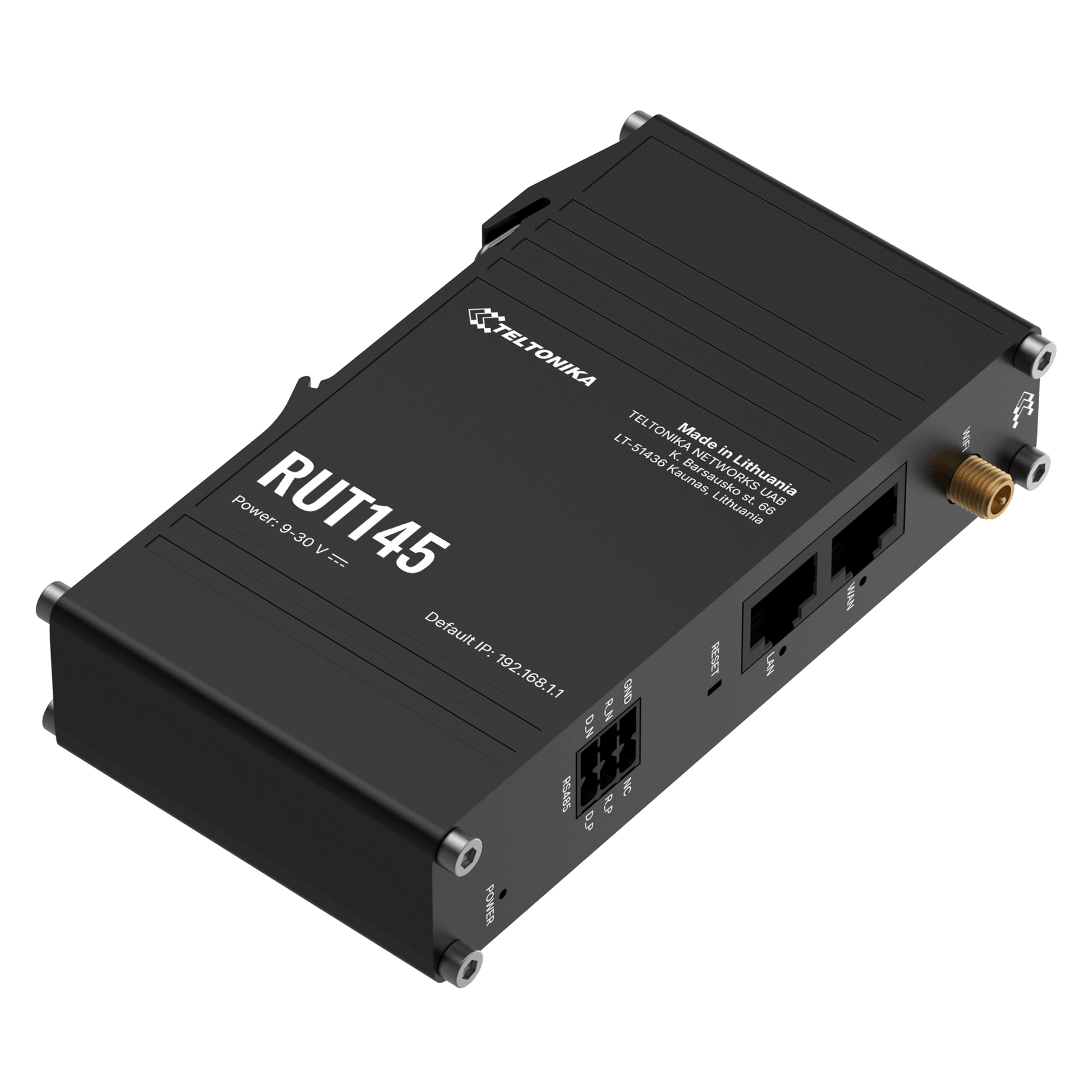

The Teltonika RUT145 is a compact industrial router with a native RS485 serial interface, two Fast Ethernet ports and 2.4GHz Wi-Fi 4. It bridges serial field devices such as meters, PLCs and sensors onto IP networks, making it well suited to industrial data collection and control cabinet deployments. This EU variant ships with an integrated DIN rail bracket and the power supply is excluded. It has no cellular modem.

Running RutOS, the RUT145 supports firewall, VPN and VLAN functions, and can operate as a Wi-Fi access point or station with up to 50 simultaneous clients. It supports Modbus, DLMS, DNP3 and OPC UA serial-to-IP bridging and is compatible with Teltonika RMS for remote management. Power is supplied from 9-30 V DC or via passive PoE over the LAN port.

Features

- Bridges RS485 serial devices to IP networks, with support for Modbus, DLMS, DNP3 and OPC UA
- Remote management through Teltonika RMS
- RutOS with firewall, VPN and VLAN support
- Wireless mesh (802.11s), fast roaming (802.11r), 802.11v and 802.11k support
- Passive PoE power option over the LAN port
- Network isolation for end devices
- Rugged compact aluminium enclosure suited to control cabinets

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Wi-Fi: IEEE 802.11b/g/n (Wi-Fi 4), 2.4GHz single-band, AP and STA modes, up to 50 simultaneous clients

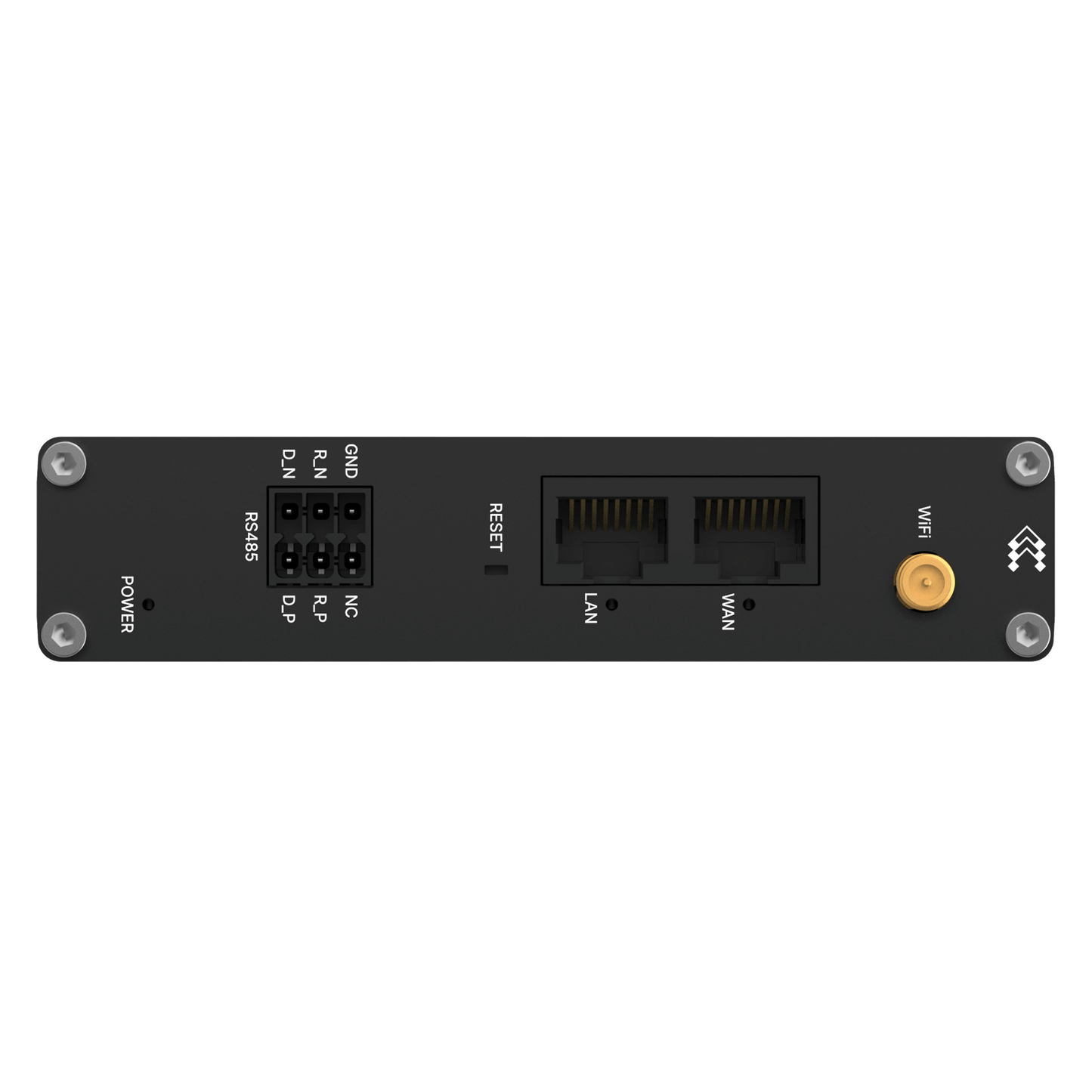

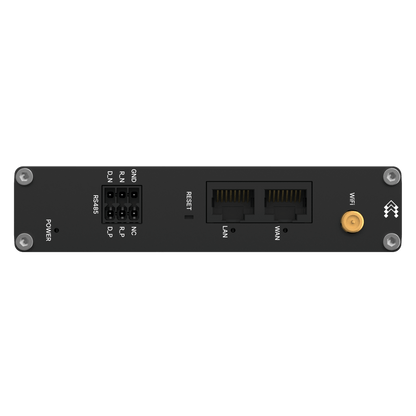

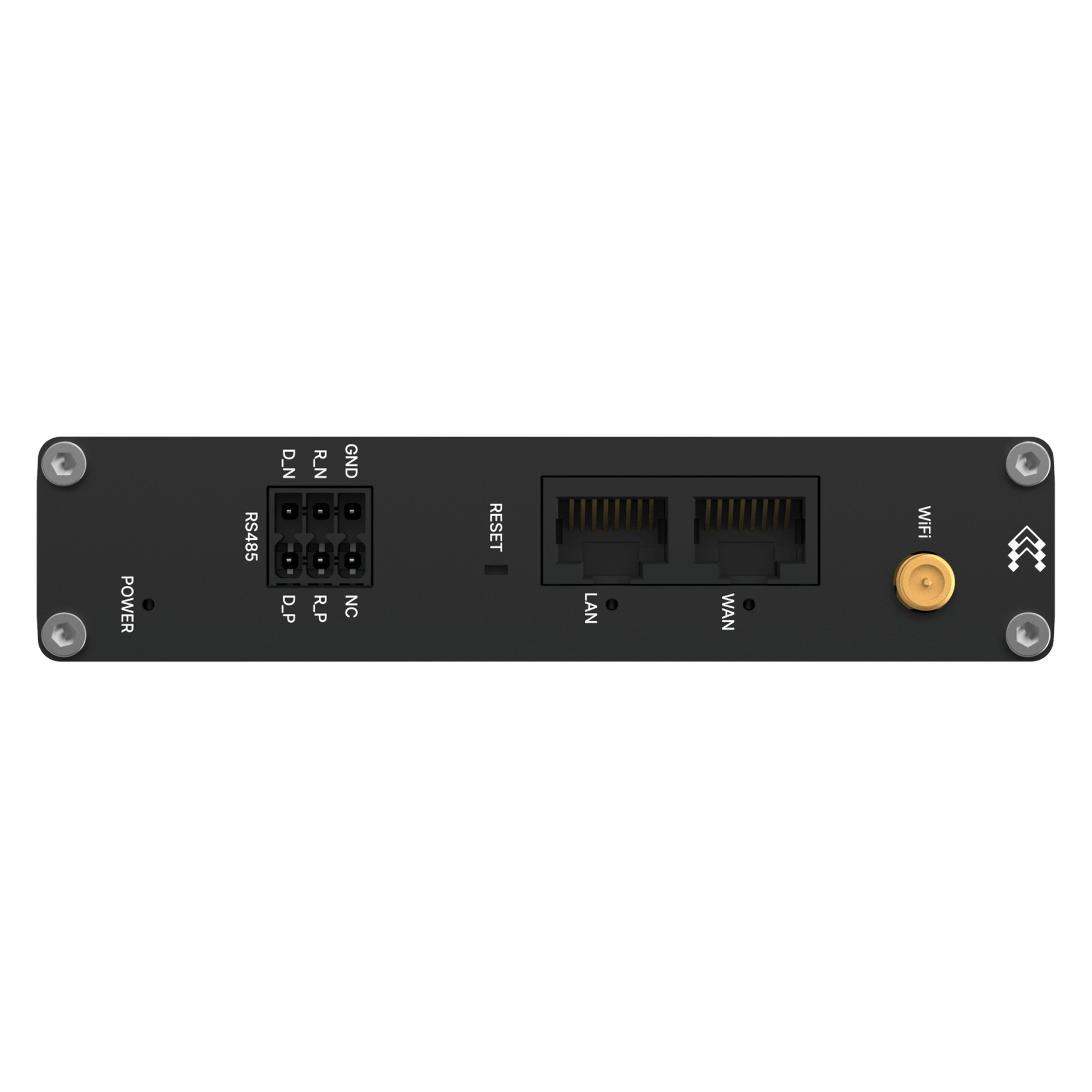

- Ethernet: 2 x RJ45 10/100 Mbps ports (WAN/LAN) with auto MDI/MDIX
- Serial: 1 x RS485 on a 6-pin terminal block (2-wire or 4-wire)
- CPU: Mediatek 580 MHz MIPS 24KEc
- Memory: 128 MB DDR2 RAM, 16 MB serial NOR flash
- Antenna: 1 x RP-SMA connector for Wi-Fi

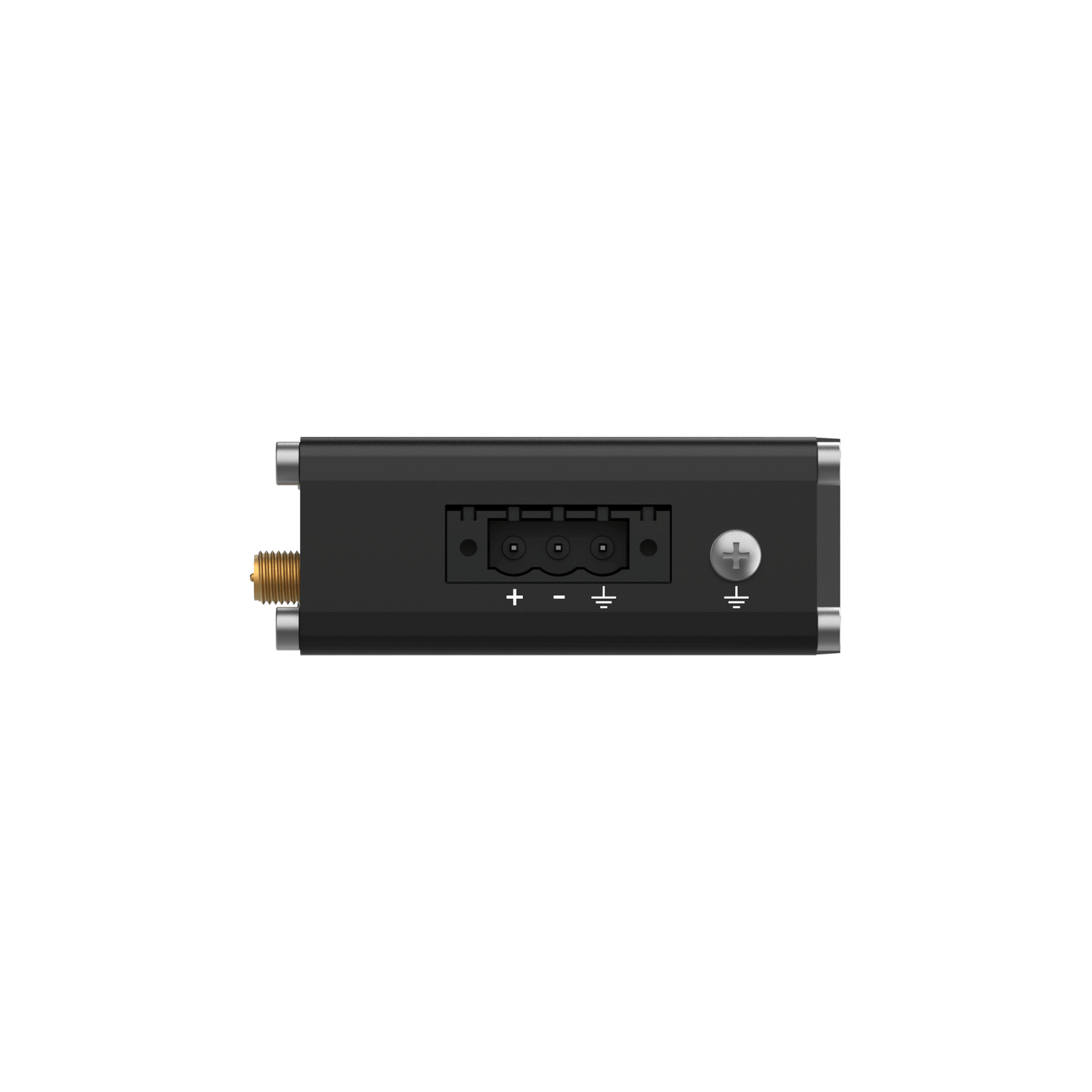

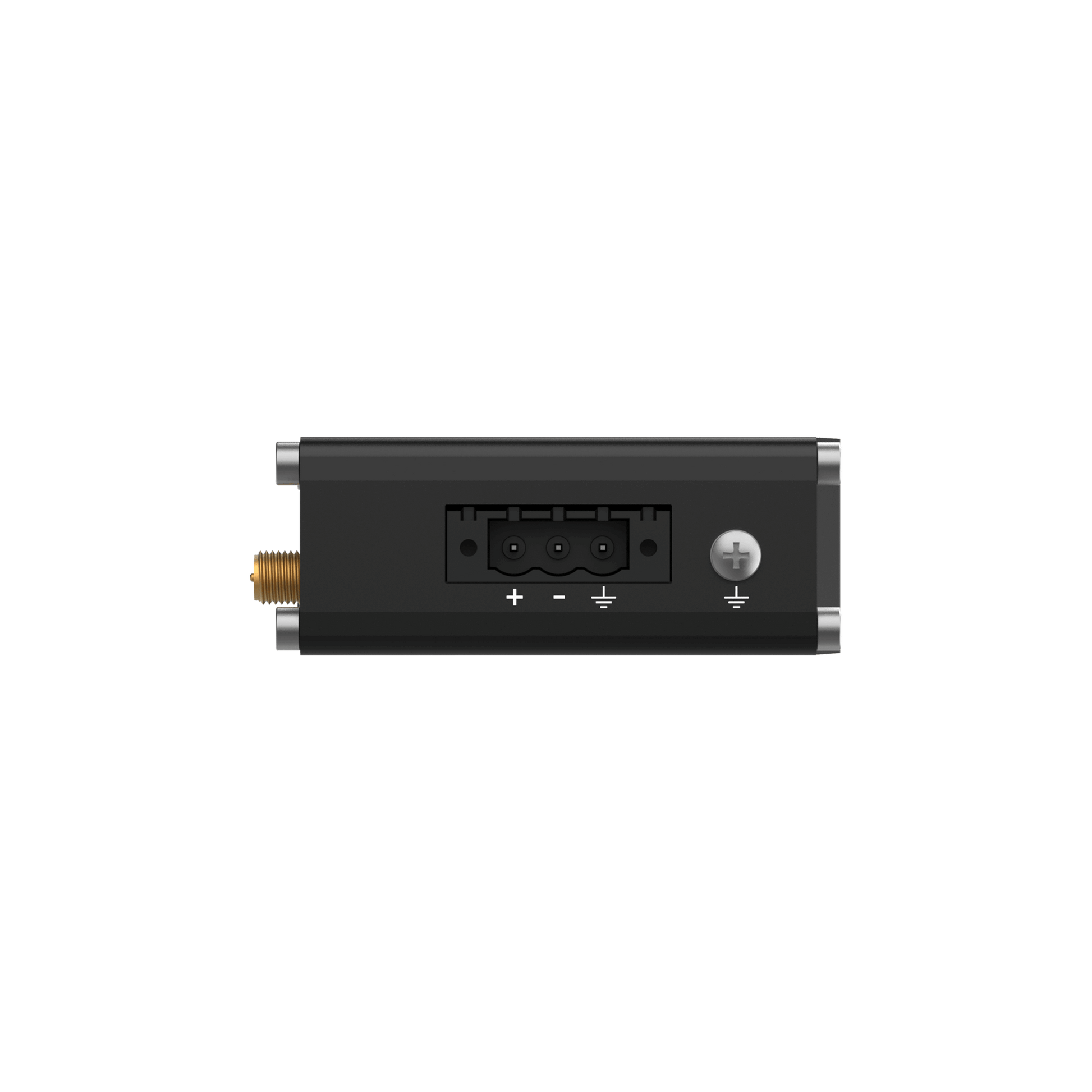

- Power: 9-30 V DC via 3-pin connector, with passive PoE over spare pairs (not compatible with IEEE 802.3af/at/bt)
- Power consumption: under 1 W idle, 2 W max
- Operating temperature: -40 to 75 °C
- Dimensions: 113.1 x 68.6 x 25 mm; weight 140 g
- Mounting: integrated DIN rail bracket
- Operating system: RutOS (OpenWrt-based)
- Certifications: CE/RED, UKCA, CB, RCM, FCC, IC, EAC, UCRF, WEEE
- Power supply excluded

FAQs

Q: Does the RUT145 have a cellular modem?
A: No. The RUT145 is an Ethernet and Wi-Fi router with a native RS485 serial interface and has no cellular modem.

Q: Is a power supply included with RUT145000000?
A: No. This variant excludes the power supply. The router accepts 9-30 V DC via its 3-pin connector, or passive PoE over the LAN port.

Q: Can the RUT145 be powered over standard PoE?
A: It supports passive PoE over the spare pairs of the Ethernet port. It is not compatible with IEEE 802.3af/at/bt PoE, so use a compatible passive PoE injector.

Q: Which serial protocols can the RS485 port work with?
A: The RS485 interface supports serial-to-IP bridging for protocols including Modbus, DLMS, DNP3 and OPC UA, in 2-wire or 4-wire configuration.

Q: How do I mount the RUT145 in a control cabinet?
A: The router includes an integrated DIN rail bracket, so it can be mounted directly on a DIN rail inside a cabinet.

Q: Can the RUT145 be managed remotely?
A: Yes. It is compatible with Teltonika RMS for remote monitoring and management of deployed devices.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
