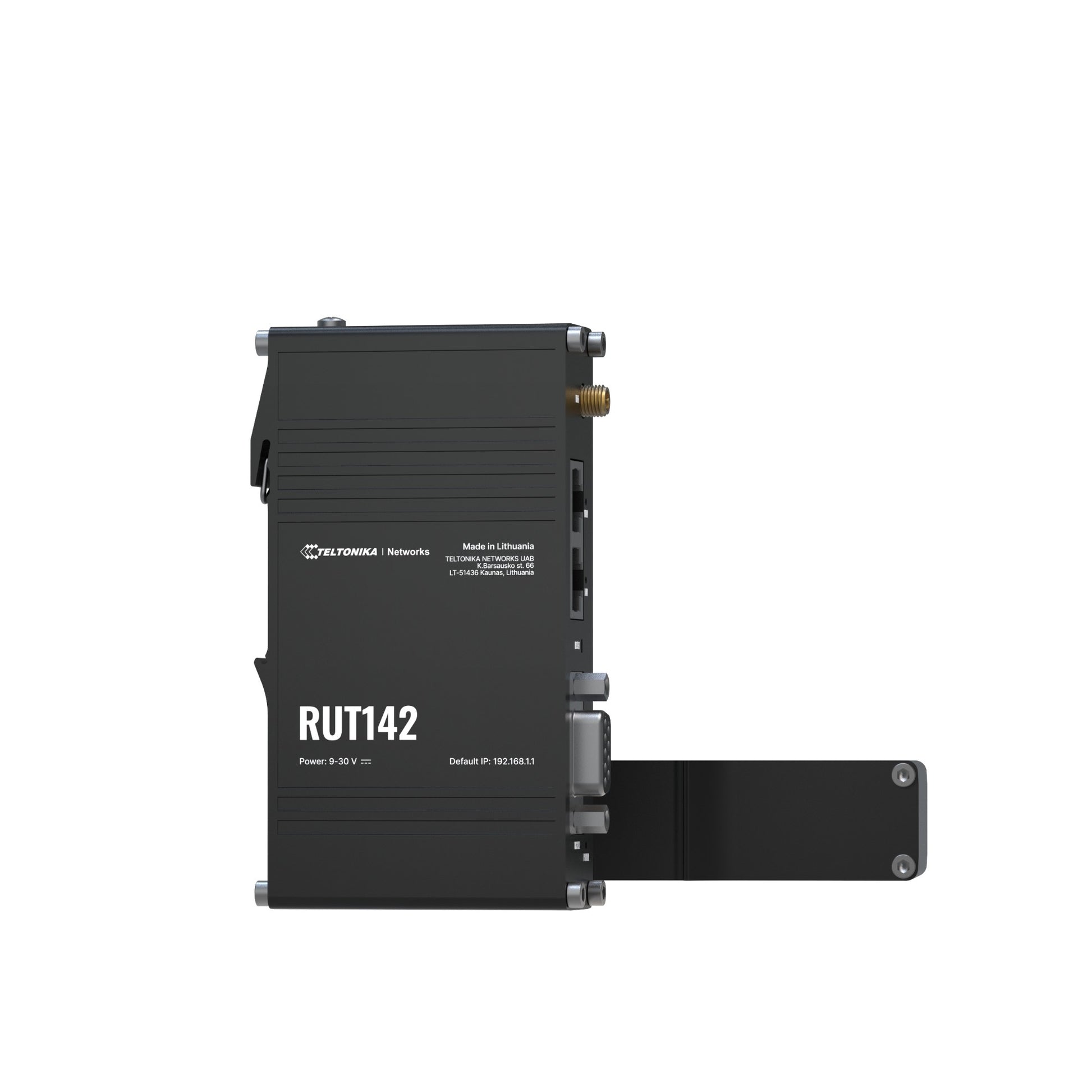

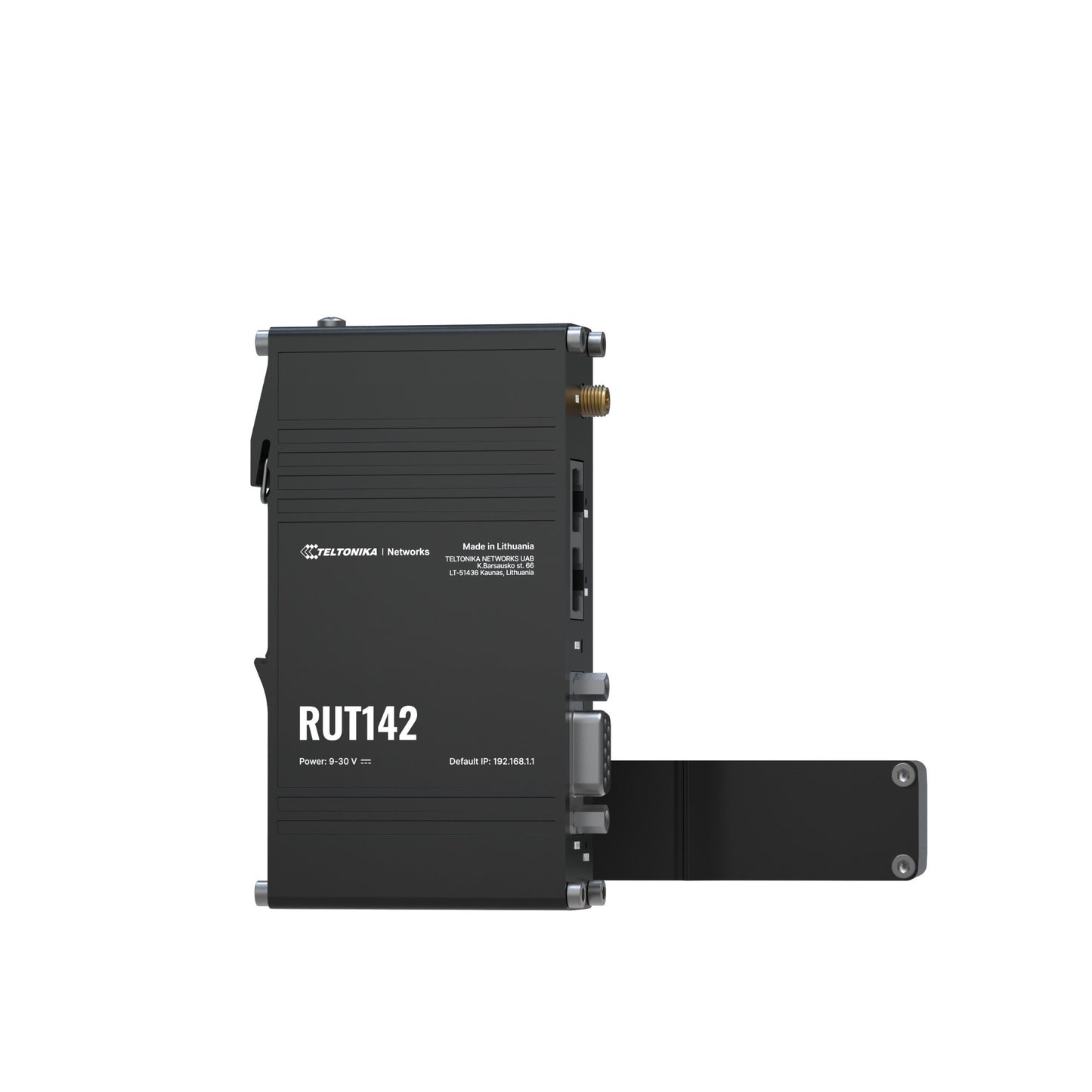

• Black teltonika rut142 industrial rs232 router with metallic connectors and mounting bracket for wired and wifi 4 use

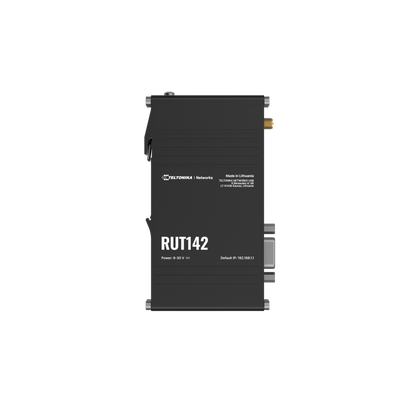

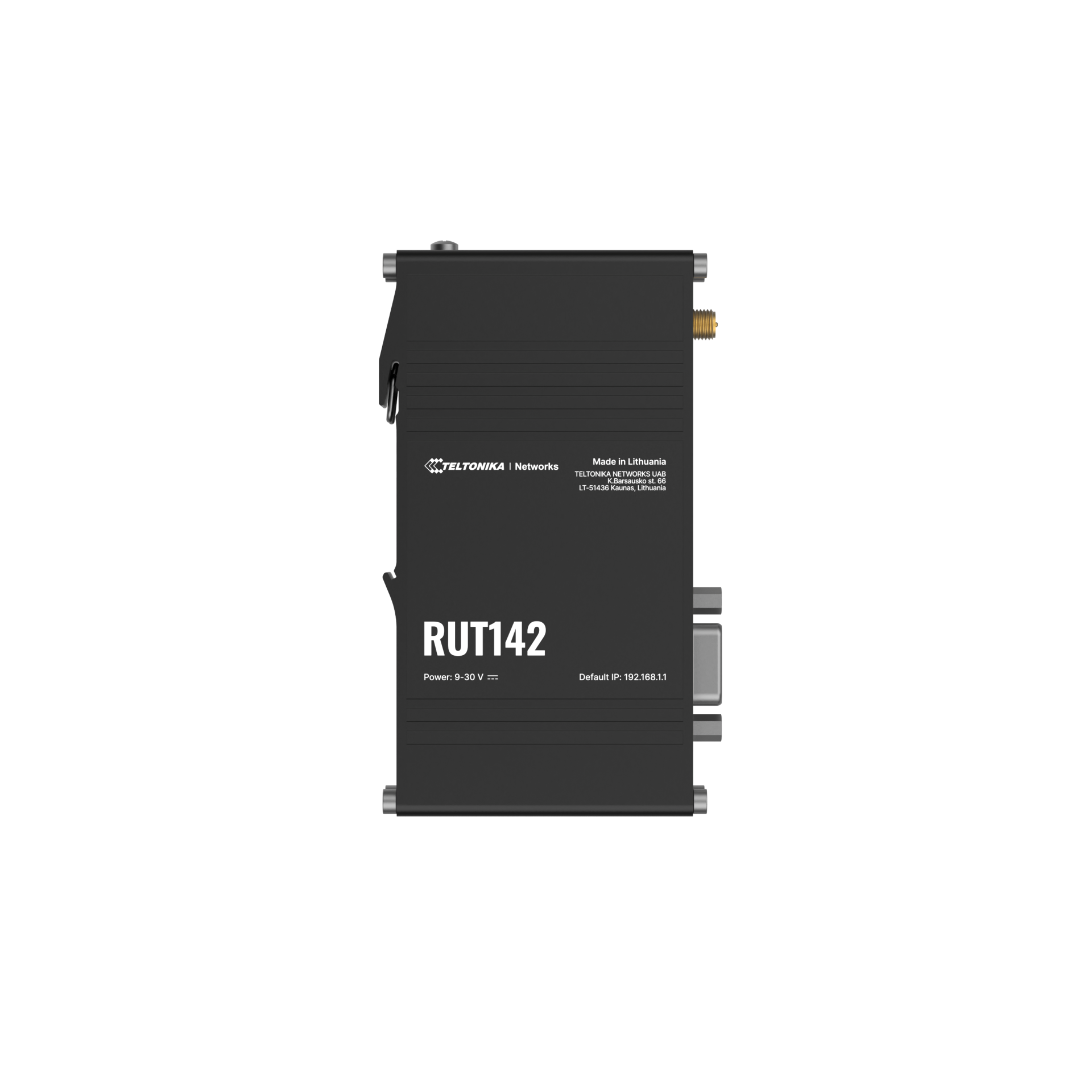

  • Black rectangular teltonika rut142 industrial rs232 router with silver edges and gold connector ports for wifi and ethernet

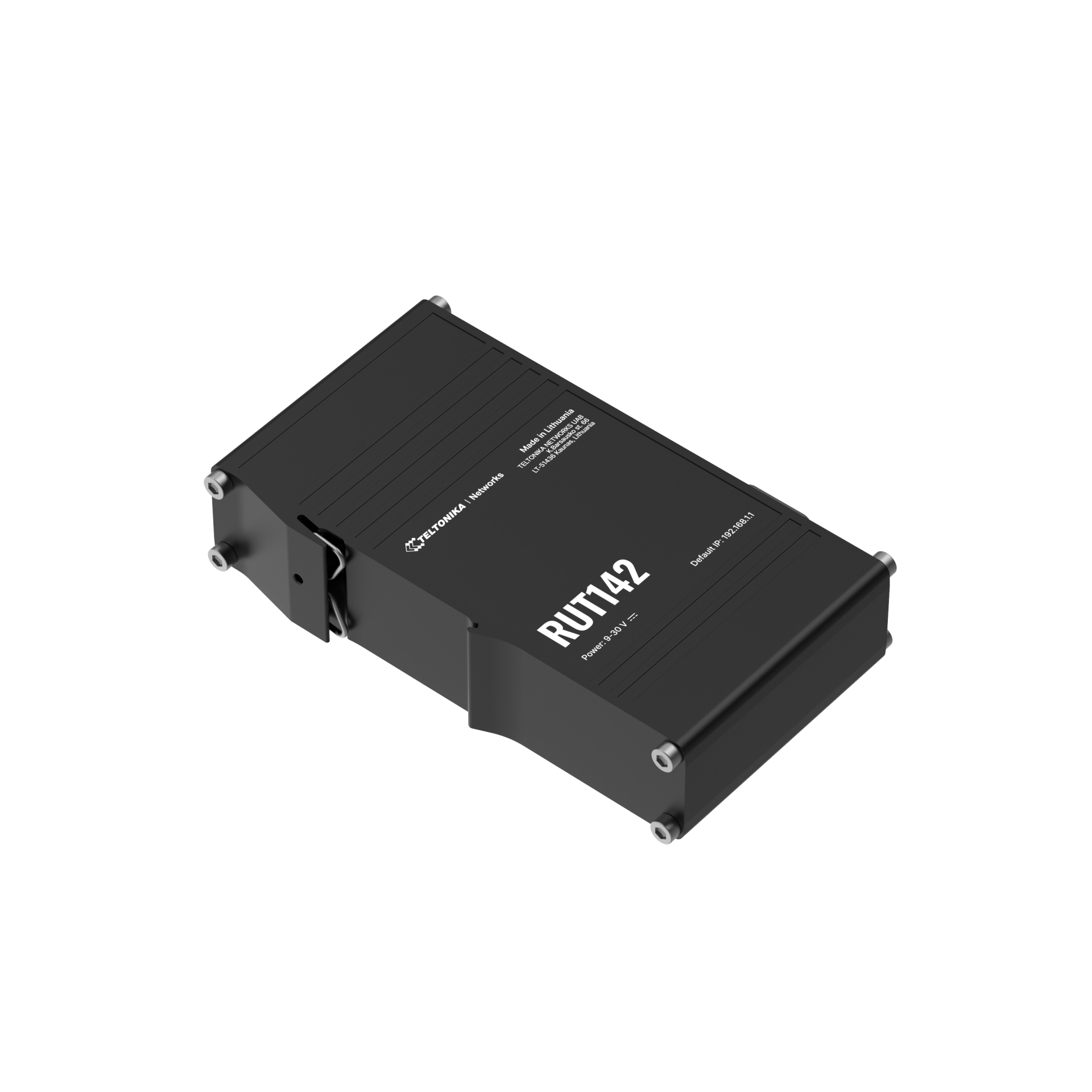

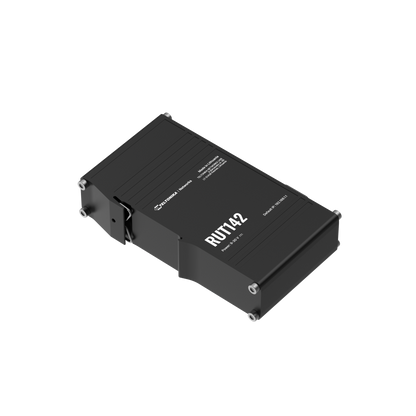

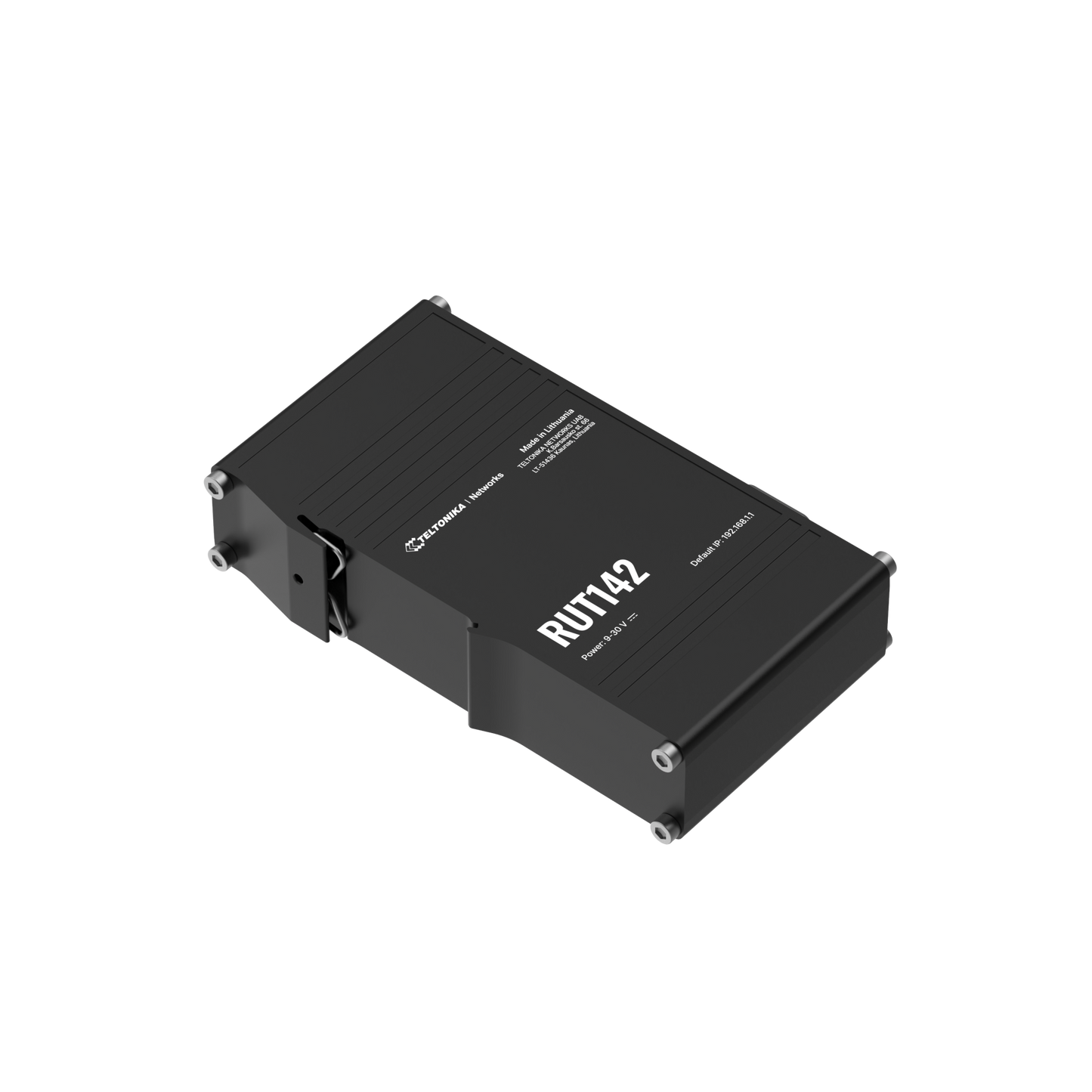

  • Black rectangular Teltonika rut42 industrial network router with rs232 and wifi 4 for stable 100M connections

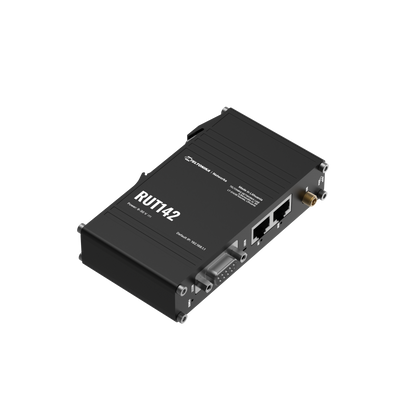

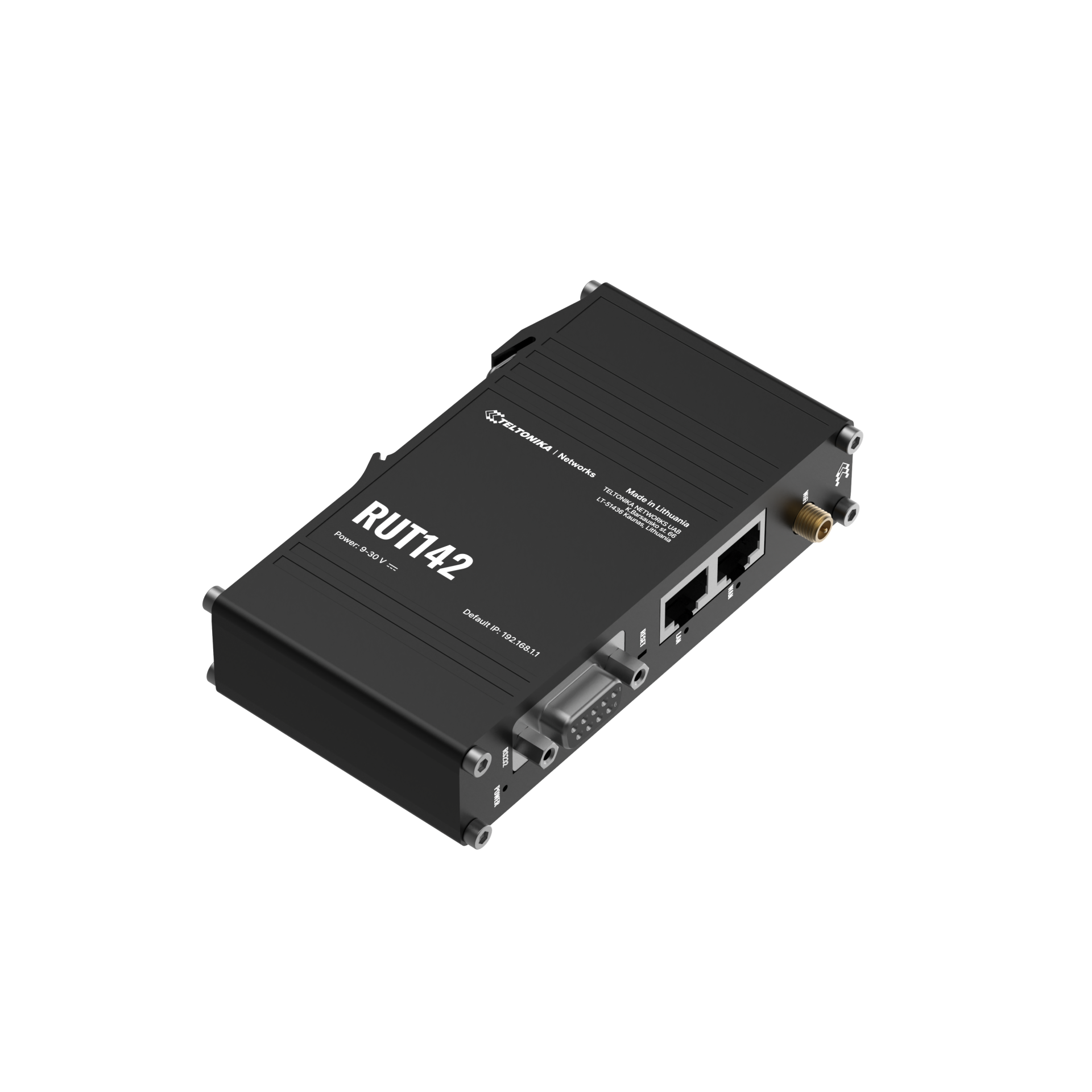

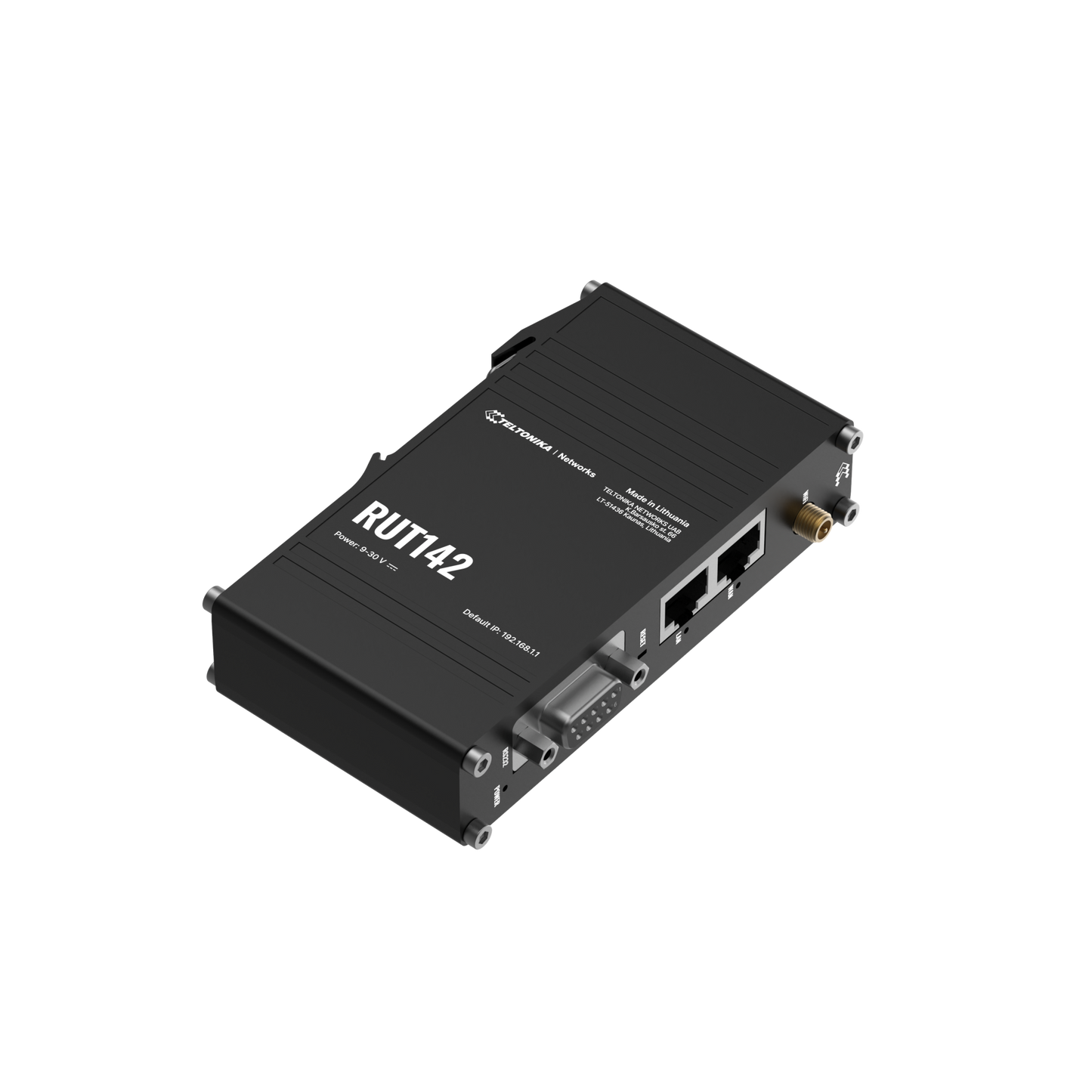

  • Black plastic teltonika rut142 industrial rs232 router back side with labeled ports and gold-colored antenna connector

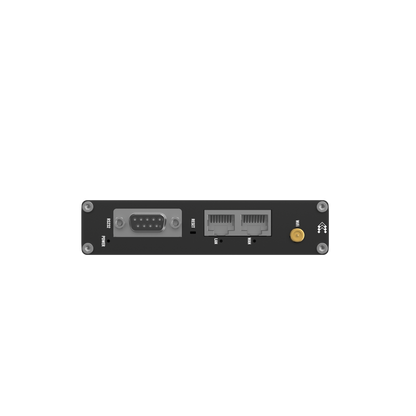

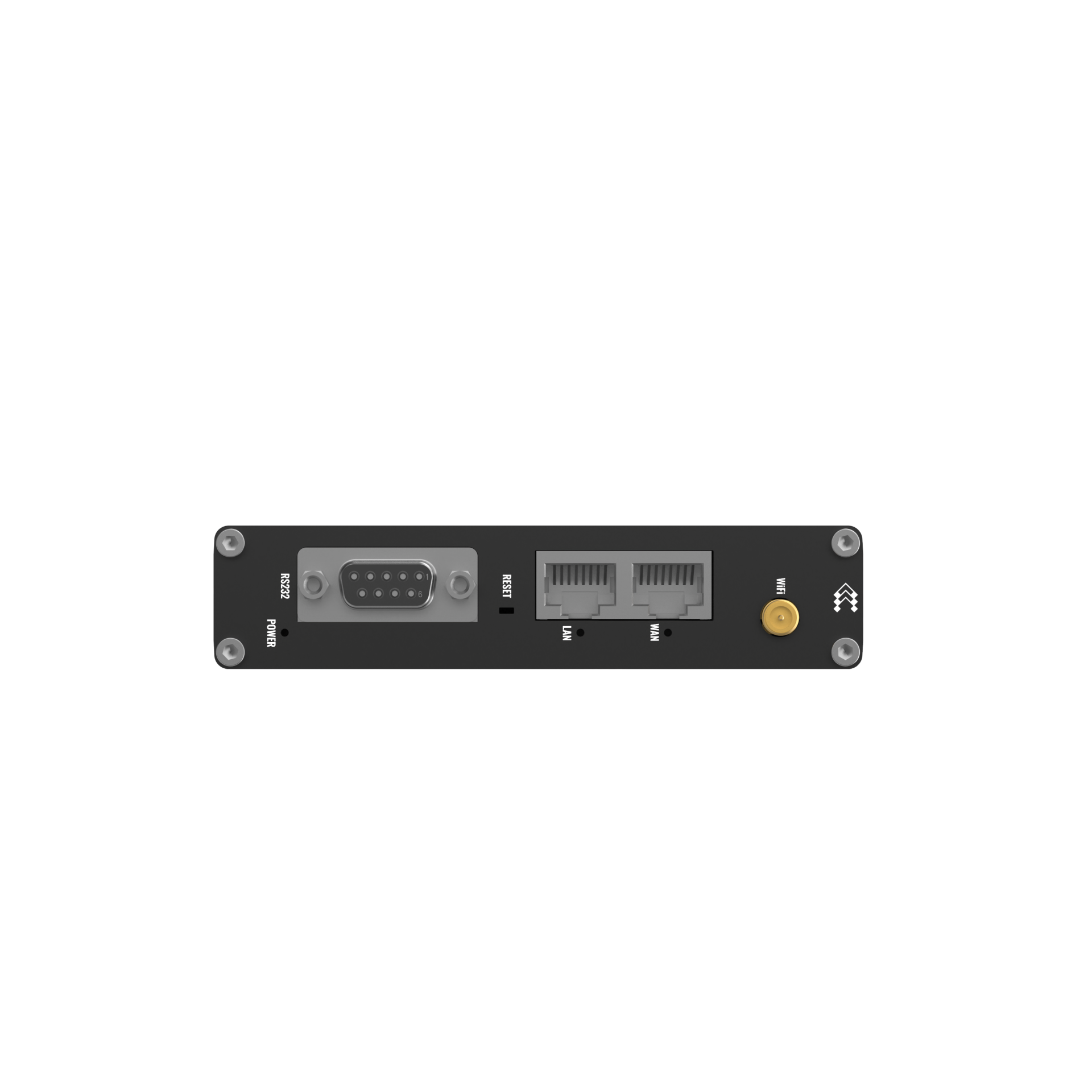

  • Black teltonika rut142 industrial rs232 router back side with db9 serial port two ethernet ports and antenna connector

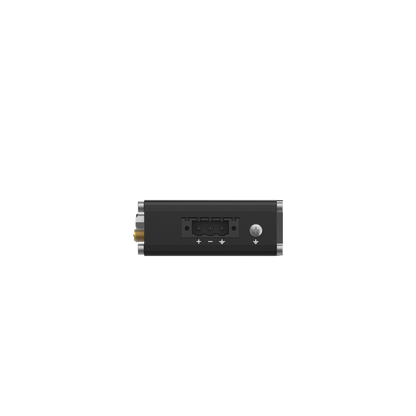

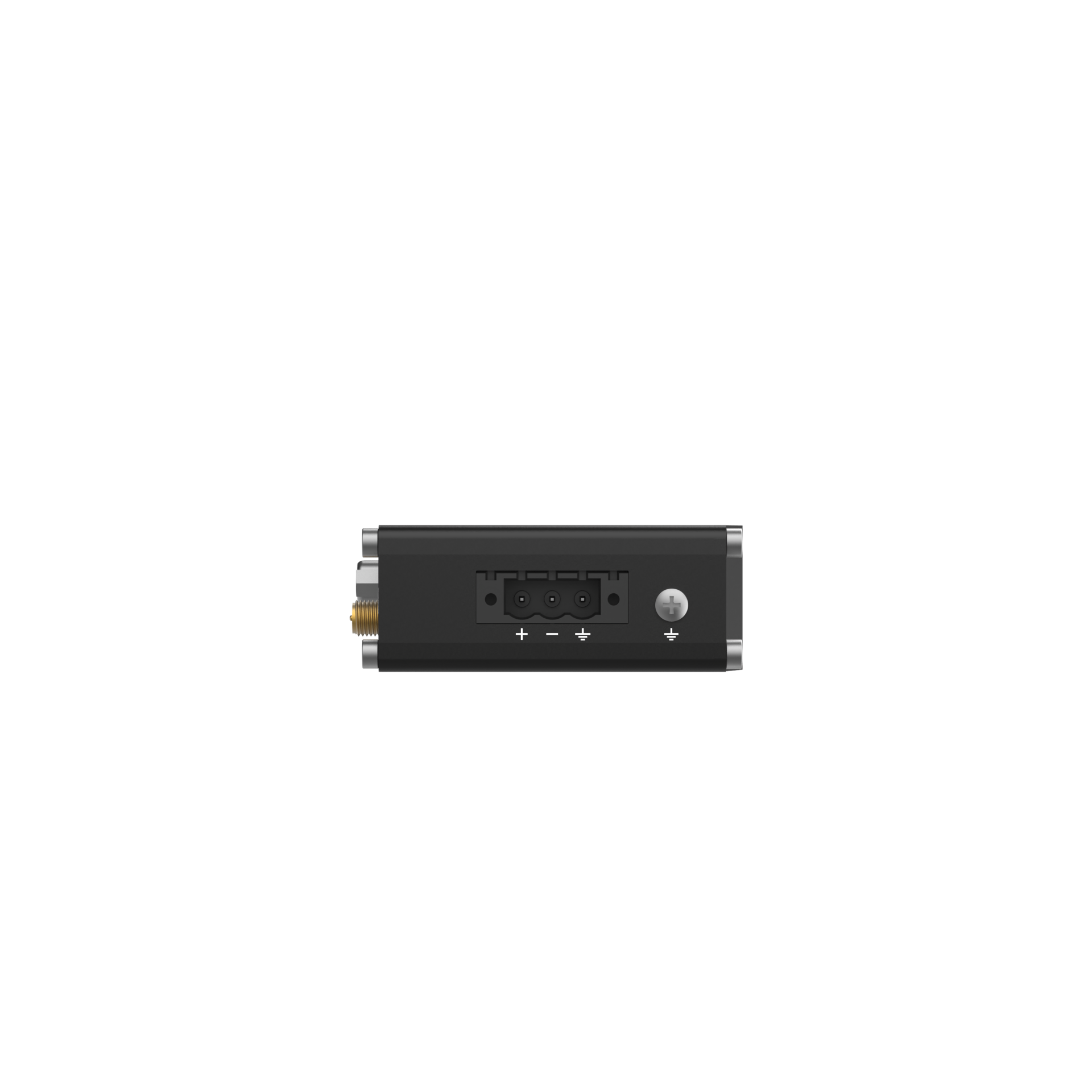

  • Black rectangular teltonika rut142 industrial rs232 router with silver edges and gold coaxial connector on left side
1 6

Teltonika

Teltonika RUT142 | RUT Series Industrial RS232 Router, Wi-Fi 4, 2x 100M

Teltonika RUT142 | RUT Series Industrial RS232 Router, Wi-Fi 4, 2x 100M

RUT142

In stock:9

$154.33 AUD
$154.33 AUD
$154.33 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The Teltonika RUT142 is a compact industrial router built for secure network isolation and legacy device connectivity in harsh industrial environments. Featuring an RS232 serial interface, two 10/100 Mbps Ethernet ports, and Wi-Fi 4 (802.11b/g/n), it enables seamless integration of serial devices into modern IP networks without costly hardware replacement. Running RutOS, it supports a comprehensive suite of industrial protocols including Modbus, DLMS, DNP3, and OPC UA — making it ideal for automation panels, SCADA systems, and remote monitoring deployments.

The RUT142 ships with an integrated DIN rail bracket and industrial 3-pin power connector (9–30 V DC), allowing direct panel or cabinet installation in space-constrained environments. Its robust aluminium housing is rated IP30 and operates from -40°C to +75°C. VPN tunnelling via OpenVPN, IPsec, and WireGuard, combined with TACACS+, RADIUS, and X.509 certificate authentication, ensures enterprise-grade security at the edge. Full remote management is available via Teltonika RMS, SNMP v1/v2/v3, and MQTT. Available now at iptrading.com.au — competitive prices and local support.

Features

- RutOS operating system with advanced security, routing, and management capabilities
- Industrial protocol support: Modbus, DLMS, DNP3, OPC UA for automation and SCADA integration
- RS232 serial interface enables legacy serial device connectivity over IP networks
- Integrated DIN rail bracket for fast, tool-minimal installation in panels and cabinets
- Industrial 3-pin power connector with 9–30 V DC input range and grounding support
- Network isolation architecture for enhanced end-device security and segmentation
- Multi-protocol VPN: OpenVPN, IPsec, WireGuard, PPTP, GRE, L2TP
- Firewall with DMZ, NAT, NAT-T, DDoS prevention, and port scan prevention
- Port-based and tag-based VLAN separation
- Remote management via Teltonika RMS, Web UI (HTTP/HTTPS), SSH, SNMP v1/v2/v3, TR-069, MQTT, JSON-RPC
- IoT platform integrations: Azure IoT Hub, Cumulocity, Cloud of Things, ThingWorx
- Authentication: TACACS+, RADIUS, X.509 certificate support
- Firmware-over-the-air (FOTA) updates for remote maintenance
- Operates across -40°C to +75°C — suited to extreme industrial environments

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- WAN/LAN: 2 x 10/100 Mbps Ethernet (1 x WAN, 1 x LAN)
- Serial Interface: RS232
- Wi-Fi: IEEE 802.11b/g/n (Wi-Fi 4), 2.4 GHz
- Wi-Fi Security: WPA3-SAE, WPA3-EAP, WPA2-Enterprise-PEAP, WPA2-PSK, OWE
- CPU: Qualcomm Atheros, 650 MHz
- RAM: 64 MB
- Flash Memory: 16 MB
- Power Input: 9–30 V DC (3-pin industrial connector, PSU not included)
- Operating Temperature: -40°C to +75°C
- Ingress Protection: IP30
- Dimensions: 113.1 x 25 x 68.6 mm
- Weight: 149.2 g
- Mounting: Integrated DIN rail bracket
- Housing: Robust aluminium
- WAN Protocols: DHCP, Static IP, PPPoE
- VPN: OpenVPN, IPsec, WireGuard, PPTP, GRE, L2TP
- Certifications: CE, FCC, RoHS, EN IEC 62368-1:2020+A11:2020

FAQs

Q: What is the RS232 interface on the RUT142 used for?
A: The RS232 interface allows the RUT142 to connect legacy serial devices — such as PLCs, meters, or SCADA equipment — directly to an IP network. This enables remote data collection and control without replacing existing serial hardware.

Q: Which industrial protocols does the RUT142 support?
A: The RUT142 supports Modbus, DLMS, DNP3, and OPC UA via its RutOS operating system, making it compatible with a wide range of industrial automation, energy metering, and SCADA applications.

Q: Can the RUT142 be managed remotely?
A: Yes. The RUT142 integrates with Teltonika's Remote Management System (RMS) for centralised remote monitoring and configuration. It also supports SNMP v1/v2/v3, SSH, MQTT, TR-069, and JSON-RPC for integration with third-party management platforms.

Q: How is the RUT142 powered and mounted?
A: The RUT142 uses an industrial 3-pin power connector accepting 9–30 V DC input (PSU not included). It features an integrated DIN rail bracket for direct installation inside electrical panels or control cabinets, with no additional mounting hardware required.

Q: Is the RUT142 suitable for outdoor or harsh environment deployments?
A: The RUT142 is rated IP30 and built with robust aluminium housing, supporting an operating temperature range of -40°C to +75°C. While rated IP30 (suitable for enclosed indoor industrial environments), its thermal tolerance makes it well suited for demanding factory, utility, and automation cabinet installations.

Q: Can I purchase the Teltonika RUT142 in Australia?
A: Yes. The RUT142 is available now through IP Trading at iptrading.com.au, with competitive pricing and local Australian support. Contact our team for volume pricing, compatibility advice, or to discuss deployment requirements.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
