Teltonika PR1KCN40 | 5G Mobile + GNSS Combo SMA Antenna, 4 dBi, 40 dB LNA

Name: Teltonika PR1KCN40 | 5G Mobile + GNSS Combo SMA Antenna, 4 dBi, 40 dB LNA
Brand: Teltonika
SKU: PR1KCN40
Price: 228.97 AUD
Availability: InStock

Authorised Teltonika Partner

SKU:PR1KCN40

In stock:24

$228.97 inc. GST

$208.15 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

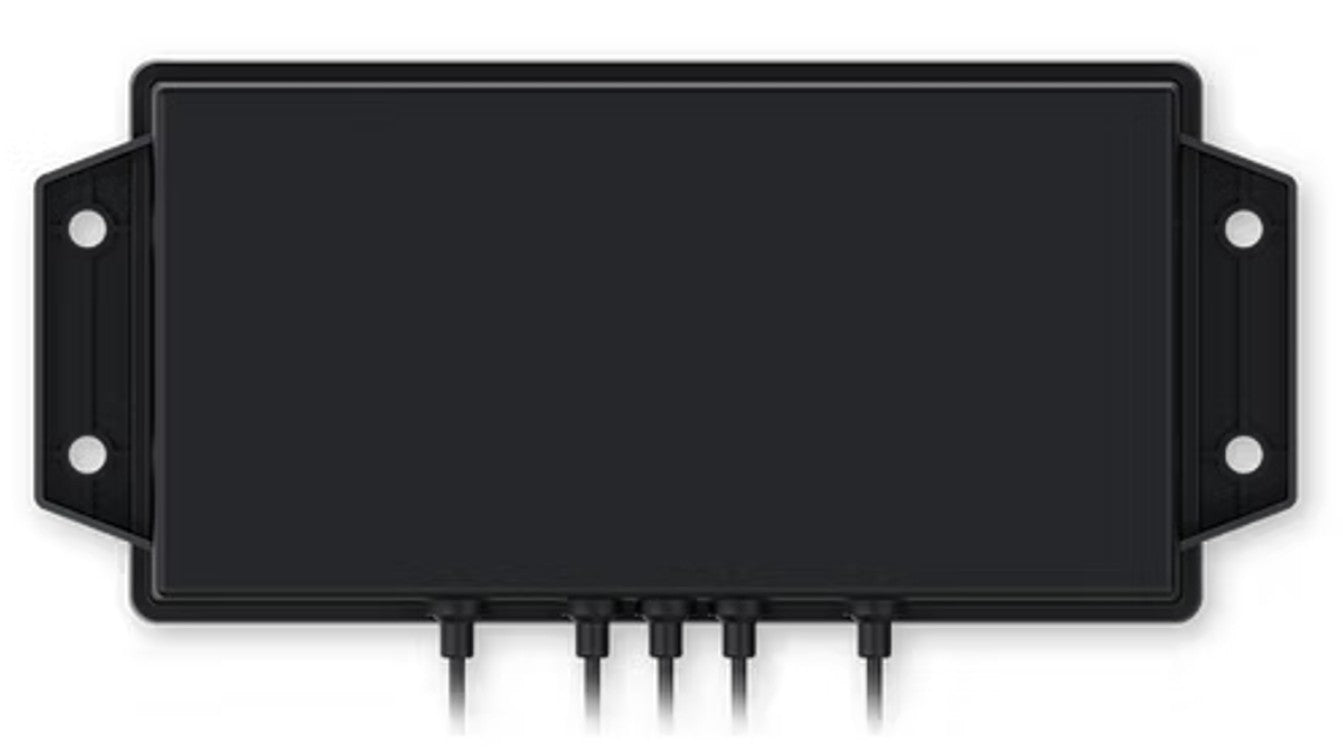

The Teltonika PR1KCN40 is a 5G combo antenna combining mobile cellular and active GNSS reception in a single unit, connected via SMA Male connectors. Covering 617–960, 1710–2690, and 2900–4200 MHz for 5G sub-6GHz mobile bands, plus 1164–1300 and 1559–1610 MHz for GNSS, it delivers 4.0 dBi mobile gain and a 40 ± 2 dB LNA gain for precise satellite positioning. Designed specifically for Teltonika 5G routers such as the RUTX50 and TRB500, it is an ideal upgrade for IoT, M2M, and fleet tracking deployments requiring simultaneous cellular data and GNSS location services.

The GNSS element features Right-Hand Circular Polarisation (RHCP) for optimal satellite signal acquisition, with a low V.S.W.R of ≤2.0 and a supply voltage range of 3–12 VDC to suit varied installations. The mobile element's 50 Ω impedance and linear polarisation ensure reliable 5G and LTE connectivity across challenging environments.

Features

- Combined 5G mobile cellular and active GNSS antenna in a single unit — reduces cabling complexity
- Supports 5G sub-6GHz frequency bands across global carrier frequencies
- Active GNSS element with integrated 40 dB LNA for enhanced satellite signal sensitivity
- RHCP polarisation for optimal multi-constellation GNSS signal reception
- SMA Male connectors for direct compatibility with Teltonika 5G router antenna ports
- Compatible with Teltonika RUTX50 and TRB500 5G routers
- Suited to IoT, M2M, fleet management, and industrial tracking applications

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Mobile Frequency Range: 617–960 / 1710–2690 / 2900–4200 MHz
- Mobile Antenna Gain: 4.0 dBi
- Mobile Polarisation: Linear
- Mobile V.S.W.R: ≤3.0
- Mobile Impedance: 50 Ω
- GNSS Frequency Range: 1164–1300 / 1559–1610 MHz
- GNSS LNA Gain: 40 ± 2 dB
- GNSS Polarisation: RHCP (Right-Hand Circular)
- GNSS V.S.W.R: ≤2.0
- GNSS Impedance: 50 Ω
- GNSS Supply Voltage: 3–12 VDC
- GNSS Current Consumption: ≤60 mA
- Connector Type: SMA Male

FAQs

Q: What Teltonika routers is the PR1KCN40 compatible with?
A: The PR1KCN40 is designed for use with Teltonika 5G routers including the RUTX50 and TRB500, which feature SMA antenna ports for both mobile and GNSS connections. It is recommended to verify your specific router model's antenna port configuration before ordering.

Q: Does this antenna support both 5G and GPS simultaneously?
A: Yes. The PR1KCN40 is a combo antenna that handles 5G mobile cellular connectivity across sub-6GHz bands and active GNSS positioning (GPS, GLONASS, etc.) simultaneously through separate internal elements and connectors — all in a single housing.

Q: What does the GNSS active LNA do and why is it important?
A: The integrated Low Noise Amplifier (LNA) boosts weak GNSS satellite signals by 40 ± 2 dB before they reach the router's receiver. This significantly improves satellite acquisition speed and positional accuracy, especially in environments where the antenna may be partially obstructed.

Q: What frequency bands does the mobile element support?
A: The mobile element covers 617–960 MHz (low band), 1710–2690 MHz (mid band), and 2900–4200 MHz (mid/high band), providing broad compatibility with Australian 5G and LTE carrier frequencies used by Telstra, Optus, and TPG.

Q: Can I purchase the Teltonika PR1KCN40 in Australia from IP Trading?
A: Yes. IP Trading (iptrading.com.au) is an Australian B2B IT hardware reseller supplying Teltonika networking accessories including the PR1KCN40. Our team can assist with compatibility queries, volume orders, and enterprise procurement requirements.

Q: Is the PR1KCN40 suitable for outdoor or vehicle-mounted deployments?
A: The PR1KCN40 is designed for IoT and M2M applications typical of fleet tracking and mobile asset management. For specific IP rating and mounting specifications suited to harsh outdoor or vehicle environments, consult the Teltonika datasheet or contact IP Trading for guidance.
