Teltonika PR1KCI49 | 5G COMBO 4x4 MIMO + GNSS Roof Antenna, 5x SMA
Teltonika PR1KCI49 | 5G COMBO 4x4 MIMO + GNSS Roof Antenna, 5x SMA
Authorised Teltonika Partner
SKU:PR1KCI49
In stock: 24
Couldn't load pickup availability
Description
Description
The Teltonika PR1KCI49 is a 5G COMBO roof-mount antenna that combines a 4x4 MIMO cellular antenna with an active GNSS antenna in a single housing. It suits vehicle and IoT installations running Teltonika 5G routers, covering 600~960 MHz and 1400~6000 MHz for mobile with a maximum gain of 4.9 dBi, plus 1164~1189 MHz and 1559~1606 MHz RHCP for GNSS.

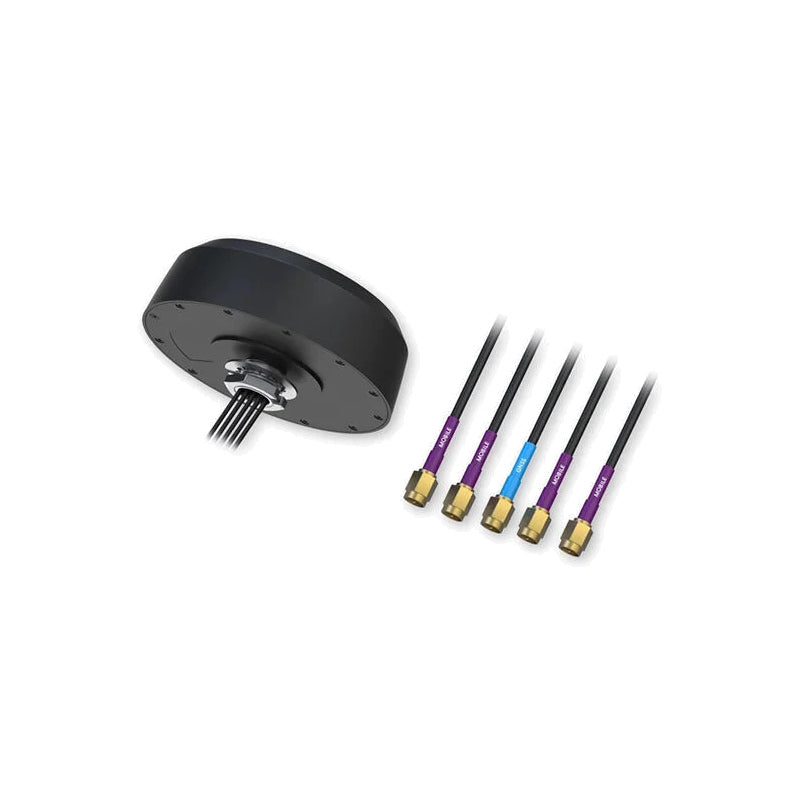

Five SMA male connectors (four mobile and one GNSS) each come with a 3 m cable, so the whole antenna is cabled in one package. Screw mounting with an M27 nut, an IP67 / IP69K rating after installation and an operating range of -40 to 85 C make it well suited to mobile and outdoor deployments.
Features
Features
- Combines 4x4 MIMO 5G/LTE and GNSS in one roof-mount housing
- Includes 3 m cables for all five connections
- Screw (M27 nut) mounting
- IP67 / IP69K rating after installation
- Wide -40 to 85 C operating range
- RoHS compliant
Warranty
Warranty
Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair
All technical data should be verified on the manufacturer data sheets.
View full details
What's the difference between add to cart, backorder & request a quote?
Add to Cart lets you purchase in-stock products immediately.
Backorder is available for items that are out of stock. Placing a backorder secures your order; contact us to confirm ETA before ordering if you need it urgently.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- 5G 4x4 MIMO mobile antenna with integrated GNSS
- Mobile frequency range: 600~960 MHz, 1400~6000 MHz
- Mobile polarisation: Linear, omni-directional pattern
- Mobile gain: max 4.9 dBi, VSWR ≤ 3.2, 50 Ω
- GNSS frequency range: 1164~1189 MHz, 1559~1606 MHz, RHCP
- GNSS gain: 17 ± 2 dB, VSWR < 2, 50 Ω
- GNSS supply voltage: 3 - 5 VDC, 16 ± 3 mA current consumption
- Connectors: 5x SMA male (4 mobile + 1 GNSS)
- Cables: 4x ALS302 and 1x RG174, 3000 mm
- Mounting: screw (M27 nut)
- Ingress protection: IP67 / IP69K (after installation)
- Operating temperature: -40 to 85 C
- Weight: 780 g
- Compliance: RoHS
FAQs
Q: What is included in the PR1KCI49 antenna?
A: It is a combined 5G 4x4 MIMO and GNSS roof antenna with five SMA male connectors, each fitted with a 3 m cable (four ALS302 cables for mobile and one RG174 cable for GNSS).
Q: Which connectors does it use?
A: It has five SMA male connectors: four for the 4x4 MIMO cellular antenna and one for the GNSS antenna.
Q: What frequencies does the antenna cover?
A: The mobile side covers 600~960 MHz and 1400~6000 MHz with a maximum gain of 4.9 dBi. The GNSS side covers 1164~1189 MHz and 1559~1606 MHz with RHCP polarisation.
Q: Is the GNSS antenna active?
A: Yes. The GNSS antenna has 17 ± 2 dB gain and needs a 3 - 5 VDC supply, drawing 16 ± 3 mA.
Q: Is it suitable for outdoor or vehicle use?
A: Yes. It is a roof-mount antenna rated IP67 / IP69K after installation, with an operating temperature range of -40 to 85 C.
Q: How is the antenna mounted?
A: It mounts through a roof or panel hole using a screw-type M27 nut.
