Teltonika OTD140 | Outdoor 4G LTE Router, Dual SIM, IP55, PoE

Name: Teltonika OTD140 | Outdoor 4G LTE Router, Dual SIM, IP55, PoE
Brand: Teltonika
SKU: OTD140
Price: 264.38 AUD
Availability: InStock

Authorised Teltonika Partner

SKU:OTD140

In stock:19

$264.38 inc. GST

$240.35 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

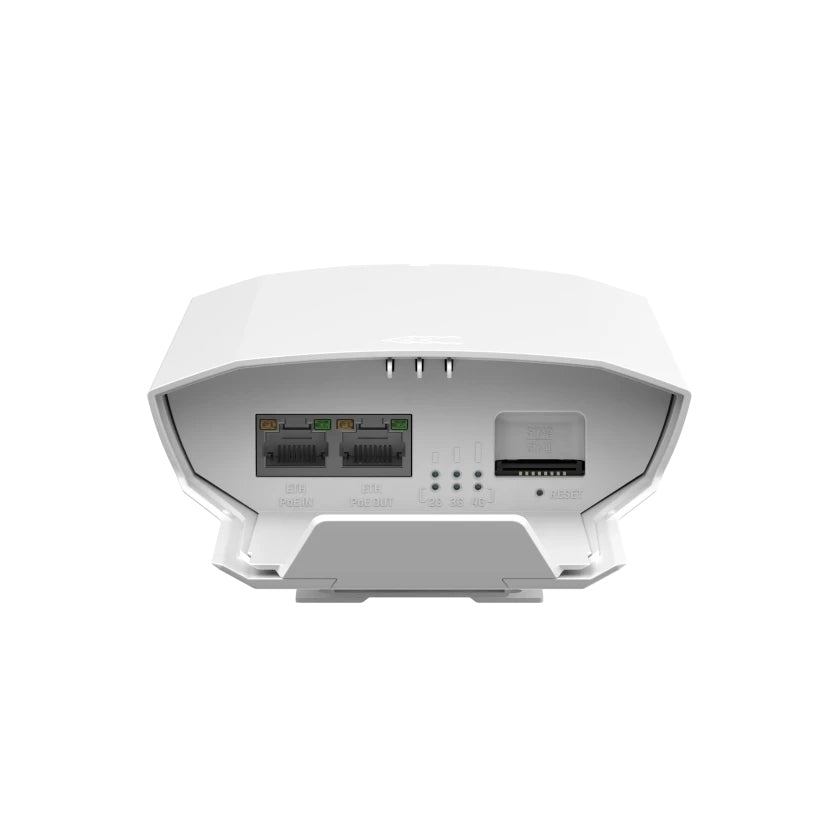

The Teltonika OTD140 is a rugged outdoor 4G LTE Cat 4 router delivering up to 150 Mbps download in an IP55-rated PC+ASA plastic enclosure built for harsh environments. Designed for remote CCTV, IoT/M2M, construction sites, agriculture, and renewable energy deployments, it features dual SIM with automatic failover, integrated pole/wall mounting, and a PoE-in/PoE-out configuration that powers both the router and a connected device from a single cable run.

Running Teltonika's RutOS, the OTD140 supports enterprise-grade VPN protocols (OpenVPN, IPsec, WireGuard), advanced routing (BGP, OSPF, RIP), industrial protocols (Modbus TCP/RTU, MQTT, DNP3), and full compatibility with the Teltonika Remote Management System (RMS) for zero-touch provisioning and remote monitoring. Certified RCM for the Australian market.

Features

- IP55-rated durable PC+ASA plastic housing engineered for permanent outdoor installation
- Integrated pole/wall mounting bracket for tool-minimal deployment
- Dual SIM auto-failover triggered by weak signal, data limits, roaming conditions, or network loss
- PoE-in (802.3af/at) powers the router; PoE-out (802.3af) powers a downstream device — single cable solution
- LTE Cat 4 with automatic 4G/3G/2G fallback for continuous connectivity
- VPN support: OpenVPN, IPsec, WireGuard, and more
- Advanced routing: BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP
- Industrial protocol support: Modbus TCP/RTU, MQTT, DNP3, DLMS
- Firewall with port forwarding, traffic rules, DDoS prevention, and NAT
- SNMP v1/v2/v3, TR-069, and JSON-RPC management interfaces
- Teltonika RMS compatible for centralised remote management and FOTA updates
- RutOS operating system with Web UI (HTTP/HTTPS), SSH, and CLI access
- SMS management and alerting via HTTP POST/GET
- RCM certified — compliant for Australian market deployment

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 4G LTE Cat 4: 150 Mbps DL / 50 Mbps UL
- 3G: 21 Mbps DL / 5.76 Mbps UL
- 2G: 236.8 kbps DL / 236.8 kbps UL
- 2x Ethernet Ports: 10/100 Mbps — PoE-in (802.3af/at) and PoE-out (802.3af, 15W)
- Dual SIM with automatic failover (signal strength, data limit, roaming, no network)
- 2x Built-in 4G omnidirectional antennas
- Ingress Protection: IP55
- Operating Temperature: -40°C to +75°C
- CPU: 580 MHz
- RAM: 128 MB
- Flash Memory: 16 MB
- Dimensions: 235 x 100 x 49.3 mm
- Weight: 855 g
- Certifications: CE, UKCA, EAC, UCRF, RCM
- Power Input: PoE 802.3af/at (PSU not included)

FAQs

Q: Does the OTD140 require an external power supply?
A: The OTD140 is powered via PoE input (802.3af/at) and the PSU is not included. You will need a compatible PoE injector or PoE-capable switch to power the router. It can simultaneously provide 802.3af PoE output (up to 15W) to power a connected downstream device such as a camera or access point.

Q: Which SIM cards and network bands does the OTD140 support?
A: The OTD140 supports dual nano-SIM cards with automatic failover. It operates on 4G LTE Cat 4 (150 Mbps DL), 3G HSPA+, and 2G EDGE/GPRS networks. Supported frequency bands vary by regional variant — confirm your carrier's bands with your sales rep before ordering.

Q: Is the OTD140 suitable for harsh outdoor environments?
A: Yes. The OTD140 is housed in a durable PC+ASA plastic enclosure rated IP55 for protection against dust ingress and water jets. Its operating temperature range of -40°C to +75°C makes it suitable for Australian outback conditions, coastal environments, construction sites, agricultural installations, and renewable energy sites.

Q: What management options are available for the OTD140?
A: The OTD140 runs Teltonika's RutOS and supports Web UI (HTTP/HTTPS), SSH, and CLI for local management. For centralised fleet management, it integrates with Teltonika's Remote Management System (RMS), enabling remote configuration, monitoring, and FOTA firmware updates across multiple deployed units.

Q: Does the OTD140 support VPN and industrial protocols?
A: Yes. The OTD140 supports OpenVPN, IPsec, and WireGuard VPN protocols for secure tunnelling. It also supports industrial protocols including Modbus TCP/RTU, MQTT, DNP3, and DLMS, making it well suited for SCADA, IoT/M2M, and smart metering applications.
