Teltonika ATRM50100000 | ATRM50 5G Rail & Transit Router, M12, Dual SIM+eSIM, 3.4 Gbps

Name: Teltonika ATRM50100000 | ATRM50 5G Rail & Transit Router, M12, Dual SIM+eSIM, 3.4 Gbps
Brand: Teltonika
SKU: ATRM50100000
Price: 1765.94 AUD
Availability: BackOrder

Authorised Teltonika Partner

SKU:ATRM50100000

Stock Status: Enquire

$1,765.94 inc. GST

$1,605.40 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

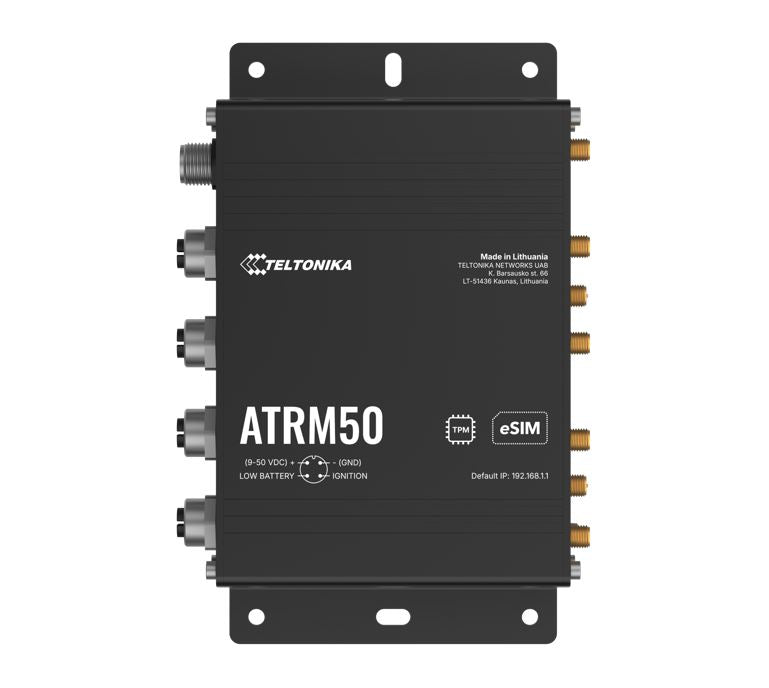

The Teltonika ATRM50 is a rugged 5G industrial router purpose-built for rail, public transit, and transportation deployments, delivering ultra-high cellular speeds up to 3.4 Gbps downlink over 5G Sub-6 GHz. Featuring M12 X-coded Gigabit Ethernet connectors and an M12 A-coded power input, it provides vibration-proof connectivity essential in high-shock vehicle environments. Dual SIM with eSIM support (up to 7 profiles) ensures seamless network failover, while built-in GNSS (GPS, GLONASS, BeiDou, Galileo) enables real-time fleet tracking across your entire transit network.

Certified to EN 45545-2 (railway fire safety) and EN 50155 (railway electronics), the ATRM50 meets the most stringent standards for rolling stock deployments. The RutOS operating system supports industrial protocols including Modbus, MQTT, and OPC UA, alongside comprehensive VPN options such as WireGuard, OpenVPN, and IPsec. Hardware TPM 2.0 provides secure key storage, and compatibility with Teltonika RMS enables centralised fleet management at scale. Note: PSU not included.

Features

- Ultra-high 5G speeds up to 3.4 Gbps DL for bandwidth-intensive transport applications
- M12 X-coded Gigabit Ethernet connectors provide vibration-proof, secure cable locking
- M12 A-coded power connector ensures stable operation in high-vibration and shock environments
- Dual SIM + eSIM with automatic failover based on signal strength, data limits, roaming and custom rules
- EN 45545-2 and EN 50155 certified for rail and rolling stock compliance
- Built-in GNSS (GPS, GLONASS, BeiDou, Galileo, QZSS) for real-time fleet and asset tracking
- RutOS supports industrial protocols: Modbus, MQTT, OPC UA, DNP3
- Comprehensive VPN support: WireGuard, OpenVPN, IPsec, ZeroTier, DMVPN and more
- Hardware TPM 2.0 for secure cryptographic key and certificate storage
- Compatible with Teltonika RMS for centralised fleet-wide device management
- Ignition detection and low-battery protection for in-vehicle deployments
- Wi-Fi Mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v)
- SDK support with Lua, C, C++, Python for custom on-board application development
- Anodized aluminium housing for long-term durability in harsh environments
- DIN rail mounting and integrated bracket options for flexible installation

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 5G Sub-6 GHz SA/NSA: Up to 3.4 Gbps DL (4x4 MIMO) / 900 Mbps UL (2x2 MIMO)
- 4G LTE Cat 19: Up to 1.6 Gbps DL (4x4 MIMO) / Cat 18 200 Mbps UL
- 3G: 42 Mbps DL / 5.76 Mbps UL
- WAN/LAN: 4 x M12 X-coded Gigabit Ethernet Ports
- Power Input: 1 x M12 A-coded, 9–50 V DC
- Wi-Fi 5: 802.11b/g/n/ac Wave 2, Dual Band, MU-MIMO, up to 867 Mbps
- SIM: Dual SIM + eSIM (up to 7 eSIM profiles)
- GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
- CPU: MediaTek Dual-Core 880 MHz
- RAM: 256 MB DDR3
- Flash: 16 MB NOR + 256 MB NAND
- Security: Hardware TPM 2.0
- Ingress Protection: IP30
- Antenna Connectors: 4 x SMA (Mobile MAIN), 1 x SMA (GPS), 2 x RP-SMA (Wi-Fi)
- 1 x USB Port
- Mounting: DIN Rail, integrated mounting bracket
- Dimensions: 167 x 46.2 x 112.4 mm
- Weight: 550 g
- Operating System: RutOS (OpenWrt-based)
- Certifications: EN 45545-2, EN 50155, E-Mark, ITxPT
- Housing: Anodized aluminium
- PSU not included

FAQs

Q: What railway certifications does the ATRM50 hold?
A: The ATRM50 is certified to EN 45545-2 (railway fire safety) and EN 50155 (railway electronics), making it fully compliant for deployment in rolling stock, metros, trams, and public transit vehicles. It also holds E-Mark and ITxPT certifications.

Q: Why does the ATRM50 use M12 connectors instead of standard RJ45?
A: M12 X-coded connectors provide a screw-lock mechanism that is highly resistant to vibration, shock, and moisture — critical in rail and vehicle environments where standard RJ45 connectors can loosen or fail. The M12 A-coded power connector offers the same benefit for the power supply connection.

Q: How does the Dual SIM and eSIM failover work on the ATRM50?
A: The ATRM50 supports two physical SIM cards plus an eSIM with up to 7 stored profiles. Automatic failover can be triggered by signal strength thresholds, data usage limits, roaming status, or manual rules — ensuring continuous connectivity even when a primary carrier experiences outages or coverage gaps.

Q: What VPN protocols does the ATRM50 support for secure communications?
A: The ATRM50 supports a comprehensive range of VPN technologies including OpenVPN, IPsec (IKEv1/v2), WireGuard, GRE, L2TP/PPTP, ZeroTier, DMVPN, SSTP, Stunnel, Tinc, and Tailscale, suitable for secure back-office connectivity across distributed transit fleets.

Q: Can the ATRM50 be managed remotely across a large fleet?
A: Yes. The ATRM50 is fully compatible with Teltonika Remote Management System (RMS), which provides centralised configuration, monitoring, firmware updates, and diagnostics across thousands of devices — ideal for large public transit or rail fleet operators.

Q: Can I purchase the Teltonika ATRM50 in Australia?
A: Yes. The ATRM50 is available from iptrading.com.au, a specialist B2B IT hardware reseller offering fast shipping and expert technical support across Australia. Note that the PSU is not included and must be sourced separately. Contact the team for volume pricing or project-based enquiries.
