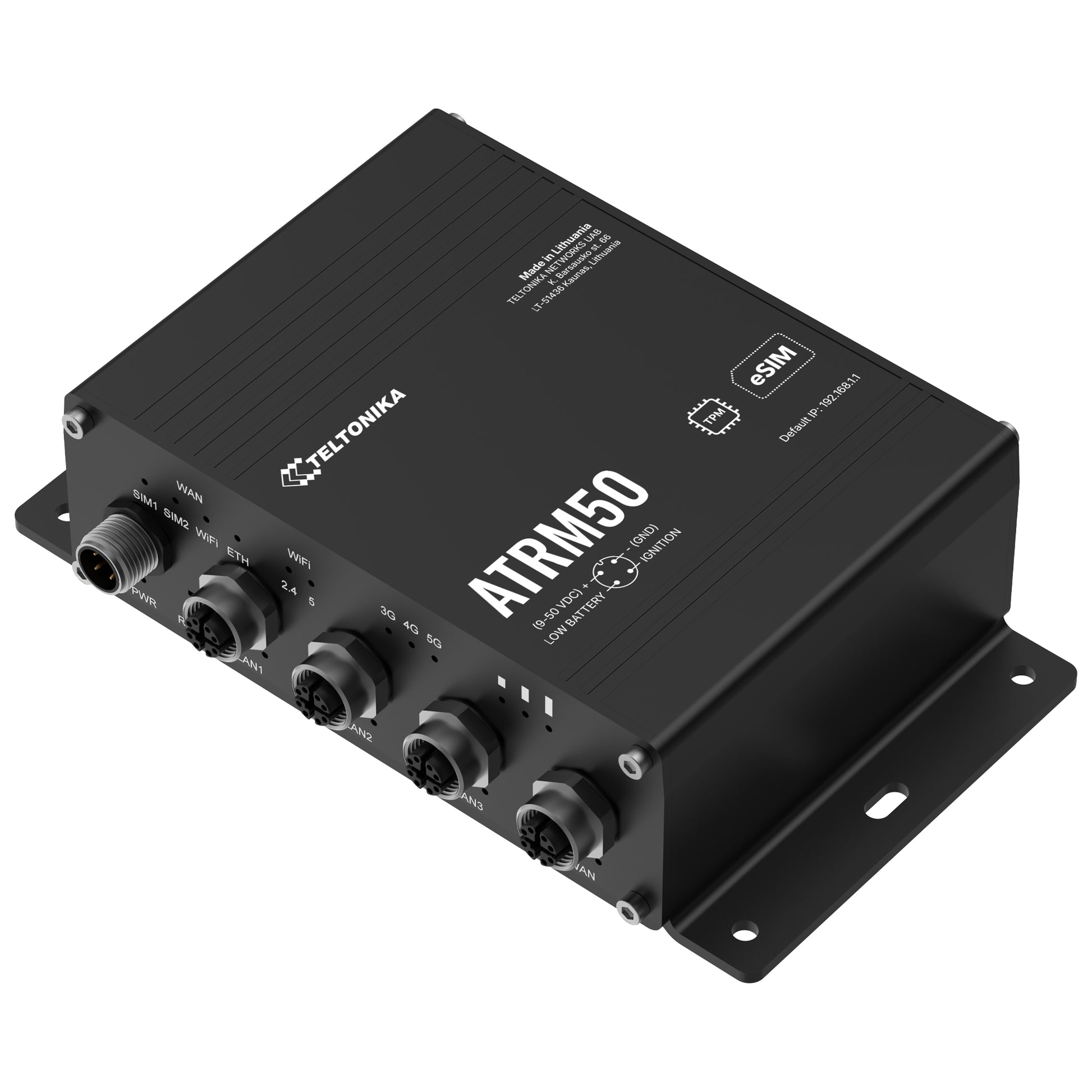

Teltonika ATRM50 | 5G Rail Router, M12, Dual SIM, eSIM, Wi-Fi 5

Authorised Teltonika Partner

SKU:ATRM50

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Teltonika ATRM50 is a rugged 5G router for transportation and railway deployments. It delivers 5G cellular speeds up to 3.4 Gbps with SA and NSA support, dual SIM with eSIM, and automatic failover to a backup WAN. M12 connectors for Ethernet and power keep connections secure in high-vibration environments, and EN 45545-2 and EN 50155 certifications make it suitable for rolling stock.

The ATRM50 provides four M12 X-coded Gigabit Ethernet ports, Wi-Fi 5 802.11ac Wave 2 and integrated multi-constellation GNSS for location tracking. It runs RutOS with VPN and firewall features, is compatible with Teltonika RMS for remote management, and operates from -40 to 75 °C with a 9-50 V DC power input.

Features

- EN 45545-2 and EN 50155 railway certifications
- EN 50155 ignition detection and low-battery protection
- Integrated mounting bracket
- RutOS operating system with VPN and firewall features
- Teltonika RMS (Remote Management System) compatible
- Vibration-resistant M12 connectors for Ethernet and power

Warranty

Teltonika networking products come with a 24-month warranty from the date of purchase. Batteries are covered under a separate 6-month warranty.
https://teltonika-networks.com/support/warranty-repair

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 5G cellular with speeds up to 3.4 Gbps (SA and NSA support)
- Dual SIM with eSIM support, with auto failover and backup WAN
- 4 x M12 X-coded Gigabit Ethernet ports
- 1 x M12 A-coded 4-pin power input, 9-50 V DC
- Wi-Fi 5: 802.11b/g/n/ac Wave 2
- Integrated GNSS (GPS, GLONASS, Galileo, BeiDou, QZSS)
- Mediatek dual-core 880 MHz MIPS1004Kc CPU, 256 MB DDR3 RAM
- 16 MB serial NOR flash and 256 MB serial NAND flash storage
- Dimensions 167 x 46.2 x 112.4 mm, weight 550 g, IP30
- Operating temperature -40 to 75 °C
- SMA / RP-SMA antenna connectors
- Package contents: router, Allen key, quick start guide

FAQs

Q: Which railway standards does the Teltonika ATRM50 meet?
A: The ATRM50 is certified to EN 45545-2 and EN 50155, and includes EN 50155 ignition detection and low-battery protection.

Q: Does the ATRM50 support eSIM?
A: Yes. It supports dual SIM with eSIM, with automatic failover and backup WAN between connections.

Q: What Ethernet and power connectors does the ATRM50 use?
A: It has four M12 X-coded Gigabit Ethernet ports and one M12 A-coded 4-pin power input accepting 9-50 V DC.

Q: Does the ATRM50 include GNSS for vehicle tracking?
A: Yes. It has integrated GNSS supporting GPS, GLONASS, Galileo, BeiDou and QZSS.

Q: Can the ATRM50 be managed remotely?
A: Yes. It runs RutOS and is compatible with Teltonika RMS for remote monitoring and management.

Q: What is the operating temperature range of the ATRM50?
A: The ATRM50 operates from -40 to 75 °C and has an IP30 rating.
