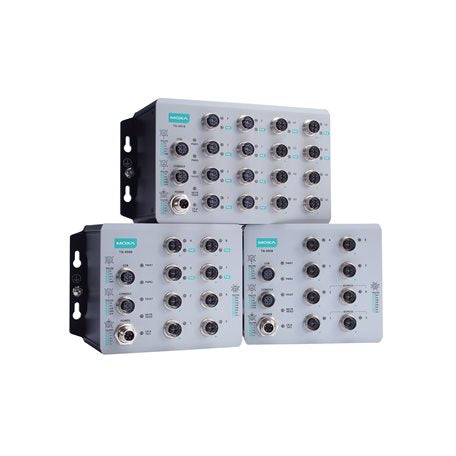

• Moxa TN-4908-WV-CT-T router with 3 gray modules, black connectors, teal branding
1 1

Moxa

Moxa TN-4908-WV-CT-T | TN-4900 Industrial Secure Router, 8x Fast Ethernet M12

Moxa TN-4908-WV-CT-T | TN-4900 Industrial Secure Router, 8x Fast Ethernet M12

Authorised Moxa Partner

TN-4908-WV-CT-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa TN-4908-WV-CT-T is an EN 50155 industrial secure router with 8 x Fast Ethernet (10/100M) M12 D-coded ports, built for rolling stock Ethernet networks. This variant has no ETBN and no bypass relay, and the conformal coating (-CT) and extended temperature rating (-T) suit demanding onboard environments from -40 to 70°C.

A wide 24 to 110 VDC isolated redundant power input, metal housing and M12 connectors that resist vibration and shock make it a dependable choice for train networks. NAT support simplifies IP management, allowing end devices in different carriages to reuse the same IP addresses.

Features

- EN 50155 Ethernet router for rolling stock applications
- Isolated power input range from 24 to 110 VDC
- Supports regular and push-pull M12 connectors
- NAT simplifies IP management across carriages
- Complies with all EN 50155 mandatory test items
- IEC 62443-4-2 security certification
- M12 and circular connectors resist vibration and shock

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x 10/100BaseT(X) ports, M12 D-coded 4-pin female
- Power input: 24/36/48/72/96/110 VDC, redundant dual inputs
- Power connector: M12 K-coded 5-pin male
- IP40 rating
- Operating temperature: -40 to 70°C
- Conformal coating (-CT)
- Extended temperature model (-T)
- Complies with EN 50155 mandatory test items
- Metal housing

FAQs

Q: What standard does the Moxa TN-4908-WV-CT-T comply with?
A: It complies with all EN 50155 mandatory test items, making it suitable for rolling stock applications.

Q: What power input range does it support?
A: It accepts 24/36/48/72/96/110 VDC through redundant dual inputs using an M12 K-coded 5-pin male connector.

Q: What does the -CT suffix mean?
A: The -CT suffix indicates conformal coating on the circuit boards, protecting against moisture and contaminants.

Q: What operating temperature range is supported?
A: The -T model operates from -40 to 70°C.

Q: What port configuration does this model have?
A: It has 8 x 10/100BaseT(X) ports with M12 D-coded 4-pin female connectors. This variant has no ETBN and no bypass relay.

Q: How does NAT help in train networks?
A: NAT allows end devices in different carriages to use the same IP addresses, simplifying IP management across the train.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
