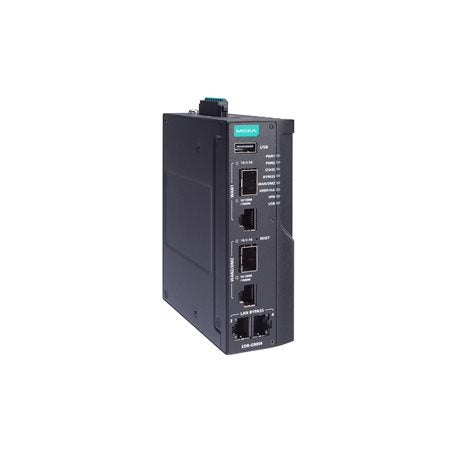

Moxa EDR-G9004-VPN-2MGTXSFP-CT-T/KC | EDR-G9004 Industrial Secure Router, -40 to 75°C, KC, 2x GbE + 2x SFP/RJ45

Authorised Moxa Partner

SKU:EDR-G9004-VPN-2MGTXSFP-CT-T/KC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa EDR-G9004-VPN-2MGTXSFP-CT-T/KC is an industrial secure router that combines a firewall, NAT, VPN and routing in a compact 4-port Gigabit design. It offers 2 copper Gigabit ports with Gen3 LAN Bypass and 2 copper/SFP combo ports, and is built for harsh environments with a -40 to 75°C operating range and conformal coating. This is the KC-certified variant of the EDR-G9004 family.

A dedicated DMZ port, dual WAN redundancy and industrial-grade IPS/IDS with Deep Packet Inspection for industrial protocols help protect OT networks and enable secure remote access over VPN. A metal housing, redundant 12/24/48 VDC power inputs and DIN-rail or wall mounting suit control cabinets and field installations, and the router can be managed centrally with MXsecurity OT security management software.

Features

- 4-port Gigabit all-in-one firewall, NAT, VPN and router
- Gen3 LAN Bypass for system fault tolerance
- Dual WAN redundant interfaces
- Industrial-grade IPS/IDS
- Deep Packet Inspection (DPI) for industrial protocols
- Secure remote access via VPN tunnel
- Network Address Translation (NAT)
- Managed through MXsecurity OT security management software
- Virtual patching and intelligent threat protection

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x 10/100/1000BaseT(X) RJ45 ports with Gen3 LAN Bypass
- 2 x Combo ports (10/100/1000BaseT(X) or 1000/2500BaseSFP)
- DMZ port supported
- 12/24/48 VDC input voltage with redundant dual power inputs
- Operating temperature -40 to 75°C (wide temperature)
- Conformal coating (CT)
- KC certification variant
- Alarm contact: 1 A @ 24 VDC resistive load
- 1 digital input and reset button
- Metal body with DIN-rail and wall mounting
- Secure Boot supported
- Developed according to IEC 62443-4-2

FAQs

Q: What operating temperature range does the EDR-G9004-VPN-2MGTXSFP-CT-T/KC support?
A: It supports a wide operating temperature range of -40 to 75°C, and the conformal coating (CT) adds protection in harsh environments.

Q: What does the KC suffix mean on this model?
A: KC denotes the KC-certified variant of the EDR-G9004 secure router with wide temperature support and conformal coating.

Q: Which ports does this router provide?
A: It provides 2 x 10/100/1000BaseT(X) RJ45 ports with Gen3 LAN Bypass and 2 combo ports that accept either 10/100/1000BaseT(X) copper or 1000/2500BaseSFP fibre.

Q: Does it support a DMZ and WAN redundancy?
A: Yes, it supports a DMZ port and dual WAN redundant interfaces for resilient network segmentation and connectivity.

Q: How is the router powered and mounted?
A: It accepts 12/24/48 VDC input with redundant dual power inputs and mounts on a DIN rail or a wall using its metal housing.

Q: How is it managed?
A: It can be managed centrally through Moxa's MXsecurity OT security management software.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
