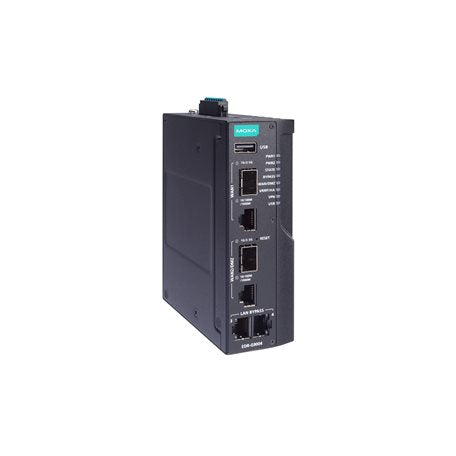

Moxa EDR-G9004-VPN-2MGTXSFP-CT/KC | EDR-G9004 Industrial Secure Router, VPN, Conformal Coating, KC, 10-60°C

Authorised Moxa Partner

SKU:EDR-G9004-VPN-2MGTXSFP-CT/KC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa EDR-G9004-VPN-2MGTXSFP-CT/KC is an industrial secure router that combines firewall, NAT and VPN in a compact DIN-rail unit. It provides two Gigabit copper ports with Gen3 LAN Bypass and two Gigabit RJ45/SFP combo ports, making it well suited to protecting industrial control networks at the edge of an OT environment. This -CT/KC variant adds conformal coating with KC certification and is specified for operation from 10 to 60°C.

Built for demanding installations, the router uses a metal IP40 housing with redundant dual 12/24/48 VDC power inputs on a removable terminal block. Deep Packet Inspection for OT-specific protocols and IPS/IDS capabilities add a further layer of defence for critical industrial systems, while dual WAN redundant interfaces support resilient connectivity.

Features

- 4-port Gigabit all-in-one firewall/NAT/VPN secure router
- Gen3 LAN Bypass for system fault tolerance
- Dual WAN redundant interfaces
- Deep Packet Inspection (DPI) for OT-specific protocols
- Intrusion Prevention/Detection System (IPS/IDS)
- Conformal coating for added protection in harsh environments
- Industrial-grade design for DIN-rail installation

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x 10/100/1000BaseT(X) Gigabit copper ports with Gen3 Bypass
- 2 x Gigabit copper/SFP combo ports (RJ45/SFP)
- Firewall / NAT / VPN
- Conformal coating (KC certification variant)
- 12/24/48 VDC redundant dual power inputs, removable terminal block
- Operating voltage 9.6 to 60 VDC
- Console: RS-232 via USB Type-C
- Metal housing, IP40, DIN-rail mounting
- Dimensions 45 x 135 x 105 mm, weight 800 g
- Operating temperature 10 to 60°C
- Storage temperature -40 to 85°C, 5 to 95% non-condensing humidity

FAQs

Q: What does the -CT/KC suffix mean on this Moxa router?
A: The -CT suffix indicates conformal coating on the circuit boards for added environmental protection, and KC indicates the KC-certified variant of the EDR-G9004 secure router.

Q: What network ports does the EDR-G9004-VPN-2MGTXSFP-CT/KC provide?
A: It has two 10/100/1000BaseT(X) Gigabit copper ports with Gen3 LAN Bypass and two Gigabit combo ports that accept either an RJ45 cable or an SFP module.

Q: Does this router support VPN and firewall functions?
A: Yes. It is an all-in-one industrial secure router with firewall, NAT and VPN, plus Deep Packet Inspection for OT protocols and IPS/IDS.

Q: How is the router powered?
A: It has redundant dual power inputs for 12/24/48 VDC through a removable terminal block, with an operating voltage range of 9.6 to 60 VDC.

Q: How is the router mounted and managed locally?
A: It mounts on a DIN rail in a metal IP40 housing. Local console access is via RS-232 over a USB Type-C port.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
