Logitech

Logitech 952-000011 | Swytch AV Extender Kit, Hub, 1.5m + 5m USB, HDMI, AU/NZ

Logitech 952-000011 | Swytch AV Extender Kit, Hub, 1.5m + 5m USB, HDMI, AU/NZ

Authorised Logitech Partner

SKU:952-000011

$1,623.69 inc. GST
$1,476.08 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

In stock: 39

Description

The Logitech Swytch AV extender kit is a laptop link for meeting rooms that lets a user join a meeting by plugging in a single USB connector, Type-A or Type-C. The Hub and Extender then connect the laptop to the room display, USB conference camera and audio, and deliver up to 60 W power delivery to USB-C laptops. This kit includes AU/NZ/India power supplies, the Swytch Connector with 1.5m USB cable, a 5m USB cable and an HDMI cable.

Swytch supports one meeting room display at up to 4K/60 fps and a USB conference camera at up to 4K/30 fps, with laptop audio available for local sharing and online meetings. It works with Windows, Mac and Chromebook laptops using DisplayLink Plug-and-Display drivers, and is managed through Logitech Sync.

Features

- Plug-and-Display: a single connection carries both USB devices and the HDMI display using DisplayLink technology
- No dongles, splitters or HDMI cable needed on the laptop side
- 60 W power delivery keeps USB-C laptops charged during meetings
- Full-motion video and audio sharing from the laptop to the room
- Works with Windows, Mac and Chromebook laptops
- Hub can be mounted using the Logitech PC Mount (not included)
- Extender can be mounted through a 25 mm grommet hole or attached below a table

Warranty

Logitech provides a limited hardware warranty for its business products, including headsets and video conferencing solutions. Warranty duration depends on the specific product:
• Headsets: Most Logitech business headsets, including the Logitech Zone series, come with a 2-year limited warranty from the date of purchase.
• Video Conferencing Solutions: Products such as Logitech Rally, MeetUp, and ConferenceCams are typically covered by a 2-year limited warranty.
Extended Warranty Options:
IP Trading offers extended warranty and support packages for Logitech business solutions, including flexible options to extend coverage by up to 3 years. Contact our team to learn more and protect your investment.
https://www.logitech.com/content/dam/logitech/en/video-collaboration/pdf/logitech-extended-warranty.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Supports 1 meeting room display up to 4K/60 fps
- USB conference camera support up to 4K/30 fps
- 60 W power delivery to USB-C laptops
- Swytch Connector with USB 3.0 Type-A and Type-C for laptops
- Laptop audio for local sharing and online meetings
- Hub ports: Power, HDMI 2.0 to display, HDMI 2.0 to meeting room computer, USB 3.0 Type-A to conference camera, USB 3.0 Type-C to meeting room computer, USB 3.0 Type-C to Swytch Extender
- Extender ports: Power, USB 3.0 Type-A to Swytch Hub, USB 3.0 Type-C to Swytch Connector, USB 3.0 Micro-B to Swytch Connector
- Hub dimensions (H x W x D): 27.4 x 164 x 90 mm
- Extender dimensions (H x W x D): 27.4 x 120 x 120 mm
- Hub and Extender power supplies: 100-240 V, AU/NZ/India
- Supported OS (DisplayLink Plug-and-Display drivers): Windows 10, macOS 10.15 and later, Chrome OS 75 or later
- Managed via Logitech Sync

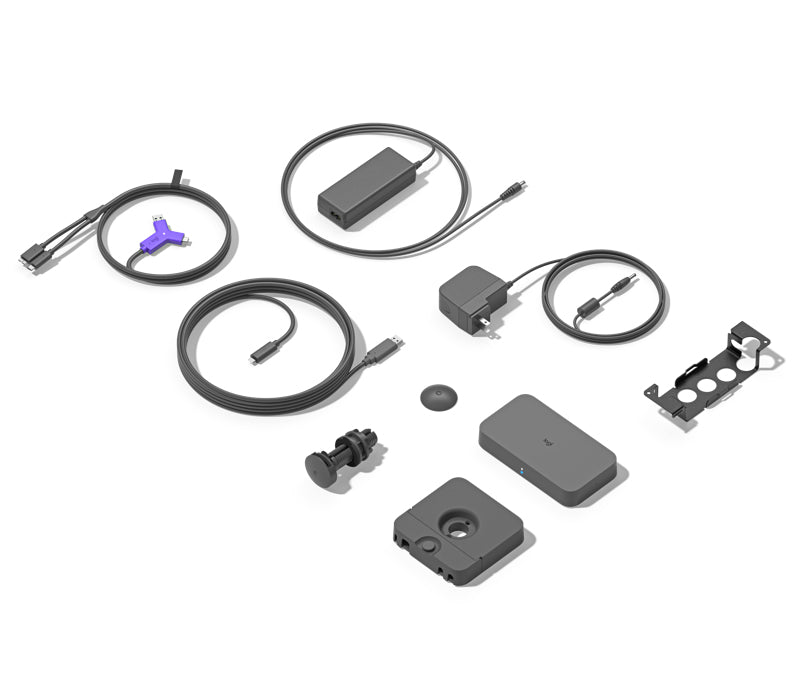

- Box contents: Swytch Connector with 1.5 m USB cable, Hub, Extender, 5 m USB 3.0 cable, 2.2 m USB 3.0 cable, 2.0 m HDMI 2.0 cable

FAQs

Q: What laptop ports does Swytch need?
A: The Swytch Connector plugs into a USB 3.0 port on the laptop, either Type-A or Type-C, so no adapters are needed for most modern laptops.

Q: Which operating systems are supported?
A: Swytch uses DisplayLink Plug-and-Display drivers and supports Windows 10, macOS 10.15 and later, and Chrome OS 75 or later.

Q: Can it charge the connected laptop?
A: Yes. Swytch provides up to 60 W power delivery to USB-C laptops over the same connection.

Q: What is the maximum video resolution?
A: One meeting room display is supported at up to 4K/60 fps, and a USB conference camera is supported at up to 4K/30 fps.

Q: What is included in this kit?
A: The kit contains the Swytch Connector with a 1.5 m USB cable, Hub, Extender, a 5 m USB 3.0 cable, a 2.2 m USB 3.0 cable and a 2.0 m HDMI 2.0 cable, with AU/NZ/India power supplies.

Q: How is Swytch managed?
A: Swytch devices are managed through Logitech Sync.
