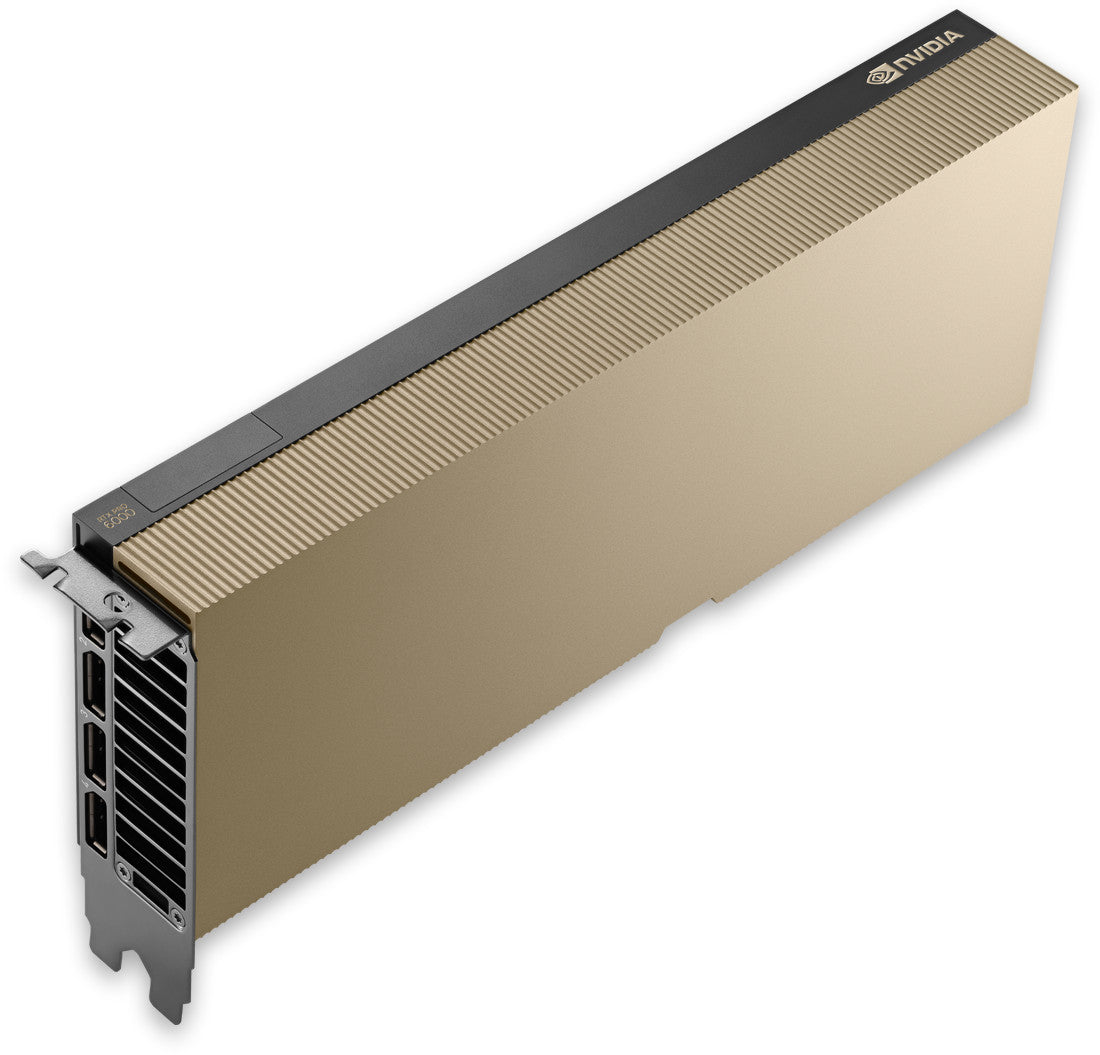

Lenovo 4X67B09287 | ThinkSystem RTX PRO 6000 Blackwell GPU, 96GB GDDR7, Passive, 600W

Authorised Lenovo Partner

SKU:4X67B09287

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Lenovo ThinkSystem NVIDIA RTX PRO 6000 Blackwell Server Edition is a passively cooled PCIe Gen5 GPU with 96GB of GDDR7 ECC memory, configured at 600W (feature code CBK8). Built for AI inference, fine-tuning, visual computing and HPC workloads in ThinkSystem servers, it pairs 24,064 CUDA cores with 752 fifth-generation Tensor Cores and 188 fourth-generation RT cores for demanding data centre deployments.

The 512-bit memory interface delivers up to 1597 GB/s of bandwidth, and Multi-Instance GPU support allows up to four fully isolated 24GB instances for shared or virtualised environments. The dual-slot, full-height, full-length passive design relies on server chassis airflow, and the card supports NVIDIA vPC/vApps and RTX Virtual Workstation (vWS) licensing for virtual desktop and workstation use.

Features

- Fifth-generation Tensor Cores with FP4 precision for faster LLM inference
- Fourth-generation ray-tracing cores with RTX Mega Geometry support
- 96 GB GDDR7 memory with about 1.6 TB/s bandwidth
- PCIe Gen 5 for double the bandwidth of Gen 4
- Universal MIG: up to four fully isolated GPU instances
- Four 9th-gen NVENC and four 6th-gen NVDEC engines with 4:2:2 support
- NVIDIA DLSS 4 with Multi-Frame Generation
- NVIDIA vPC/vApps and RTX Virtual Workstation (vWS) vGPU software support
- Passive thermal design; ships with full-height (3U) bracket attached

Warranty

Lenovo offers a standard 1-year warranty across most product lines, including:
• PC Products: 1-year base warranty coverage for laptops, desktops, and other personal computing devices.
• Data Centre Products: 1-year base warranty for servers, storage, and networking hardware.
Warranty coverage includes repair or replacement for eligible defects in materials or workmanship under normal use conditions.
Extended Warranty Options:
IP Trading can offer extended warranty solutions tailored to your business needs. Please contact us for details on available Lenovo extended warranty packages.
https://support.lenovo.com/au/en/solutions/ht505088-product-warranty-and-other-agreements

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 96 GB GDDR7 with ECC, 512-bit memory interface
- Memory bandwidth: up to 1597 GB/s
- 24,064 CUDA cores, 752 fifth-generation Tensor Cores, 188 fourth-generation RT cores
- FP32 performance: 120 TFLOPS (peak)
- FP8 Tensor Core performance: 2 PFLOPS (peak)
- FP4 AI performance: 4 PFLOPS (peak)
- Host interface: PCIe 5.0 x16
- Power consumption: 600 W (can be power capped to 450 W)
- Passive cooling, dual-slot, full-height, full-length (4.4 in H x 10.5 in L)
- Multi-Instance GPU: up to 4 MIGs at 24GB
- Display connectors: 4x DisplayPort 2.1b (disabled by default)
- Encode/decode: 4x NVENC, 4x NVDEC, 4x JPEG
- NVLink support: No
- Graphics APIs: DirectX 12, Shader Model 6.6, OpenGL 4.6, Vulkan 1.3

FAQs

Q: Is this GPU actively or passively cooled?
A: It is passively cooled and relies on airflow from the server chassis, so it must be installed in a supported ThinkSystem server with adequate front-to-back cooling.

Q: What is the power rating of this SKU?
A: This SKU is the 600W configuration (feature code CBK8). The card can also be power capped to 450W to support increased density.

Q: How much memory does it have and what type?
A: It has 96 GB of GDDR7 memory with ECC on a 512-bit interface, delivering up to 1597 GB/s of memory bandwidth.

Q: Does it support NVLink?
A: No. The card connects to the host over PCIe 5.0 x16 and does not support NVLink.

Q: Can the GPU be partitioned for multiple users or workloads?
A: Yes. Multi-Instance GPU lets you split the card into up to four isolated instances of 24GB each, and vGPU software support includes NVIDIA vPC/vApps and RTX Virtual Workstation (vWS).

Q: What form factor is the card?
A: It is a dual-slot, full-height, full-length PCIe card measuring 4.4 in high by 10.5 in long, shipped with a full-height (3U) bracket attached.
