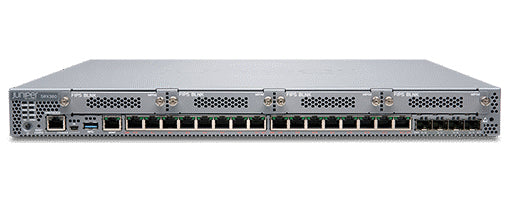

Juniper SRX380-P-CHAS | SRX380 Next-Gen Firewall, 16x PoE+, 4x 10G SFP+, Chassis Only

Authorised Juniper Partner

SKU:SRX380-P-CHAS

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Juniper SRX380 is a 1U next-generation firewall and SD-WAN services gateway for branch and enterprise sites, combining security, routing, switching and WAN connectivity in one device. It provides 16 x 1GbE PoE+ ports and 4 x 10GbE SFP+ ports, giving the highest port density in the SRX300 line. This SRX380-P-CHAS SKU is the chassis only, with no power supplies, no cables and no rack-mount kit, so power supplies and mounting hardware must be selected separately.

The SRX380 runs Junos OS and supports IPsec VPN, high availability, IPv6 and dynamic routing including MPLS, BGP, OSPF and IS-IS. Four expansion slots accept MPIMs for T1/E1, VDSL2, LTE and Wi-Fi WAN options. The PoE budget is 300 W with one power supply and 480 W with two, with a maximum of 30 W on a single port. Advanced security services such as IPS, AppSecure, UTM and SD-WAN are available through Juniper subscriptions.

Features

- Consolidates security, routing, switching and WAN connectivity in a single 1U device
- Highest port density in the SRX300 line
- Junos OS advanced security services (IPS, AppSecure, UTM, SD-WAN) available via subscriptions
- IPsec VPN, high availability and IPv6 support
- Supports MPLS, BGP, OSPF and IS-IS routing
- Modular MPIM slots for T1/E1, VDSL2, LTE and Wi-Fi WAN options
- Supports dual redundant power supplies (sold separately)

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: SRX380, part number SRX380-P-CHAS (chassis only)
- 16 x 1GbE PoE+ ports, maximum 30 W per PoE port
- 4 x 10GbE SFP+ ports
- 1 x 1000Base-T RJ-45 management port and mini-USB console port
- 4 expansion slots for MPIMs (T1/E1, VDSL2, LTE, 802.11ac Wave 2 Wi-Fi)
- PoE budget: 300 W with one power supply, 480 W with two power supplies
- AC input voltage: 100 to 240 VAC
- Form factor: 1U, rack-mountable (wall-mountable), front to back airflow
- Common Criteria certification: NDPP, VPNEP, FWEP, IPSEP (Junos 20.4R1)
- Chassis only - no power supplies, power cords, cables or rack-mount kit included

FAQs

Q: Does the SRX380-P-CHAS include power supplies?
A: No. This SKU is the chassis only and ships without power supplies, power cords, cables or a rack-mount kit. These items must be ordered separately.

Q: How much PoE power does the SRX380 provide?
A: The 16 PoE+ ports deliver up to 30 W each. The total PoE budget is 300 W with one power supply installed and 480 W with two power supplies installed.

Q: Can the SRX380 be expanded with LTE or other WAN interfaces?
A: Yes. The chassis has 4 expansion slots that accept MPIMs, including 1-port T1/E1, 1-port VDSL2 Annex A/M, 4G/LTE and 802.11ac Wave 2 Wi-Fi modules.

Q: What network ports does the SRX380 offer?
A: It provides 16 x 1GbE PoE+ ports and 4 x 10GbE SFP+ ports, plus a 1000Base-T RJ-45 management port and a mini-USB console port.

Q: Does the SRX380 support redundant power?
A: Yes. It supports dual power supplies, which are sold separately. Installing two raises the PoE budget from 300 W to 480 W.

Q: Are advanced security features included?
A: The SRX380 runs Junos OS and supports IPsec VPN, high availability and advanced services such as IPS, AppSecure, UTM and SD-WAN through Juniper subscriptions.
