Juniper SRX345-SYS-JB-DC | SRX345 Services Gateway Firewall, 16x GE, Single DC PSU

Name: Juniper SRX345-SYS-JB-DC | SRX345 Services Gateway Firewall, 16x GE, Single DC PSU
Brand: Juniper
SKU: SRX345-SYS-JB-DC
Price: 6744.44 AUD
Availability: BackOrder

Authorised Juniper Partner

SKU:SRX345-SYS-JB-DC

Stock Status: Enquire

$6,744.44 inc. GST

$6,131.31 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

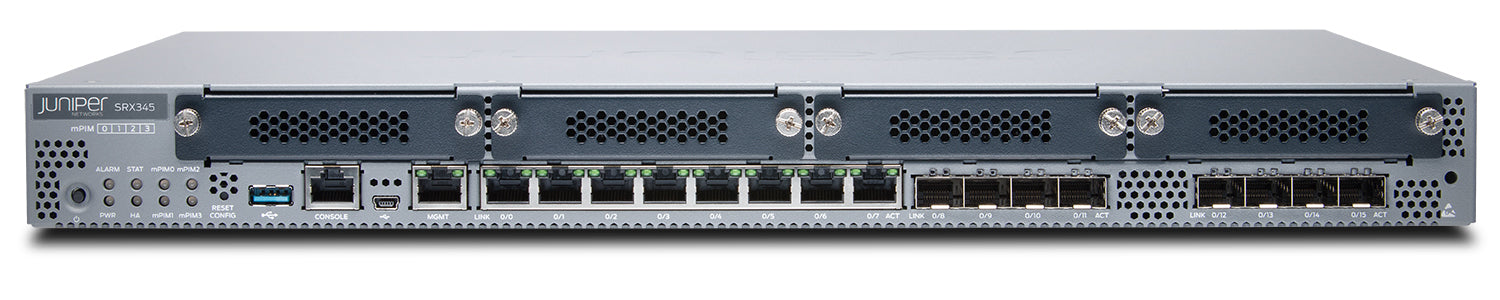

The Juniper SRX345 Services Gateway is a 1U branch security and routing firewall running Junos OS, built for sites that need firewall, VPN and routing in one fixed-chassis appliance. This SRX345-SYS-JB-DC model has a single fixed DC power supply and is rated for a wider operating temperature range of -30 to 55 C, making it suited to DC-powered racks and harsher environments than the AC models.

It provides 16 built-in Gigabit Ethernet ports (8 RJ-45 and 8 SFP) with MACsec support, 4 Mini-PIM slots for modular WAN and LAN expansion, 4 GB DRAM and 8 GB flash storage. Firewall throughput reaches 5 Gbps (1518B), with support for 375 K concurrent sessions and 2048 IPsec VPN tunnels.

Features

- Runs Junos OS for unified security and routing
- MACsec support on built-in RJ-45 and SFP ports
- 4 Mini-PIM slots for modular WAN and LAN expansion
- Fixed DC power supply with extended operating temperature range
- Front-to-back airflow in a compact 1U rack form factor
- Support for up to 250 concurrent SSL VPN users and 128 virtual routers

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 16 x GE built-in ports (8 x RJ-45 + 8 x SFP), MACsec supported
- 4 x Mini-PIM slots
- 4 GB DRAM, 8 GB flash
- Single fixed DC power supply, 122 W average power consumption
- Firewall throughput: 5 Gbps (1518B), 1.5 Gbps (IMIX)
- IPsec VPN throughput: 0.977 Gbps (1400B)
- Max concurrent sessions: 375 K
- IPsec VPN tunnels: 2048
- Maximum security policies: 4000
- Console: 1 x RJ-45 and 1 x Mini USB Type B, management port: 1 x RJ-45, 1 x USB 3.0 Type A
- 1U fixed chassis, front-to-back airflow, 4 fixed fan modules
- Operating temperature: -30 to 55 C
- Dimensions: 44.09 cm W x 37.01 cm D x 4.37 cm H, 5 kg

FAQs

Q: What is the difference between the SRX345-SYS-JB-DC and the AC models?
A: This SKU has a single fixed DC power supply and is rated for an operating temperature of -30 to 55 C, which is wider than the AC models.

Q: How many network ports does the SRX345-SYS-JB-DC have?
A: It has 16 built-in Gigabit Ethernet ports, made up of 8 RJ-45 ports and 8 SFP ports, both with MACsec support. Four Mini-PIM slots allow further expansion.

Q: Can the SRX345 be expanded with additional interfaces?
A: Yes. The four Mini-PIM slots accept Mini-PIM modules for modular WAN and LAN expansion.

Q: What firewall and VPN performance does the SRX345 deliver?
A: Firewall throughput is 5 Gbps with 1518B packets, and IPsec VPN throughput is 0.977 Gbps with 1400B packets. It supports 375 K concurrent sessions and 2048 IPsec VPN tunnels.

Q: Is the power supply redundant or hot-swappable?
A: No. This model has a single fixed DC power supply and four fixed fan modules.

Q: What operating system does it run?
A: It runs Junos OS, with support starting from release 17.4R1.
