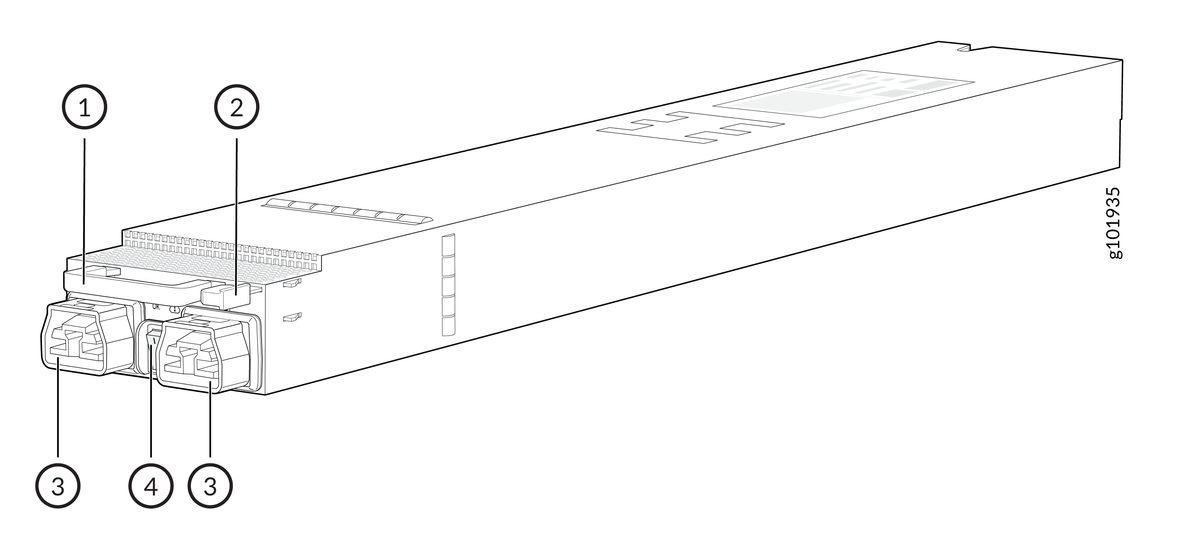

Juniper JNP-PWR3K20A-AC | ACX7509 AC/HVDC Power Supply Module, 3000W, 20A

Name: Juniper JNP-PWR3K20A-AC | ACX7509 AC/HVDC Power Supply Module, 3000W, 20A
Brand: Juniper
SKU: JNP-PWR3K20A-AC
Price: 7760.16 AUD
Availability: BackOrder

Authorised Juniper Partner

SKU:JNP-PWR3K20A-AC

Stock Status: Enquire

$7,760.16 inc. GST

$7,054.69 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The Juniper AC/HVDC power supply module delivers 3000W at a 20A input and is designed for ACX7509 routers. It accepts either AC or HVDC input, automatically detecting the supplied voltage, and provides 12V main and 12V standby outputs to keep the chassis powered.

This hot-removable, hot-insertable field-replaceable unit uses two counter-rotating fans for front-to-back cooling. It supports 1+1 redundancy in ACX7509-BASE and 2+2 redundancy in ACX7509-PREMIUM configurations, so a module can be replaced without taking the router offline. AC/HVDC and DC power supplies must not be mixed in the same chassis.

Features

- Hot-swappable field-replaceable unit for service without downtime
- Automatically detects AC or HVDC input voltage
- Supports 1+1 redundancy (ACX7509-BASE) and 2+2 redundancy (ACX7509-PREMIUM)
- Two counter-rotating fans provide front-to-back cooling
- Single input per module with 12V and 12V standby outputs

Warranty

Juniper products are supplied with standard manufacturer warranty terms, which vary by product and can range from 1 year through to limited lifetime coverage. IP Trading can also provide Juniper J-Care warranty and support extensions for customers who need longer coverage or enhanced support options. https://support.juniper.net/support/warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Rated output power: 3000W
- AC input: 200-277V, 50-60Hz, 20A
- HVDC input: 240-280V, 20A
- Absolute input range (AC): 180-305 VAC
- Absolute input range (HVDC): 190-400 VDC
- Outputs: 12V and 12V standby
- Cooling: two counter-rotating fans, front-to-back airflow
- Hot-removable and hot-insertable FRU
- AC low line (110V) not supported

FAQs

Q: Which Juniper router does this power supply module suit?
A: It is designed for the Juniper ACX7509 router chassis, supplying 12V power to the system.

Q: Does it accept both AC and HVDC input?
A: Yes. The module accepts a 20A AC input (200-277V, 50-60Hz) or a 20A HVDC input (240-280V) and detects the input type automatically.

Q: Can it be replaced while the router is running?
A: Yes. It is a hot-removable and hot-insertable field-replaceable unit.

Q: What power redundancy options are supported?
A: The ACX7509-BASE supports 1+1 redundancy and the ACX7509-PREMIUM supports 2+2 redundancy.

Q: Can I mix AC/HVDC and DC power supplies in one chassis?
A: No. AC/HVDC and DC power supply modules must not be mixed in the same chassis.

Q: Does it work with a 110V low-line AC supply?
A: No. AC low line (110V) is not supported. The module requires an AC input of 200-277V.
