Fortinet FEW-50G-EA | FortiExtender WAN 50G 5G/LTE Gateway, Dual-SIM, EA

Name: Fortinet FEW-50G-EA | FortiExtender WAN 50G 5G/LTE Gateway, Dual-SIM, EA
Brand: Fortinet
SKU: FEW-50G-EA
Price: 1095.88 AUD
Availability: BackOrder

Authorised Fortinet Partner

SKU:FEW-50G-EA

Stock Status: Enquire

$1,095.88 inc. GST

$996.25 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

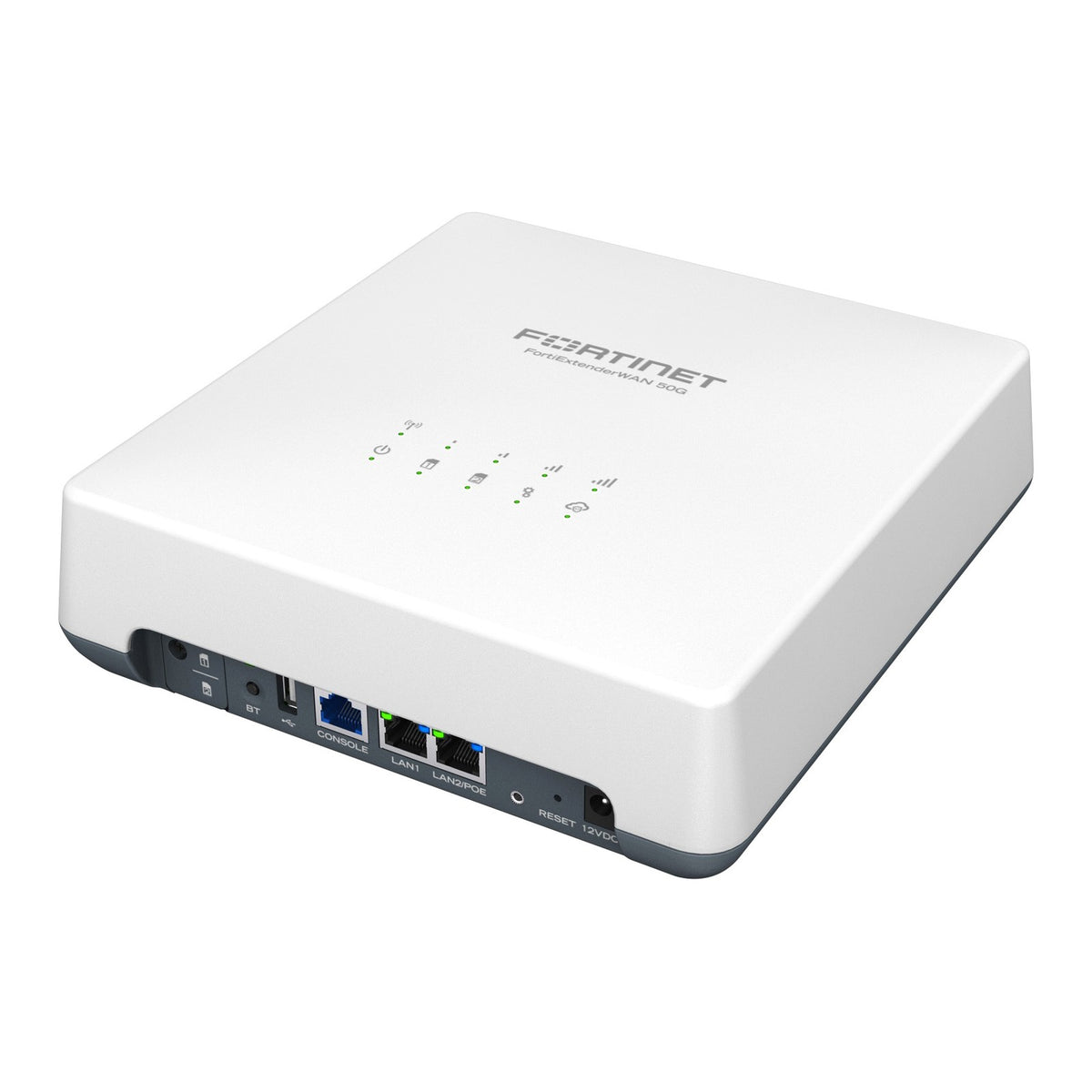

The FortiExtender WAN 50G (FEW-50G-EA) is an indoor desktop or wall-mount 5G/LTE wireless WAN gateway that extends high-speed cellular broadband to a FortiGate. This EA region model is built for EMEA, APAC and LATAM carriers, with an internal 5G modem delivering up to 7 Gbps downlink and 2.5 Gbps uplink in 5G Sub-6 SA mode, dual physical SIM plus eSIM, and 8 internal 5G/LTE antennas.

Two 5GE/2.5GE/1GE RJ45 LAN/WAN ports, a console port and a USB 3.0 Type-A port cover wired connectivity and out-of-band management. It can be powered by 802.3at PoE on LAN2 or the included 12V/3A adapter, so it can be placed up to 100 m from the FortiGate where signal is strongest. Once connected it appears as a standard network interface in FortiOS, making it well suited to branch WAN failover, primary 5G connectivity and rapid site rollouts.

Features

- Plug-and-play: appears as a regular network interface in FortiOS once connected to a FortiGate
- PoE-powered flexible deployment up to 100 m from the FortiGate or switch for optimal 5G/LTE signal
- Dual-SIM and eSIM with active/passive failover based on data plan, disconnects, signal strength and link health
- VRRP support adds hardware redundancy alongside a single FortiGate
- Out-of-band management via console or USB port
- L2 tunnel mode via VLAN or CAPWAP
- Single pane of glass management via FortiGate and FortiManager
- Private IP SIM support

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Internal single 5G modem (MediaTek T830 HMT89-EPV), 5G/LTE
- Up to 7 Gbps downlink / 2.5 Gbps uplink (5G Sub-6 SA mode)
- 2x 5GE/2.5GE/1GE LAN/WAN RJ45 ports plus 1x RJ45 console port
- 8x internal 5G/LTE antennas and 1x internal GNSS antenna
- Dual physical SIM (Nano-SIM 4FF) plus eSIM
- 1x USB 3.0 Type-A (5V/0.5A output)
- PoE 802.3at (25.5W) on LAN2 or 12V/3A power adapter (included)
- Bluetooth BLE 5.0+
- 4x4 MIMO, indoor, wall-mount or desktop
- 5G NR NSA n1/3/5/7/8/20/28/38/40/41/75/76/77/78
- 4G LTE FDD B1/3/5/7/8/20/28/32; TDD B38/40/41/42/43
- 3G WCDMA B1/5/8
- GNSS: GPS/BDS/GLONASS/Galileo/QZSS
- LAN-WAN NAT'ed Layer-3 throughput: DL/UL 2.81 Gbps / 3.10 Gbps
- IPsec VPN (wired): DL/UL 370 Mbps / 320 Mbps
- IPsec VPN (LTE/5G): DL/UL 430 Mbps / 50 Mbps
- Power consumption: 15 W average, 19 W maximum
- Dimensions: 67 x 209 x 222 mm (H x W x L), weight 1.0 kg
- Operating temperature 0 to 40 C, humidity 5% to 95% non-condensing
- Certifications: CE (EMC, RED, LVD), UL/CSA 62368-1, CB IEC/EN 62368-1, GCF, RCM, RoHS

FAQs

Q: What does the FEW-50G-EA connect to?
A: It is designed to work with a FortiGate, extending WAN connectivity over 5G/LTE. Once connected it appears as a regular network interface in FortiOS.

Q: How is the FortiExtender WAN 50G EA powered?
A: It can be powered by 802.3at PoE (25.5W) on LAN2 or by the included 12V/3A power adapter. PoE allows placement up to 100 m from the FortiGate or switch for the best signal.

Q: Does it support dual SIM and eSIM?
A: Yes. It has dual physical Nano-SIM (4FF) slots plus eSIM, with intelligent active/passive failover based on data plan, disconnects, signal strength and link health.

Q: What 5G speeds does it support?
A: The internal 5G modem supports up to 7 Gbps downlink and 2.5 Gbps uplink in 5G Sub-6 SA mode, with 4x4 MIMO and 8 internal 5G/LTE antennas.

Q: What does the EA in the SKU mean?
A: EA denotes the EMEA/APAC/LATAM region variant, built for carriers in those regions. It is not certified for FCC or IC markets.

Q: Can it be mounted on a wall?
A: Yes. It is an indoor unit that supports both desktop placement and wall mounting.
