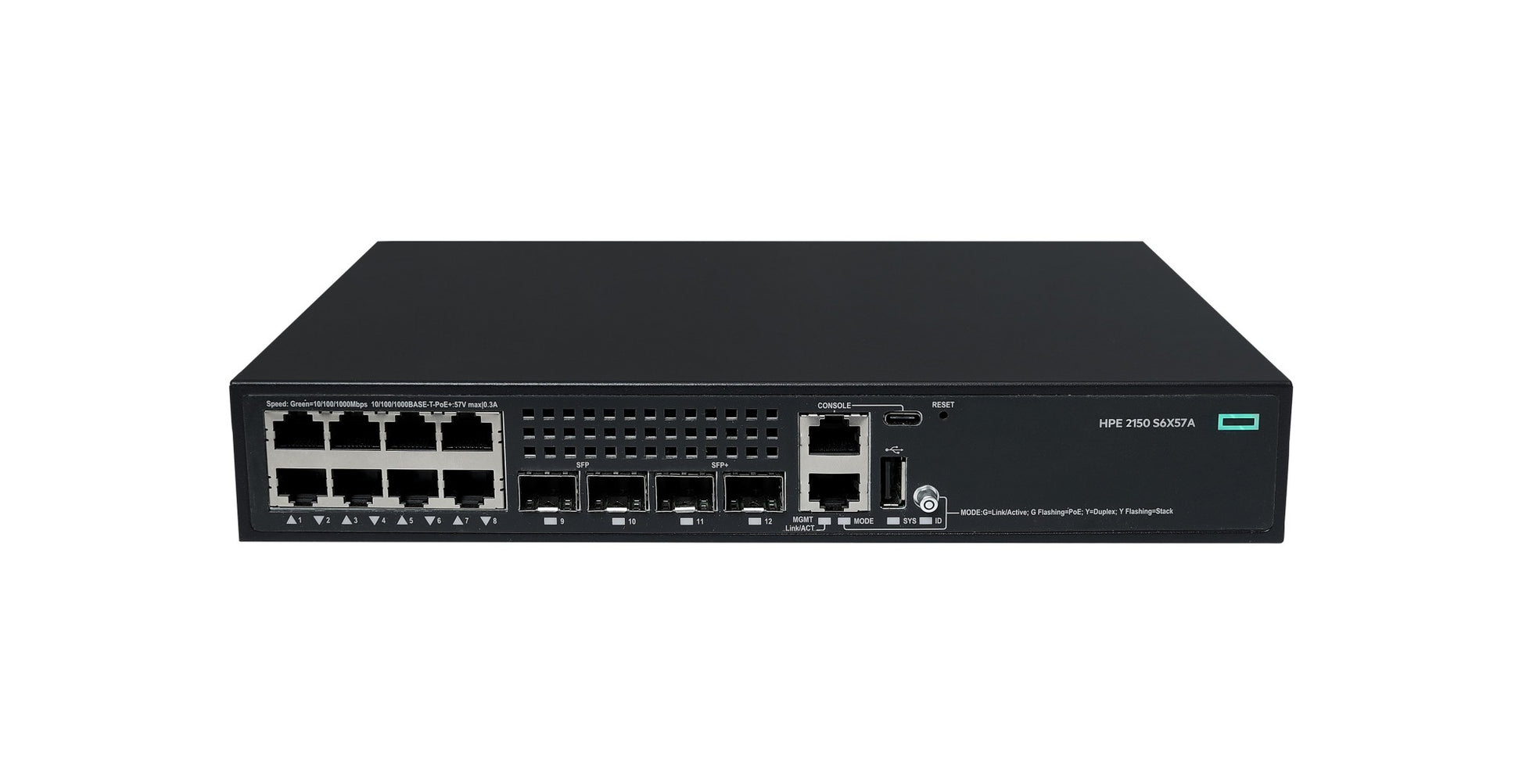

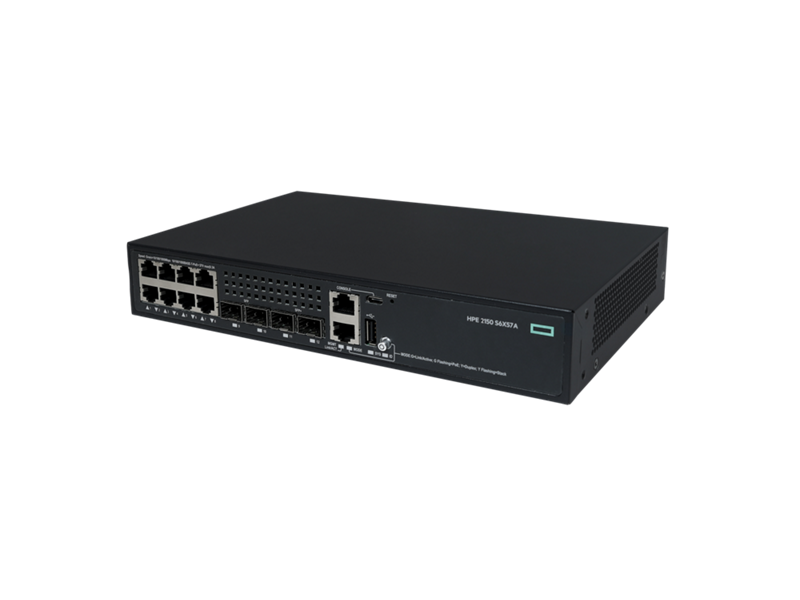

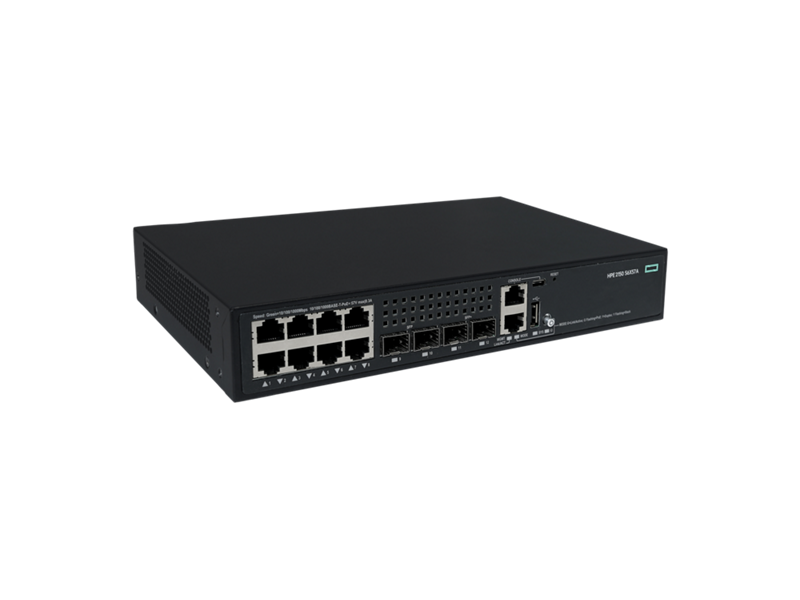

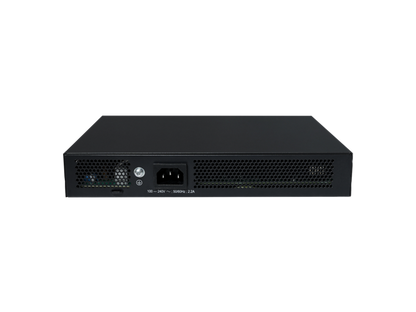

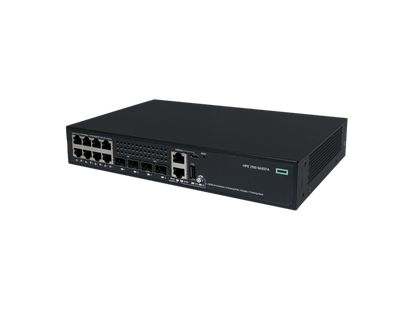

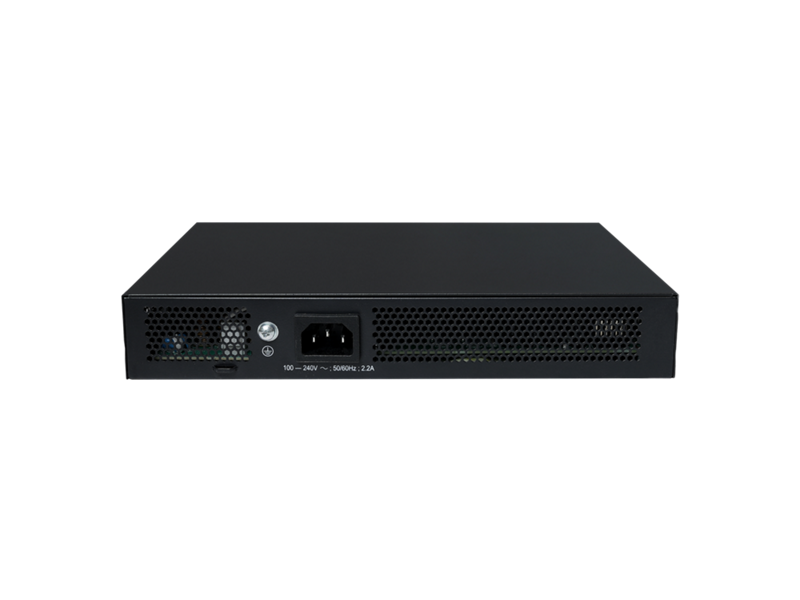

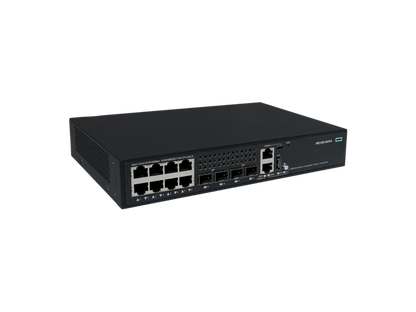

HPE S6X57A | CW 2150 8-Port Gigabit PoE+ Switch, 125W, 2x SFP + 2x SFP+ 10G

Name: HPE S6X57A | CW 2150 8-Port Gigabit PoE+ Switch, 125W, 2x SFP + 2x SFP+ 10G
Brand: HPE
SKU: S6X57A
Price: 767.7 AUD
Availability: InStock

Authorised HPE Partner

SKU:S6X57A

In stock:3

$767.70 inc. GST

$697.91 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The HPE Networking CW 2150 is a managed Layer 3 Gigabit PoE+ switch designed for small and medium-sized businesses and branch office deployments. Featuring 8 x 10M/100M/1G PoE+ ports with a 125W Class 4 budget, 2 x 1G SFP and 2 x 1G/10G SFP+ uplinks, this compact fanless 1U switch delivers enterprise-grade performance in noise-sensitive environments. Advanced capabilities include IRF stacking of up to 9 units, Fast PoE, Perpetual PoE, and Layer 3 dynamic routing with OSPF and RIP.

Built-in security features encompass granular ACLs, 802.1X authentication, DHCP snooping, ARP protection, and DoS prevention via Control Plane Policing. Management is simplified through a Web GUI, CLI, and the embedded SmartMC dashboard at no additional cost, with optional integration into HPE IMC and AirWave.

Features

- Fanless 1U compact design — silent operation for noise-sensitive deployments
- Fast PoE — delivers power to connected devices within seconds of system startup
- Perpetual PoE — maintains power to PoE devices during switch reboot or software upgrade
- PoE Watchdog — automatically removes power from a port when the connected device becomes inactive
- IRF stacking — up to 9-unit stack for resilient availability and simplified management
- Layer 3 dynamic routing — RIP, OSPF, and Policy-Based Routing (PBR)
- Multi-layer security — granular IPv4/IPv6 ACLs, 802.1X, MAC and Web authentication, RADIUS, TACACS+
- Secure boot, SSHv2, SSL, SNMPv3, TLS with role-based access and audit logging
- DHCP snooping, ARP protection, and DoS prevention via Control Plane Policing
- STP, RSTP, MSTP, PVST+, RPVST+ spanning tree support
- Embedded SmartMC (CW Dashboard) management at no additional cost — plus optional HPE IMC, AirWave, SNMP, and REST API integration
- Built-in 6 kV service-port surge protection
- IEEE 802.3az Energy Efficient Ethernet (EEE) for reduced power consumption
- IPv6 ready
- Compatible with non-HPE 1G and 10G transceivers and cables

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 8 x 10M/100M/1G PoE+ Ports (IEEE 802.3af/at, Class 4, up to 30W per port)
- 2 x 1G SFP Uplink Ports
- 2 x 1G/10G SFP+ Uplink Ports
- Total PoE Power Budget: 125W
- Switching Layer: Layer 3 Managed
- Nonblocking Switching Bandwidth: Up to 176 Gbps (series)
- Forwarding Rate: Up to 131 Mpps (series)
- Stackable: Up to 9-unit IRF (Intelligent Resilient Fabric)
- Form Factor: Fanless, Compact 1U
- Surge Protection: 6 kV built-in service-port surge protection
- Energy Efficiency: IEEE 802.3az Energy Efficient Ethernet (EEE)
- IPv6 Support: Yes

FAQs

Q: What is the total PoE power budget on the HPE CW 2150 S6X57A?
A: The HPE Networking CW 2150 S6X57A provides a total PoE power budget of 125W across its 8 x 10M/100M/1G PoE+ ports, delivering up to 30W per port in compliance with IEEE 802.3at (PoE+) Class 4.

Q: What uplink options does this switch provide?
A: The switch includes 2 x 1G SFP uplink ports and 2 x 1G/10G SFP+ uplink ports, giving you flexible fibre and high-speed uplink connectivity to aggregation or core switches. It also supports non-HPE 1G and 10G transceivers.

Q: Is the HPE CW 2150 a managed Layer 3 switch?
A: Yes. The CW 2150 is a fully managed Layer 3 switch supporting advanced dynamic routing protocols including RIP, OSPF, and Policy-Based Routing (PBR), making it suitable for deployments requiring inter-VLAN routing and more complex network topologies.

Q: Can the CW 2150 be stacked with other CW 2150 switches?
A: Yes. The CW 2150 supports HPE's IRF (Intelligent Resilient Fabric) stacking technology, allowing up to 9 units to be stacked together for simplified management, link redundancy, and improved resilience.

Q: Is this switch suitable for noise-sensitive environments such as offices or classrooms?
A: Absolutely. The CW 2150 S6X57A features a fanless design, making it completely silent and ideal for quiet environments such as open-plan offices, classrooms, and huddle rooms.

Q: Can I purchase the HPE S6X57A in Australia through IP Trading?
A: Yes. IP Trading (iptrading.com.au) is an Australian B2B IT hardware reseller supplying authentic HPE Networking products including the CW 2150 S6X57A. Contact us for pricing, availability, and volume purchasing options.
