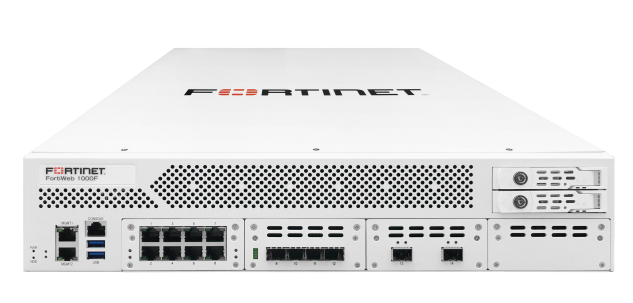

• Fortinet FortiWeb-1000F firewall with perforated front panel and Ethernet ports
1 1

Fortinet

Fortinet FWB-1000F | Web Application Firewall, 2x 10G SFP+, 8x GE Bypass

Fortinet FWB-1000F | Web Application Firewall, 2x 10G SFP+, 8x GE Bypass

Authorised Fortinet Partner

FWB-1000F

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The FWB-1000F is a 2U hardware web application and API protection (WAAP) appliance built for organisations that need to secure public-facing web applications and APIs. It combines hardware-accelerated SSL/TLS processing with 2x 10GE SFP+ ports, 8x GE RJ45 bypass ports, 4x GE SFP ports, dual AC power supplies and 2x 480GB SSD storage, delivering up to 2.5 Gbps of throughput.

The bypass ports allow fail-open deployment so web traffic keeps flowing if the appliance loses power. Active/Passive and Active/Active clustering supports high availability, while unlimited application licences and 64 administrative domains suit multi-tenant and multi-application environments. Dual hot-swappable power supplies and a built-in Trusted Platform Module add resilience and platform security.

Features

- Web application and API protection (WAAP) appliance
- Hardware-accelerated SSL/TLS processing
- Ethernet bypass ports for fail-open deployment
- Active/Passive and Active/Async clustering for high availability
- Unlimited application licences and 64 administrative domains
- Dual hot-swappable power supplies for redundancy

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x 10GE SFP+ ports (10G BASE-SR)
- 8 x GE RJ45 bypass ports
- 4 x GE SFP ports (non-bypass)
- 2 x GE management ports
- 2 x USB interfaces
- 2 x 480 GB SSD storage
- SSL/TLS processing: Hardware
- Throughput: 2.5 Gbps
- Latency: <5 ms
- Trusted Platform Module (TPM): Yes
- Dual hot-swappable AC power supplies, 100-240V AC, 50-60 Hz
- Average power consumption: 140 W
- Form factor: 2U rack-mount with flanges
- Dimensions (H x W x L): 88 x 430 x 501.2 mm
- Weight: 12.8 kg
- Operating temperature: 0 to 40 C
- Safety certifications: FCC Class A Part 15, RCM, VCCI, CE, UL/CB/cUL

FAQs

Q: What do the bypass ports on the FWB-1000F do?
A: The 8x GE RJ45 bypass ports allow the appliance to fail open, so web traffic continues to pass through if the unit loses power or fails.

Q: What throughput does the FWB-1000F support?
A: It is rated for 2.5 Gbps of throughput with latency under 5 ms.

Q: Does the FWB-1000F support high availability?
A: Yes. It supports Active/Passive and Active/Active clustering, and the dual hot-swappable power supplies add hardware redundancy.

Q: How many applications can the FWB-1000F protect?
A: It includes unlimited application licences and supports 64 administrative domains, making it suitable for multi-tenant or multi-application deployments.

Q: What network interfaces does the FWB-1000F have?
A: It provides 2x 10GE SFP+ ports, 8x GE RJ45 bypass ports, 4x GE SFP ports and 2x GE management ports.

Q: What form factor and power does the FWB-1000F use?
A: It is a 2U rack-mount appliance with dual hot-swappable AC power supplies operating on 100-240V AC, 50-60 Hz.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
