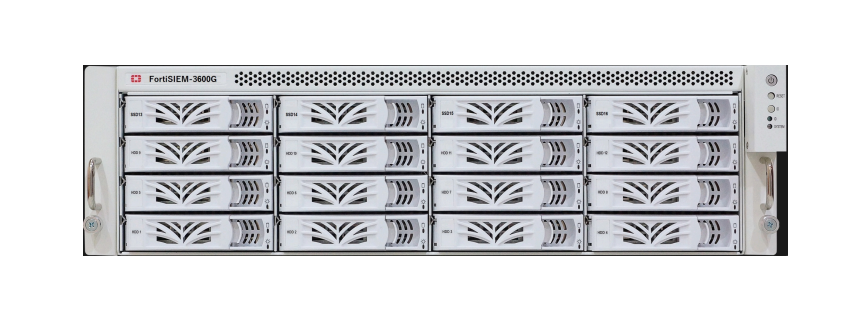

• White Fortinet FSM-3600G FortiSIEM server rack with perforated front panel
1 1

Fortinet

Fortinet FSM-3600G | FortiSIEM 3600G All-in-one SIEM Appliance, 3RU, No Licences

Fortinet FSM-3600G | FortiSIEM 3600G All-in-one SIEM Appliance, 3RU, No Licences

Authorised Fortinet Partner

FSM-3600G

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The FortiSIEM 3600G is a 3RU all-in-one SIEM hardware appliance that can be deployed as either a Supervisor or a Worker in a FortiSIEM environment. It scales to 50K EPS when used with Collectors and supports UEBA for up to 10,000 users, making it suited to large enterprise and managed security deployments. This SKU is the hardware appliance only and does not include any device or EPS licences.

The appliance pairs two Intel Xeon Gold 6226R CPUs and 128GB of DDR4 ECC REG memory with a tiered storage layout of twelve 8TB hot-swappable HDDs (96TB) and four 3.84TB hot-swappable SSDs (15.36TB). Usable event data storage is approximately 11TB on the hot SSD tier and 65TB on the warm HDD tier. Connectivity includes 2x 1GE RJ45, 2x 10GE SFP+ and 2x 25GE SFP28 ports. Device and EPS licences are purchased separately, either perpetual or subscription, and the unit is compatible with the FSM-AIO-3600-BASE perpetual licence (500 devices / 5000 EPS).

Features

- All-in-one SIEM appliance that can operate as a Supervisor or Worker
- Scales to 50K EPS when used with Collectors
- Hot SSD and warm HDD tiers for event data storage
- Supports UEBA for up to 10,000 users
- Hot-swappable HDDs and SSDs for simpler storage maintenance
- Multi-speed networking with 1GE, 10GE and 25GE ports
- Hardware only, with device and EPS licences purchased separately (perpetual or subscription)

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Role: Supervisor or Worker
- CPU: 2x Intel Xeon Gold 6226R 16C32T 2.90GHz
- Memory: 128GB DDR4 (8x 16GB ECC REG)
- Network interfaces: 2x 1GE RJ45, 2x 10GE SFP+, 2x 25GE SFP28
- Console port: DB9
- USB ports: 2x USB 3.0
- Storage: 12x 3.5 in. hot-swappable 8TB HDDs (96TB) and 4x 2.5 in. hot-swappable 3.84TB SSDs (15.36TB)
- Usable event data storage: Hot/SSD approx. 11TB, Warm/HDD approx. 65TB
- Performance benchmark: 50K EPS with Collectors
- Recommended maximum UEBA users: 10,000
- Form factor: 3RU rack-mount
- Dimensions (H x W x L): 132 x 438 x 621 mm
- Weight: 28.98 kg
- Power supply: AC 100-240 VAC, 50-60 Hz
- Maximum power consumption: 695 W
- Heat dissipation: 2370 BTU/h
- Operating temperature: 0 to 40 degrees C
- Storage temperature: -20 to 75 degrees C
- Humidity: 5% to 95% relative humidity, non-operating, non-condensing
- Airflow: front to back
- Compliance: FCC, ISED, CE, RCM, VCCI, BSMI, UL/cUL, CB

FAQs

Q: Does the FSM-3600G include device or EPS licences?
A: No. The appliance ships without any device or EPS licences. These must be purchased separately, either as perpetual or subscription licences.

Q: Can the FortiSIEM 3600G be used as a Supervisor or a Worker?
A: Yes. The 3600G can operate as either a Supervisor or a Worker node within a FortiSIEM deployment.

Q: Which perpetual licence is compatible with this appliance?
A: The FSM-AIO-3600-BASE perpetual licence, which covers 500 devices and 5000 EPS, is compatible with the FortiSIEM 3600G.

Q: What event throughput does the 3600G support?
A: It is rated at 50K EPS when used with Collectors.

Q: How much event data storage is available?
A: Usable event data storage is approximately 11TB on the hot SSD tier and approximately 65TB on the warm HDD tier, from 96TB of raw HDD and 15.36TB of raw SSD capacity.

Q: What network interfaces does the appliance provide?
A: It provides 2x 1GE RJ45, 2x 10GE SFP+ and 2x 25GE SFP28 ports, plus a DB9 console port and 2x USB 3.0 ports.
