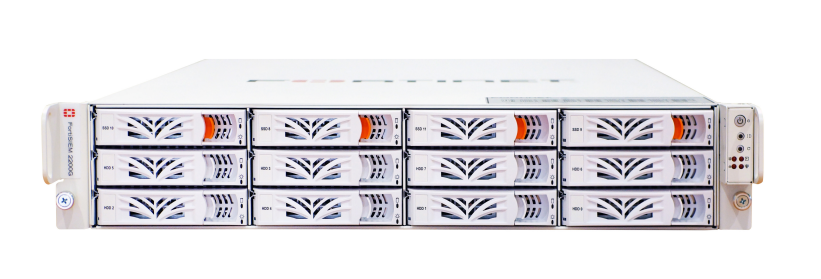

• Fortinet FSM-2200G FortiSIEM rack with white bays and black orange labels
1 1

Fortinet

Fortinet FSM-2200G | FortiSIEM 2200G All-in-One SIEM Appliance, 2U, 20K EPS

Fortinet FSM-2200G | FortiSIEM 2200G All-in-One SIEM Appliance, 2U, 20K EPS

Authorised Fortinet Partner

FSM-2200G

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The FSM-2200G is a FortiSIEM 2200G all-in-one SIEM hardware appliance in a 2U rack-mount chassis, supporting up to 20K EPS with Collectors. It can be deployed as an all-in-one, Supervisor or Worker node, delivering log management, event correlation and UEBA analytics for unified NOC and SOC visibility. This is the hardware appliance only, with no device or EPS licences included.

Built on dual Intel Xeon Silver 4210R CPUs with 128GB ECC memory, 32TB of hot-swappable HDD storage and 7.68TB of hot-swappable SSD, the appliance carries 4 x 1GbE RJ45 and 2 x 25GbE SFP28 ports plus dual power supplies. It supports out-of-the-box compliance reporting, a self-learning CMDB, multi-tenancy for MSP and MSSP environments, and up to 10,000 UEBA users. Device and EPS licences must be purchased separately.

Features

- Unified NOC and SOC analytics in a single platform
- Cross-correlation of SOC and NOC analytics with real-time network analytics
- Out-of-the-box security and compliance reporting
- Self-learning asset inventory (CMDB)
- Multi-tenancy, MSP and MSSP ready
- Deployable as All-in-one, Supervisor or Worker node in distributed deployments
- Supports NetFlow, IPFIX and SNMP trap
- Hot-swappable storage for simplified maintenance
- Dual power supplies for resilience

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Form factor: 2U rack-mount
- CPU: 2 x Intel Xeon Silver 4210R, 10C/20T, 2.4GHz
- Memory: 128GB DDR4 ECC RDIMM (8 x 16GB)
- Storage: 8 x 4TB 3.5in hot-swappable HDD (32TB) and 4 x 1.92TB 2.5in hot-swappable SSD (7.68TB)
- RAID: HDD RAID-50, SSD RAID-5
- Network interfaces: 4 x 1GbE RJ45, 2 x 25GbE SFP28
- Console port: DB9
- USB ports: 2 x USB 3.0
- Supported EPS: up to 20K EPS using Collectors (all features on)
- Maximum UEBA users: 10,000
- Power supply: dual AC, 100-240 VAC, 50-60 Hz
- Power consumption: 610 W average, 744 W maximum
- Heat dissipation: 2537 BTU/h
- Dimensions (H x W x L): 88 x 440 x 745 mm
- Weight: 26.145 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -20 to 75 C
- Humidity: 5% to 95% RH, non-condensing
- Airflow: front to back
- Device and EPS licences not included

FAQs

Q: Does the FSM-2200G include any device or EPS licences?
A: No. The FSM-2200G is the hardware appliance only. Device and EPS licences must be purchased separately.

Q: What roles can the FortiSIEM 2200G perform?
A: It can operate as an all-in-one appliance, or as a Supervisor or Worker node in a distributed FortiSIEM deployment.

Q: How many events per second does the FSM-2200G support?
A: It supports up to 20K EPS using Collectors with all features enabled, and up to 10,000 UEBA users.

Q: What network interfaces does the appliance provide?
A: It has 4 x 1GbE RJ45 ports and 2 x 25GbE SFP28 ports, along with a DB9 console port and 2 x USB 3.0 ports.

Q: How much storage does the FSM-2200G have?
A: It includes 8 x 4TB hot-swappable HDDs (32TB) and 4 x 1.92TB hot-swappable SSDs (7.68TB), configured with HDD RAID-50 and SSD RAID-5.

Q: What rack space and power does it need?
A: It is a 2U rack-mount unit with dual 100-240 VAC power supplies, drawing an average of 610 W and a maximum of 744 W.
