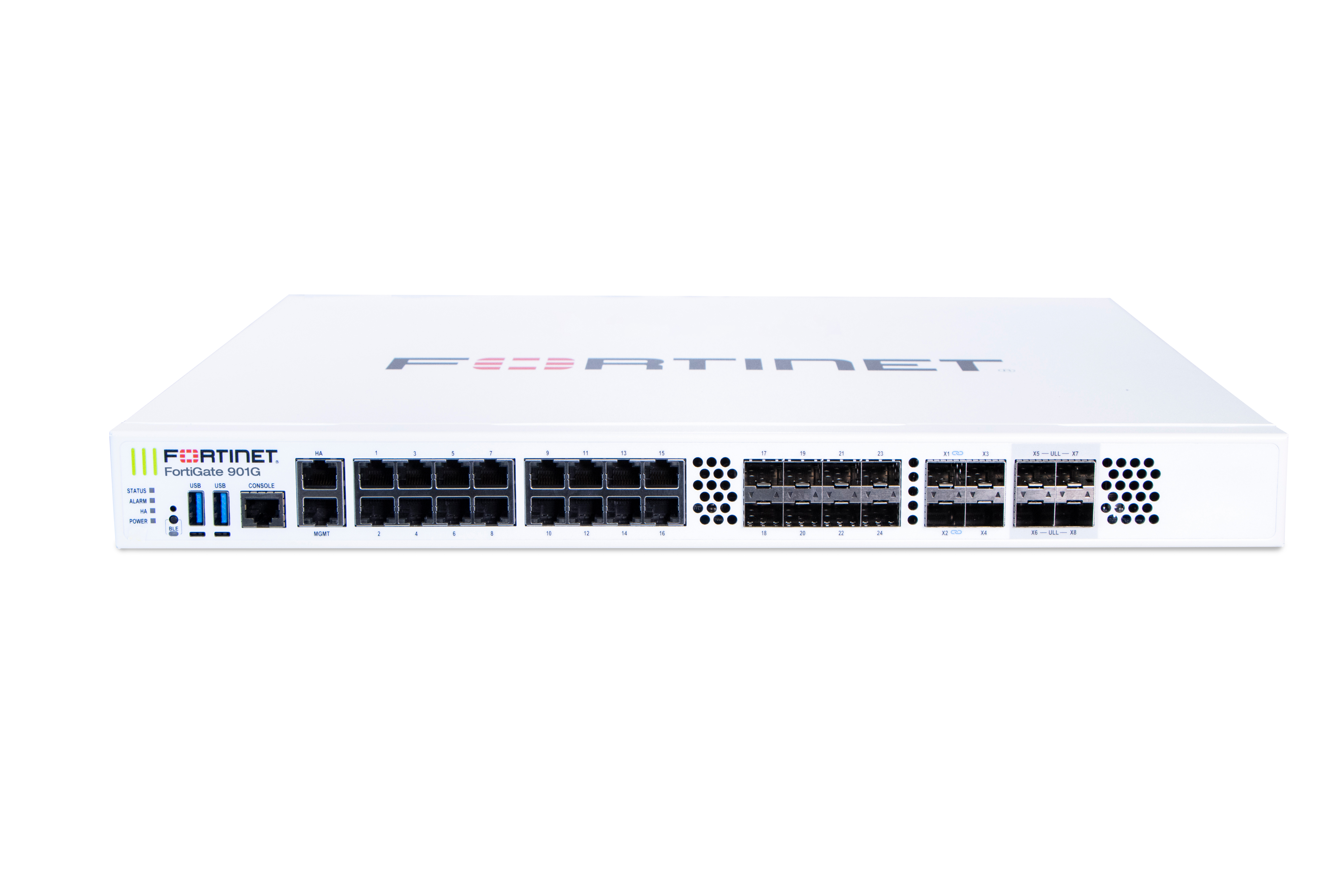

• White Fortinet FortiGate 900G rear with Ethernet ports and vents
1 1

Fortinet

Fortinet FG-900G | FortiGate 900G Next-Gen Firewall, 22 Gbps, 25G SFP28, Dual AC PSU

Fortinet FG-900G | FortiGate 900G Next-Gen Firewall, 22 Gbps, 25G SFP28, Dual AC PSU

Authorised Fortinet Partner

FG-900G

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The FortiGate 900G is a 1RU enterprise next-generation firewall for campus, data centre edge and access-layer security. Built on Fortinet's NP7 network processor and CP9 content processor, it delivers 22 Gbps of NGFW throughput and 20 Gbps of threat protection, with ultra-low-latency 25GE SFP28 ports for latency-sensitive traffic. This FG-900G model includes dual hot-swappable AC power supplies and has no onboard storage.

The unit combines 4x 25GE SFP28, 4x 10GE SFP+, 8x GE SFP and 17x GE RJ45 ports, plus a dedicated 2.5GE/GE HA port for high-availability clustering. It runs FortiOS with integrated NGFW, IPS, SSL inspection, SD-WAN and VPN capabilities, and includes an integrated TPM for hardware-based security.

Features

- Purpose-built NP7 network processor and CP9 content processor for accelerated security and networking
- Ultra-low-latency 25GE SFP28 ports for latency-sensitive applications
- Redundant hot-swappable AC power supplies
- Runs FortiOS with integrated NGFW, IPS, SSL inspection, SD-WAN and VPN capabilities
- Integrated TPM for hardware-based security

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 4 x 25GE SFP28 ultra-low latency slots (25GE/10GE)
- 4 x 10GE SFP+ slots
- 8 x GE SFP slots
- 17 x GE RJ45 ports (16 switch ports plus 1 management port)
- 1 x 2.5GE/GE HA port
- 2 x USB ports, 1 x console port
- SPU NP7 and CP9 hardware acceleration
- IPS throughput: 26 Gbps
- NGFW throughput: 22 Gbps
- Threat Protection throughput: 20 Gbps
- IPsec VPN throughput (512 byte): 55 Gbps
- SSL-VPN throughput: 10 Gbps
- Concurrent sessions (TCP): 16 million
- New sessions per second (TCP): 720,000
- Firewall policies: 10,000
- IPsec VPN tunnels: 2,000 gateway-to-gateway, 50,000 client-to-gateway
- Dual hot-swappable AC power supplies, 100-240VAC 50/60Hz
- Power consumption: 134 W average, 252 W maximum
- Form factor: 1RU rack mount, 44.45 x 432 x 380 mm
- Trusted Platform Module (TPM) included
- No onboard storage
- Includes 2 x SFP SX transceivers
- Operating temperature: 0-45 degrees C

FAQs

Q: What is the difference between the FG-900G and the FG-901G?
A: Both are FortiGate 900G models. The FG-900G has no onboard storage, while the FG-901G adds 2 x 480GB of onboard storage.

Q: Does the FG-900G have redundant power supplies?
A: Yes. It includes dual hot-swappable AC power supplies rated for 100-240VAC 50/60Hz.

Q: What throughput does the FortiGate 900G deliver?
A: It delivers 26 Gbps IPS, 22 Gbps NGFW, 20 Gbps threat protection, 55 Gbps IPsec VPN (512 byte) and 10 Gbps SSL-VPN throughput.

Q: Which ports does the FG-900G provide?
A: It provides 4 x 25GE SFP28, 4 x 10GE SFP+, 8 x GE SFP and 17 x GE RJ45 ports, plus a 2.5GE/GE HA port, 2 USB ports and a console port.

Q: Are transceivers included with the FG-900G?
A: Two SFP SX transceivers are included. SFP28 and SFP+ optics for the higher-speed ports are purchased separately.

Q: Can the FortiGate 900G run in a high-availability pair?
A: Yes. It has a dedicated 2.5GE/GE HA port for connecting units in a high-availability cluster.
