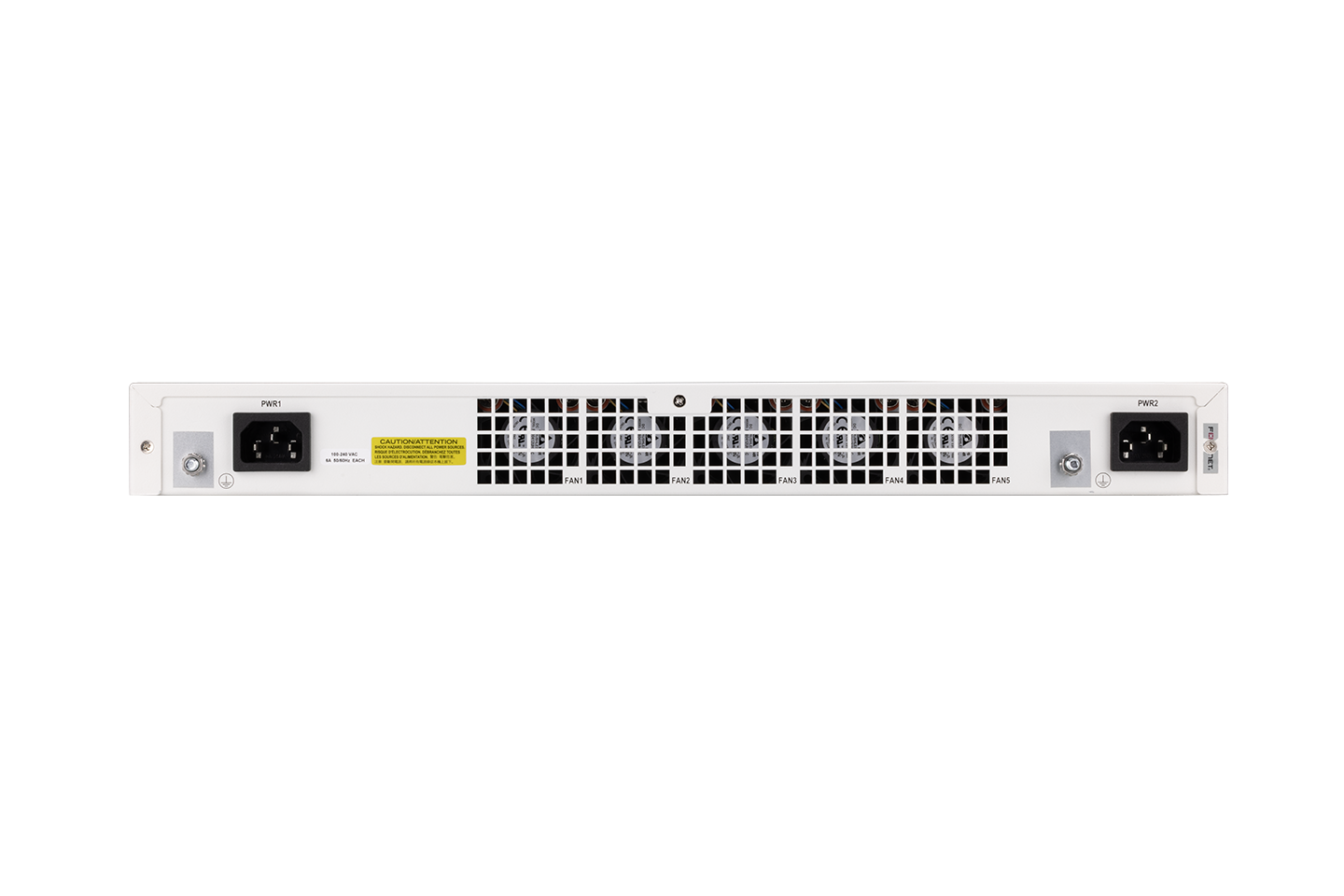

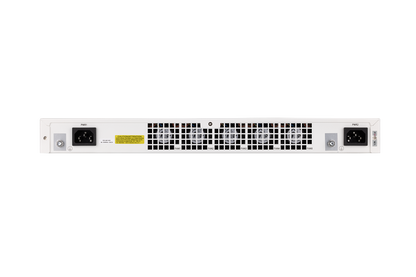

  • Back of Fortinet FortiGate-700G white switch with perforated grille, dual AC ports
  • White Fortinet FortiGate-700G security appliance rear view with ports
1 3

Fortinet

Fortinet FG-700G | Next-Gen Firewall, 38 Gbps IPS, 4x 25G SFP28, Dual AC

Fortinet FG-700G | Next-Gen Firewall, 38 Gbps IPS, 4x 25G SFP28, Dual AC

Authorised Fortinet Partner

FG-700G

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The FG-700G is a 1RU enterprise next-generation firewall built on Fortinet's NP7 network processor and CP10 content processor, delivering 38 Gbps IPS and 29 Gbps NGFW throughput. This Dual AC PSU model has no onboard storage (the FG-701G variant adds 2x 480 GB SSD) and combines 4x 25 GE SFP28, 4x 10 GE SFP+ and 16x GE SFP slots with 8x RJ45 ports for high-density campus, data centre edge and large branch deployments.

FortiOS converges networking and security, with SD-WAN, IPsec and SSL VPN, and support for Fortinet's AI-powered security bundles with FortiCare Premium. A Trusted Platform Module, hardware-signed firmware, the FortiSentry hardware module and active-active, active-passive and clustering high availability suit it to resilient, security-focused enterprise networks.

Features

- Purpose-built NP7 network processor and CP10 content processor for hardware-accelerated security
- FortiOS-based converged networking and security, including SD-WAN
- FortiSentry hardware module, physically isolated from the FortiGate OS, to detect malicious filesystem activity
- Trusted Platform Module and hardware-signed firmware
- Supports FortiGuard AI-Powered Security Bundles (Enterprise Protection, Unified Threat Protection, Advanced Threat Protection) with FortiCare Premium
- Active-active, active-passive and clustering high availability
- Dual AC power supplies for 1+1 redundancy
- Manages up to 96 FortiSwitches and 1024 FortiAPs

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 4x 25 GE SFP28 / 10 GE SFP+ slots
- 4x 10 GE SFP+ / GE SFP slots
- 16x GE SFP slots
- 8x hardware accelerated RJ45 ports
- 1x 2.5 GE / GE HA port, 1x GE management port
- 2x USB ports, 1x console port
- Includes 2x SFP SX transceivers
- IPS throughput: 38 Gbps
- NGFW throughput: 29 Gbps
- Threat Protection throughput: 26 Gbps
- IPv4 firewall throughput: 164 / 163 / 145 Gbps (1518 / 512 / 64 byte UDP)
- Firewall latency: 3.87 μs (64 byte UDP)
- IPsec VPN throughput: 55 Gbps
- SSL-VPN throughput: 8 Gbps
- SSL inspection throughput: 14 Gbps
- Concurrent sessions: 16 million
- New sessions per second: 700,000
- Firewall policies: 10,000
- Virtual domains: 10 default, 50 maximum
- Onboard storage: none
- Trusted Platform Module (TPM): yes
- Form factor: 1RU rack mount, 44.45 x 432 x 342 mm, 3.5 kg
- Power: dual non-swappable AC PSUs (1+1 redundancy), 100-240 VAC, 50/60 Hz
- Power consumption: 230 W average, 283 W maximum
- Operating temperature: 0°C to 45°C
- Compliance: FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB, USGv6/IPv6

FAQs

Q: What is the difference between the FG-700G and the FG-701G?
A: The FG-700G has no onboard storage, while the FG-701G adds 2x 480 GB SSD. Both share the same NP7 and CP10 processors and dual AC power supplies.

Q: What network interfaces does the FG-700G provide?
A: It provides 4x 25 GE SFP28 / 10 GE SFP+ slots, 4x 10 GE SFP+ / GE SFP slots, 16x GE SFP slots and 8x RJ45 ports, plus a 2.5 GE / GE HA port and a GE management port.

Q: Does the FG-700G include transceivers?
A: Yes, 2x SFP SX transceivers are included. Additional optics for the 25G, 10G and 1G slots are purchased separately.

Q: Are the power supplies redundant and hot-swappable?
A: The FG-700G has dual AC power supplies for 1+1 redundancy. They are non-swappable, so they cannot be replaced while the unit is running.

Q: What firewall throughput can the FG-700G deliver?
A: It delivers 38 Gbps IPS, 29 Gbps NGFW and 26 Gbps Threat Protection throughput, with up to 164 Gbps IPv4 firewall throughput and 16 million concurrent sessions.

Q: Does it support high availability?
A: Yes, it supports active-active, active-passive and clustering high availability configurations, with a dedicated 2.5 GE / GE HA port.
