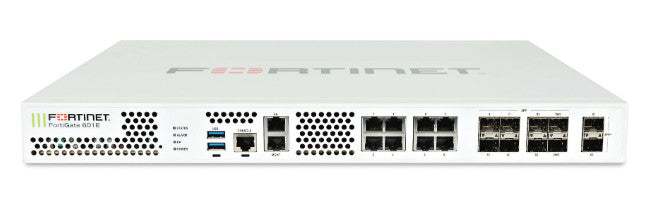

• White Fortinet FG-601E firewall back with Ethernet ports and USB slots
1 1

Fortinet

Fortinet FG-601E | Enterprise Next-Gen Firewall, 10 Gbps IPS, 2x 240GB SSD, 2x SX SFP

Fortinet FG-601E | Enterprise Next-Gen Firewall, 10 Gbps IPS, 2x 240GB SSD, 2x SX SFP

Authorised Fortinet Partner

FG-601E

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The FG-601E is an enterprise-edge and campus next-generation firewall in a 1RU rack-mount chassis, built on Fortinet SPU (NP6 and CP9) hardware acceleration and FortiOS. It delivers 36 Gbps of firewall throughput, 10 Gbps of IPS throughput, 9.5 Gbps of NGFW throughput and 7 Gbps of threat protection throughput. This SKU adds 2x 240 GB onboard SSD storage over the FG-600E and ships with two SX SFP transceivers, so it is ready to connect to multimode fibre out of the box.

Interface density includes 2x 10GE SFP+ slots, 8x GE SFP slots and 8 hardware accelerated GE RJ45 ports, plus 2x GE RJ45 management ports. Secure SD-WAN, universal ZTNA, real-time SSL inspection including TLS 1.3, and FortiLink management of FortiSwitch are all delivered on a single FortiOS platform. Optional hot-swappable redundant power supplies and Active-Active, Active-Passive and clustering high availability support resilient deployments.

Features

- Fortinet patented SPU (NP6 and CP9) hardware acceleration
- AI/ML-powered FortiGuard security services natively integrated with the NGFW
- Real-time SSL inspection including TLS 1.3
- Secure SD-WAN on one OS with unified security and management
- Universal ZTNA with agent-based (FortiClient) or agentless proxy access
- Dynamic and VXLAN segmentation to limit lateral movement
- Integrated FortiLink to manage FortiSwitch as a logical extension of the firewall
- Active-Active, Active-Passive and clustering high availability
- Optional hot-swappable redundant power supplies

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 2 x 10GE SFP+ slots
- 8 x GE SFP slots
- 8 x GE RJ45 hardware accelerated ports
- 2 x GE RJ45 management ports
- 2 x USB ports and 1 x RJ45 console port
- 2 x 240 GB onboard SSD
- 2 x SX 1 GE SFP transceivers included
- Firewall throughput: 36 Gbps (1518 byte UDP)
- IPS throughput: 10 Gbps
- NGFW throughput: 9.5 Gbps
- Threat Protection throughput: 7 Gbps
- IPsec VPN throughput: 20 Gbps (512 byte)
- SSL-VPN throughput: 7 Gbps
- SSL inspection throughput: 8 Gbps (IPS, avg. HTTPS)
- Concurrent sessions: 8 million (TCP)
- New sessions per second: 450,000 (TCP)
- Firewall latency: 1.54 μs (64 byte, UDP)
- Virtual domains: 10 default, 50 maximum
- Form factor: 1 RU rack mount
- Dimensions (H x W x L): 44.45 x 432 x 380 mm
- Weight: 7.5 kg
- Power source: 100-240V, 50/60 Hz
- Power consumption: 129 W average, 244 W maximum
- Operating temperature: 0 to 40 C
- Compliance: FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB

FAQs

Q: How does the FG-601E differ from the FG-600E?
A: The FG-601E adds 2x 240 GB onboard SSD storage over the FG-600E and ships with two SX SFP transceivers.

Q: What interfaces does the FG-601E provide?
A: It has 2x 10GE SFP+ slots, 8x GE SFP slots, 8 hardware accelerated GE RJ45 ports and 2x GE RJ45 management ports, plus 2 USB ports and an RJ45 console port.

Q: Are transceivers included?
A: Yes, two SX 1 GE SFP transceivers are included for multimode fibre connections.

Q: What throughput can I expect with security features enabled?
A: The FG-601E is rated at 10 Gbps IPS, 9.5 Gbps NGFW and 7 Gbps threat protection throughput, with 36 Gbps of raw firewall throughput.

Q: Does it support high availability?
A: Yes, it supports Active-Active, Active-Passive and clustering configurations, and has a dedicated HA port.

Q: Can it manage FortiSwitch and FortiAP devices?
A: Yes, FortiLink lets it manage up to 96 FortiSwitches, and it supports up to 1024 FortiAPs in total (512 in tunnel mode).

Q: Does it support redundant power supplies?
A: Hot-swappable redundant power supplies are available as an option.
