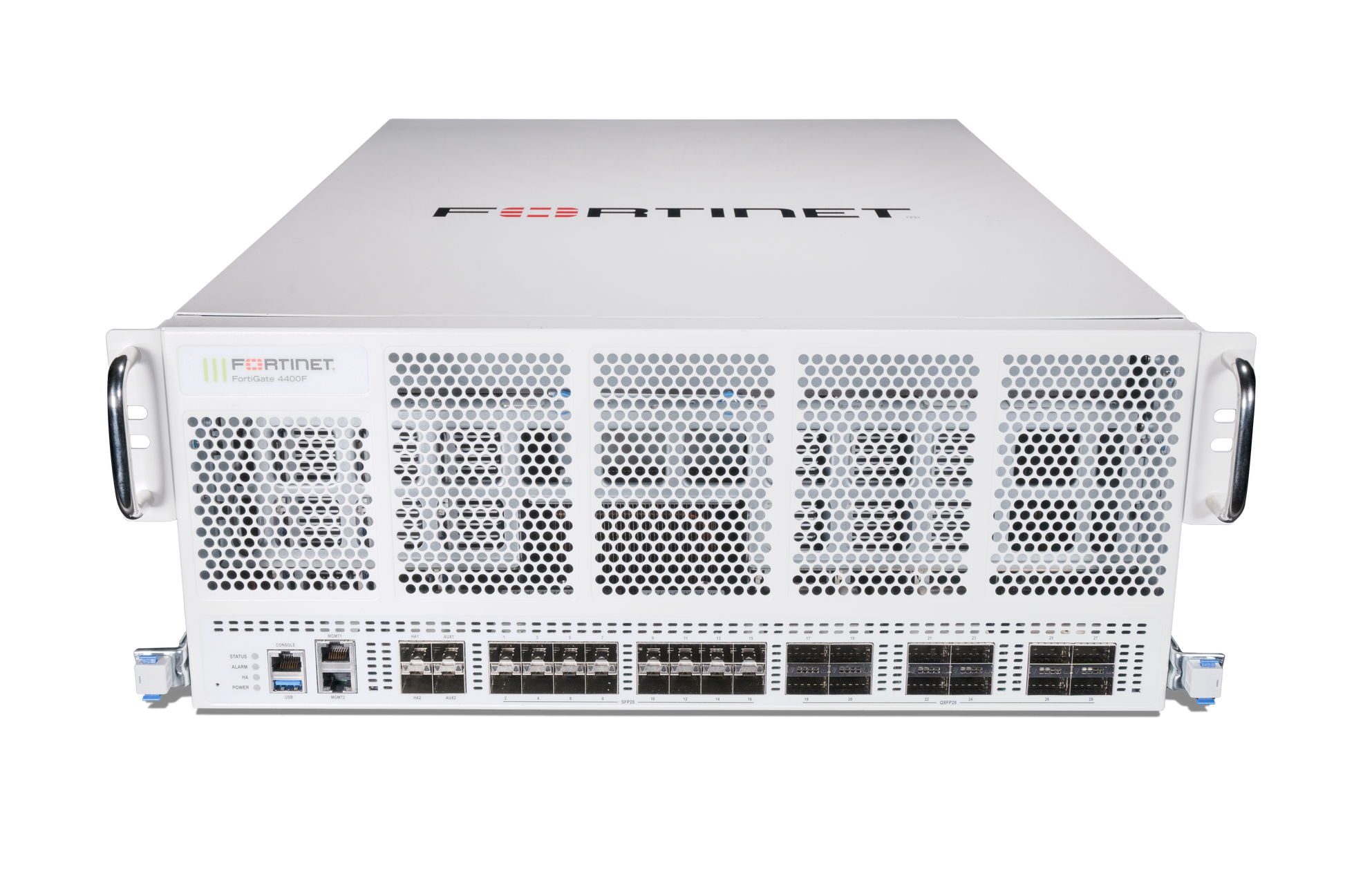

• Fortinet FG-4401F-USG FortiGate-4401F white security appliance front view
1 1

Fortinet

Fortinet FG-4401F-USG | 4401F USG Next-Gen Firewall, 12x 100GE QSFP28, 82 Gbps

Fortinet FG-4401F-USG | 4401F USG Next-Gen Firewall, 12x 100GE QSFP28, 82 Gbps

Authorised Fortinet Partner

FG-4401F-USG

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The FortiGate 4401F USG is a high-end data-centre next-generation firewall in a 4RU chassis, delivering 82 Gbps of NGFW throughput and 94 Gbps of IPS throughput. It provides 12x 100GE/40GE QSFP28 slots and 18x 25GE/10GE SFP28 slots, with SPU NP7 and CP9 hardware acceleration. This USG variant carries USGv6/IPv6 certification for US government style requirements and includes four hot-swappable AC power supplies (2+2 redundant) and 2x 1.92TB onboard SSD storage.

FortiOS brings converged networking and security to the platform, with consolidated FortiGuard security services, integrated ZTNA enforcement and real-time SSL inspection including TLS 1.3. High availability is supported in active-active, active-passive and clustering modes, while a hot-swappable fan tray and redundant power supplies suit demanding core and data-centre edge deployments.

Features

- SPU NP7 and CP9 hardware acceleration
- Secure networking with FortiOS for converged networking and security
- Consolidated AI/ML-powered FortiGuard security services
- Integrated Zero Trust Network Access (ZTNA) enforcement
- Real-time SSL inspection including TLS 1.3
- Dynamic segmentation and VXLAN segmentation
- Hyperscale firewall support (with licence)
- Hot-swappable redundant power supplies and fan tray
- Active-Active, Active-Passive and clustering HA

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 12 x 100GE/40GE QSFP28/QSFP+ slots
- 18 x 25GE/10GE/GE SFP28/SFP+/SFP slots (16 data + 2 HA)
- 2 x GE RJ45 management ports
- NGFW throughput 82 Gbps
- IPS throughput 94 Gbps
- Threat Protection throughput 75 Gbps
- IPv4 firewall throughput 1.15 Tbps (1518 byte UDP)
- IPsec VPN throughput 310 Gbps (512 byte)
- Concurrent sessions 210 million
- Onboard storage 2x 1.92TB SSD
- 4 x hot-swappable AC power supplies (2+2 redundant)
- Includes 2x SFP+ SR 10 GE transceivers
- 4 RU rack mount, 177 x 437 x 665 mm, 37.7 kg
- USGv6/IPv6 certified

FAQs

Q: What does the USG suffix mean on the FG-4401F-USG?
A: USG denotes the US government variant, which carries USGv6/IPv6 certification. It uses the same 4400F series hardware platform.

Q: What network interfaces does the FortiGate 4401F USG provide?
A: It has 12x 100GE/40GE QSFP28 slots, 18x 25GE/10GE/GE SFP28 slots (16 data and 2 HA) and 2x GE RJ45 management ports. Two SFP+ SR 10 GE transceivers are included.

Q: Does it include onboard storage?
A: Yes. The 4401F model includes 2x 1.92TB onboard SSD storage.

Q: Is the power supply redundant?
A: Yes. It has four hot-swappable AC power supplies in a 2+2 redundant configuration, plus a hot-swappable fan tray.

Q: What throughput can I expect with threat protection enabled?
A: NGFW throughput is 82 Gbps, IPS throughput is 94 Gbps and Threat Protection throughput is 75 Gbps.

Q: Which high availability modes are supported?
A: Active-Active, Active-Passive and clustering configurations are supported.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
