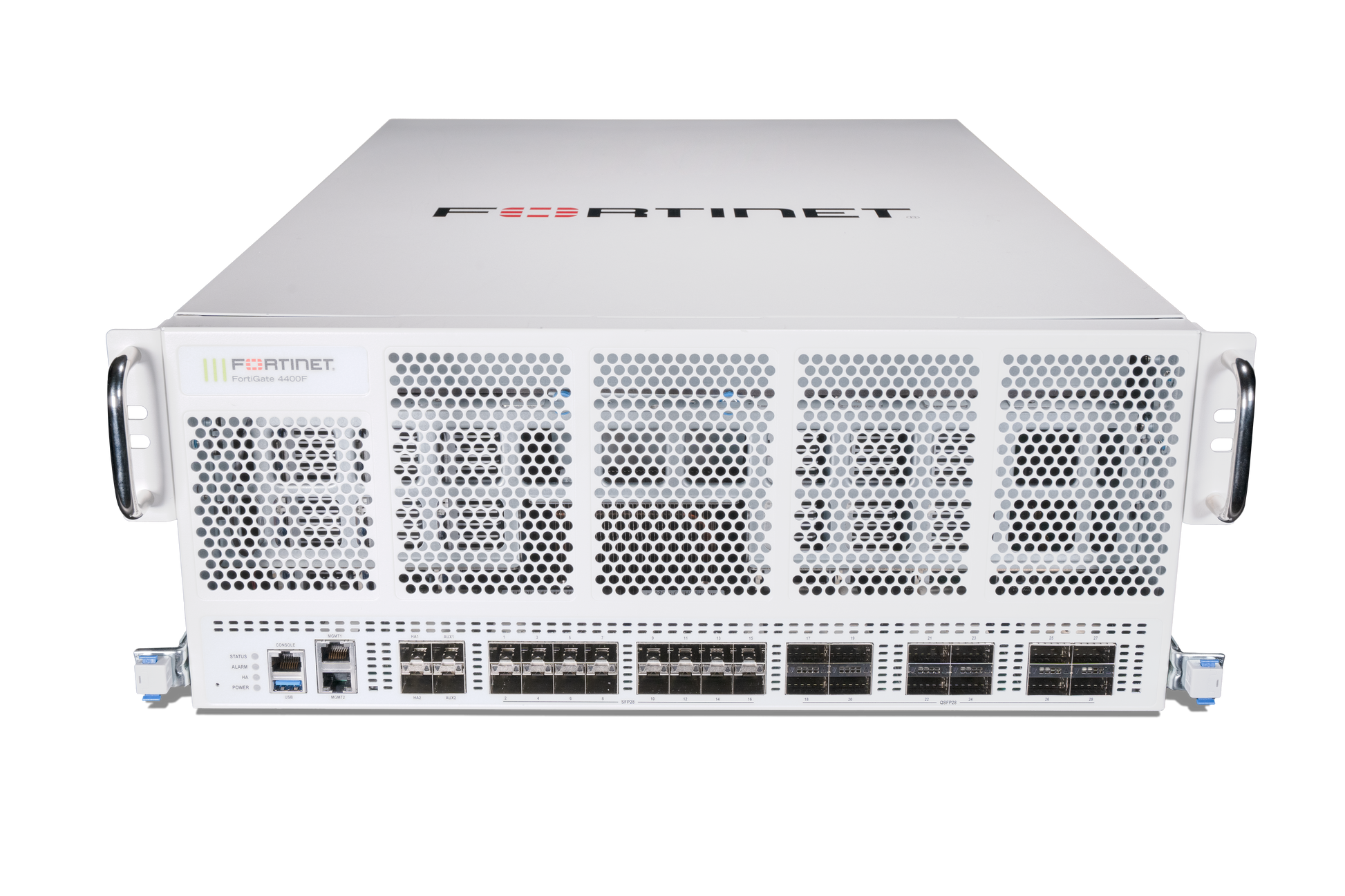

• Fortinet FG-4401F-DC FortiGate-4401F white security appliance front view
1 1

Fortinet

Fortinet FG-4401F-DC | FortiGate 4401F Data Centre Firewall, 100GE, DC, 2x 2TB

Fortinet FG-4401F-DC | FortiGate 4401F Data Centre Firewall, 100GE, DC, 2x 2TB

Authorised Fortinet Partner

FG-4401F-DC

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The FortiGate 4401F-DC is a 4RU data centre and hyperscale next-generation firewall with 12 x 100GE/40GE QSFP28 slots and a high-density bank of 25GE/10GE SFP28 ports. SPU NP7 and CP9 hardware acceleration deliver 1.15 Tbps of IPv4 firewall throughput, 82 Gbps NGFW throughput and 310 Gbps IPsec VPN throughput. This DC variant is fitted with redundant hot-swappable -48V to -60V DC power supplies and 2x 2TB onboard SSD storage, making it suited to telco and carrier-grade facilities running DC power.

It supports up to 500 virtual domains, high availability clustering and an optional Hyperscale Firewall License that accelerates session setup and logging in hardware. Application control, IPS, SSL inspection and Threat Protection run on the same platform, and the hot-swappable fan tray and 1+1 power supplies support continuous operation in core network deployments.

Features

- SPU NP7 and CP9 hardware acceleration for high-performance firewall, VPN and inspection
- Identifies thousands of applications inside network traffic
- Optional Hyperscale Firewall License for hardware session setup acceleration and logging
- Redundant hot-swappable DC power supplies and hot-swappable fan tray
- ICSA Labs certified for Firewall, IPsec, IPS, Antivirus and SSL-VPN
- Supports up to 500 virtual domains and high availability clustering

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 12 x 100GE/40GE QSFP28 slots
- 16 x 25GE/10GE/GE SFP28 slots plus 2 HA and 2 AUX SFP28 slots
- 2 x GE RJ45 management ports, 1 x USB 3.0 port, 1 x console port
- 2x 2TB onboard SSD storage
- Includes 2x SFP+ (SR 10GE) transceivers
- IPv4 firewall throughput: 1.15 Tbps (1518 byte UDP)
- IPS throughput: 94 Gbps
- NGFW throughput: 82 Gbps
- Threat Protection throughput: 75 Gbps
- IPsec VPN throughput: 310 Gbps (512 byte)
- SSL-VPN throughput: 16 Gbps
- Concurrent sessions: 210 million (700 million with Hyperscale Firewall License)
- New sessions per second: 1 million (10 million with Hyperscale Firewall License)
- Virtual domains: 10 default, 500 maximum
- Redundant hot-swappable 1+1 DC power supplies, -48V to -60V DC
- Power consumption: 1539W average, 1881W maximum
- Form factor: 4RU rack mount, 177 x 437 x 665 mm, 37.7 kg
- Airflow: front to back, hot-swappable fan tray

FAQs

Q: What power does the FG-4401F-DC use?
A: It uses redundant hot-swappable 1+1 DC power supplies operating from -48V to -60V DC, suited to telco and data centre sites with DC power.

Q: How much onboard storage does it include?
A: The FG-4401F-DC includes 2x 2TB onboard SSD storage for local logging and reporting.

Q: Does it come with transceivers?
A: Yes, it includes 2x SFP+ (SR 10GE) transceivers. Other optics for the QSFP28 and SFP28 slots are purchased separately.

Q: What is the Hyperscale Firewall License used for?
A: It is an optional licence that accelerates session setup and logging in hardware, increasing capacity to 700 million concurrent sessions and 10 million new sessions per second.

Q: Which port speeds are supported?
A: The 12 QSFP28 slots support 100GE or 40GE, and the SFP28 slots support 25GE, 10GE or GE, depending on the installed optics.

Q: Can it run in high availability?
A: Yes, it supports active-passive, active-active and clustering high availability configurations, with dedicated HA SFP28 slots.
