Fortinet FG-401G | Next-Gen Firewall, 25GE SFP28, 14 Gbps NGFW

Authorised Fortinet Partner

SKU:FG-401G

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

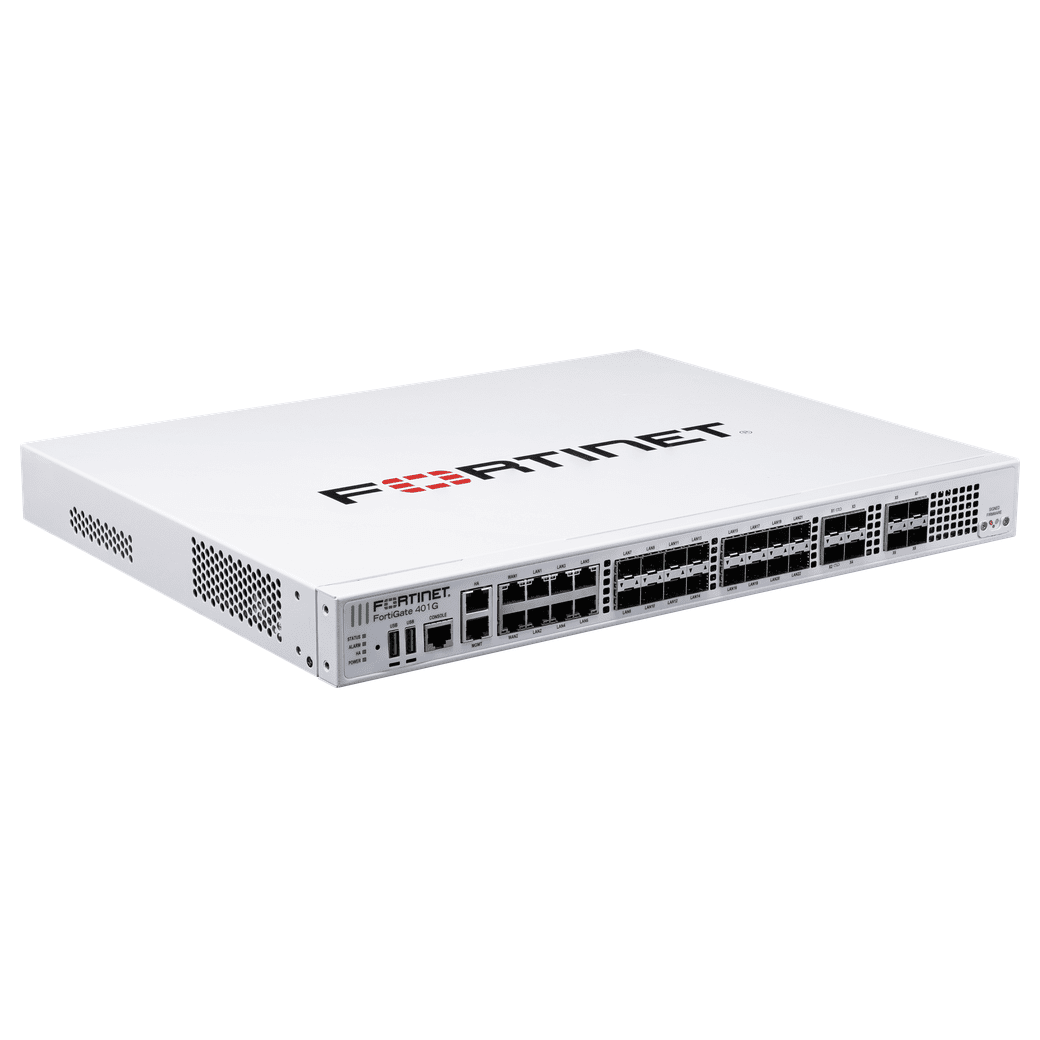

The Fortinet FortiGate 401G is a 1 RU next-generation firewall appliance built for mid-range enterprise and campus edge deployments. It combines SPU NP7 and CP10 hardware acceleration with high-density connectivity, including 4 x 25GE SFP28, 4 x 10GE SFP+, 16 x GE SFP and 8 x 5GE RJ45 ports, delivering 164 Gbps of firewall throughput and 14 Gbps of NGFW throughput.

A 960 GB onboard SSD provides local storage for logging and reporting, while dual AC power supplies support resilient operation in a 1 RU chassis. The appliance runs FortiOS and integrates with the Fortinet Security Fabric, with support for IPS, application control, hardware-accelerated IPsec VPN and SSL inspection. It can manage up to 512 FortiAPs and 96 FortiSwitches.

Features

- SPU NP7 network processor and CP10 content processor hardware acceleration
- Next-generation firewall with IPS, application control and threat protection
- Hardware-accelerated IPsec VPN and SSL inspection
- Redundant dual AC power supplies
- Managed via FortiOS with Fortinet Security Fabric integration
- Supports up to 512 FortiAPs and 96 FortiSwitches
- Default 10 virtual domains, expandable to 50

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 4 x 25GE SFP28 ports
- 4 x 10GE SFP+ ports
- 16 x GE SFP ports
- 8 x 5GE RJ45 ports
- 1 x 2.5GE RJ45 (HA) and 1 x GE RJ45 (MGMT)
- Firewall throughput: 164 / 163 / 145 Gbps (1518/512/64 byte UDP)
- IPsec VPN throughput: 55 Gbps (512 byte)
- IPS throughput: 25 Gbps
- NGFW throughput: 14 Gbps
- Threat Protection throughput: 13 Gbps
- SSL inspection throughput: 11.5 Gbps (IPS, avg. HTTPS)
- Firewall latency: 2.51 μs
- Concurrent sessions: 28 million
- New sessions per second: 580,000
- 960 GB onboard SSD storage

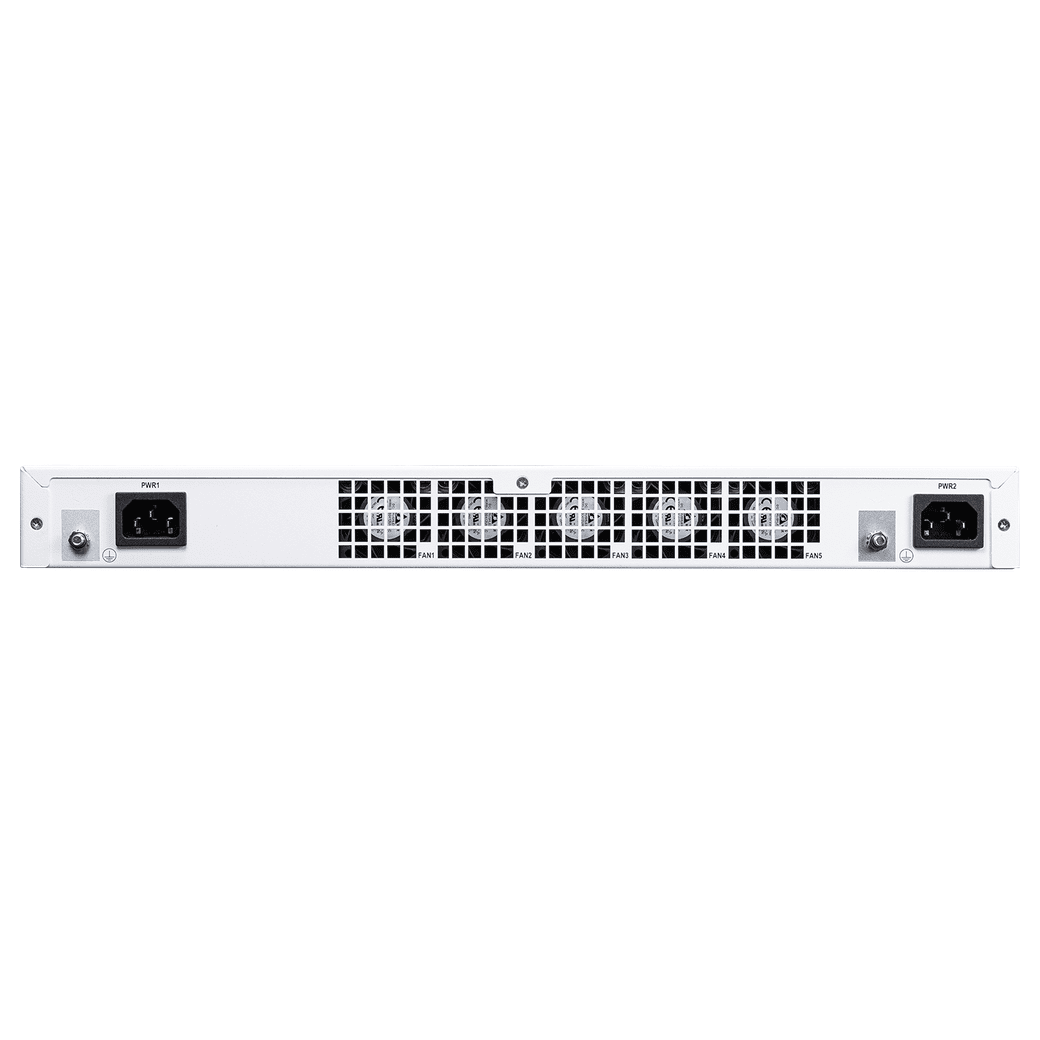

- Dual AC power supplies
- Form factor: 1 RU

FAQs

Q: What network ports does the FortiGate 401G provide?
A: It provides 4 x 25GE SFP28, 4 x 10GE SFP+, 16 x GE SFP and 8 x 5GE RJ45 ports, plus a 2.5GE RJ45 port for HA and a GE RJ45 port for management.

Q: What throughput can the FortiGate 401G deliver?
A: It delivers 164 Gbps of firewall throughput (1518 byte UDP), 25 Gbps of IPS throughput, 14 Gbps of NGFW throughput and 13 Gbps of Threat Protection throughput.

Q: Does the FortiGate 401G include local storage?
A: Yes, it includes 960 GB of onboard SSD storage for local logging and reporting.

Q: Does the FortiGate 401G have redundant power?
A: Yes, it is fitted with dual AC power supplies in a 1 RU chassis.

Q: How many FortiAPs and FortiSwitches can it manage?
A: It can manage up to 512 FortiAPs (256 in tunnel mode) and up to 96 FortiSwitches.

Q: How many virtual domains does the FortiGate 401G support?
A: It includes 10 virtual domains by default and supports up to 50.
