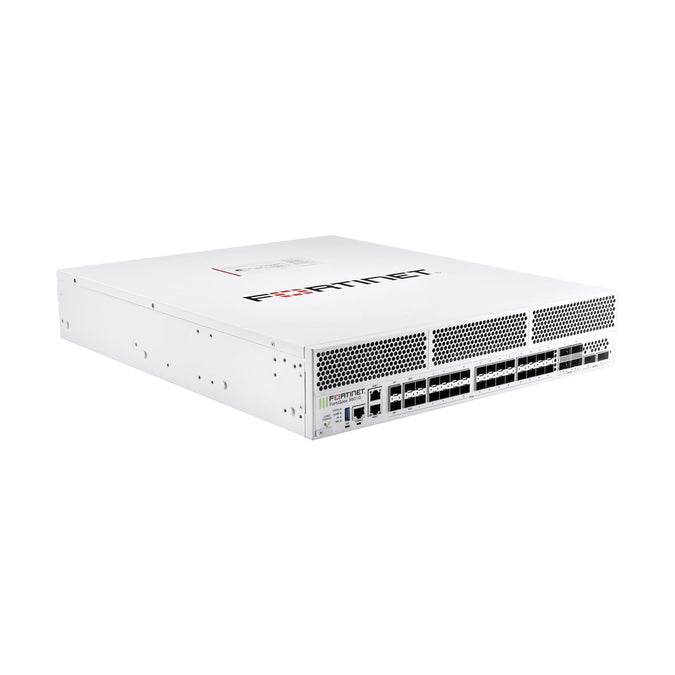

Fortinet FG-3500G | 3500G Next-Gen Firewall, 2x 400GE QSFP-DD, 4x 100GE

Authorised Fortinet Partner

SKU:FG-3500G

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The FortiGate 3500G is a high-performance 2RU next-generation firewall built for large enterprise and data centre edge deployments. It combines 2x 400GE QSFP-DD, 4x 100GE QSFP28, 30x 25GE SFP28 and 2x 10GE RJ45 interfaces with SPU NP7 and CP10 hardware acceleration, delivering up to 595 Gbps of firewall throughput and 125 Gbps of IPS throughput. This SKU includes 2x 1.92TB local storage and dual AC power supplies.

Running FortiOS, the 3500G brings NGFW, IPS, SSL inspection and application control into the Fortinet Security Fabric, with support for up to 500 virtual domains for multi-tenant and segmented environments. High session capacity and dense 400GE, 100GE and 25GE connectivity make it suited to core and perimeter roles where throughput and port density are critical.

Features

- SPU NP7 and CP10 hardware acceleration for high-throughput security processing
- Dual AC power supplies for redundancy
- FortiOS-based Security Fabric integration with NGFW, IPS, SSL inspection and application control
- High-density 400GE, 100GE and 25GE connectivity for data centre and enterprise edge deployments
- Supports up to 500 virtual domains for multi-tenant segmentation
- 2x 1.92TB local storage for logging and reporting

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Interfaces: 2x 400GE QSFP-DD, 4x 100GE QSFP28, 30x 25GE SFP28, 2x 10GE RJ45
- Firewall throughput: 595 / 590 / 420 Gbps (1518 / 512 / 64 byte UDP)
- IPsec VPN throughput: 163 Gbps (512 byte)
- IPS throughput: 125 Gbps (Enterprise Mix)
- NGFW throughput: 115 Gbps (Enterprise Mix)
- Threat Protection throughput: 105 Gbps (Enterprise Mix)
- SSL inspection throughput: 112 Gbps (IPS, avg. HTTPS)
- Application control throughput: 197 Gbps (HTTP 64K)
- Concurrent sessions: 179 million
- New sessions per second: 1.1 million
- Firewall latency: 2.96 μs
- Firewall policies: 200,000
- Virtual domains: 10 default, 500 maximum
- Local storage: 2x 1.92TB
- Power: dual AC power supplies
- Form factor: 2 RU

FAQs

Q: What interfaces does the FortiGate 3500G have?
A: It provides 2x 400GE QSFP-DD, 4x 100GE QSFP28, 30x 25GE SFP28 and 2x 10GE RJ45 interfaces.

Q: What firewall throughput does the FortiGate 3500G deliver?
A: Firewall throughput is 595 Gbps at 1518 byte, 590 Gbps at 512 byte and 420 Gbps at 64 byte UDP packets. IPS throughput is 125 Gbps and NGFW throughput is 115 Gbps with Enterprise Mix traffic.

Q: Does this model include local storage?
A: Yes, this SKU includes 2x 1.92TB of local storage.

Q: Does it have redundant power?
A: Yes, it ships with dual AC power supplies for redundancy.

Q: How many virtual domains does it support?
A: It supports 10 virtual domains by default and up to 500 maximum.

Q: What hardware acceleration does the 3500G use?
A: It uses Fortinet SPU NP7 network processors and CP10 content processors to accelerate firewall, VPN and security inspection workloads.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
