• White Fortinet FortiGate 3001F with 16x SFP28 and 18x 10G ports
1 1

Fortinet

Fortinet FG-3001F | 3000F Enterprise Firewall, 6x 100GE QSFP28, 2x SSD, AC

Fortinet FG-3001F | 3000F Enterprise Firewall, 6x 100GE QSFP28, 2x SSD, AC

Authorised Fortinet Partner

FG-3001F

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

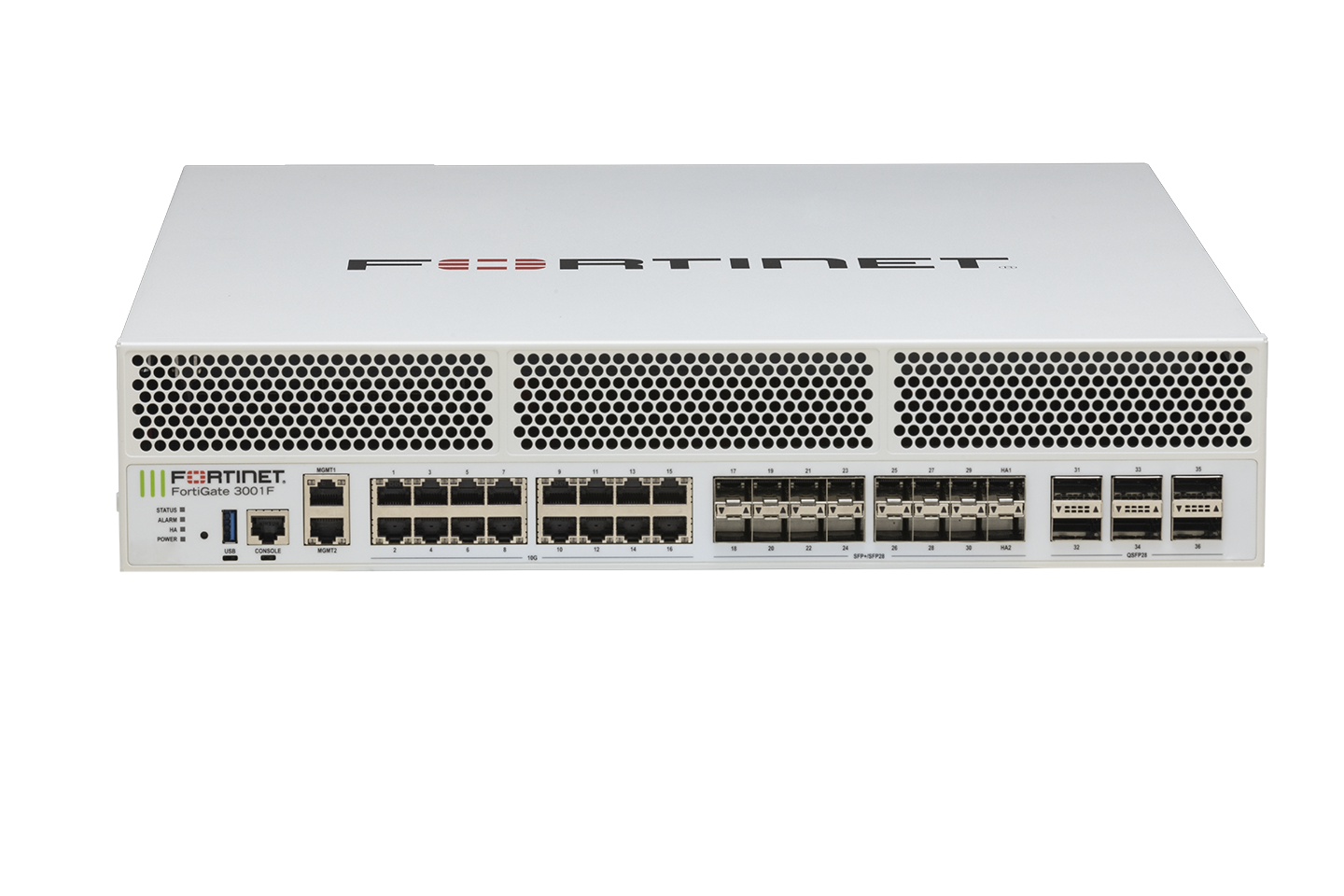

The FG-3001F is a 2U FortiGate 3000F enterprise next-generation firewall built for large enterprise and service provider core networks. It provides 6x 100GE QSFP28 slots and 16x 25GE SFP28 slots, backed by NP7 network processor and CP9 content processor hardware acceleration, with IPv4 firewall throughput of up to 397 Gbps and NGFW throughput of 34 Gbps. This SKU is the AC power model with 2x onboard SSD storage, which the FG-3000F does not include.

Beyond the high-speed fibre interfaces, it adds 16x 10GE RJ45 ports and 2x management ports, hot-swappable redundant AC power supplies and an onboard TPM. Active-Active, Active-Passive and clustering high availability, plus support for up to 500 virtual domains, make it suited to segmenting and protecting high-throughput data centre and core environments.

Features

- NP7 network processor and CP9 content processor hardware acceleration
- High port density with 100GE, 25GE and 10GE interfaces for core network segmentation
- Next-generation firewall, IPS and threat protection
- Onboard TPM
- Hot-swappable redundant AC power supplies
- Active-Active, Active-Passive and clustering HA
- Supports up to 500 virtual domains

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 6 x 100GE QSFP28 / 40GE QSFP+ slots
- 16 x 25GE SFP28 / 10GE SFP+ / GE SFP slots (14 data + 2 HA)
- 16 x 10GE / 5GE / 2.5GE / GE RJ45 ports
- 2 x 10GE / GE RJ45 management ports
- SPU NP7 and CP9 hardware acceleration
- Onboard storage: 2x SSD
- IPv4 firewall throughput: 397 / 389 / 221 Gbps (1518 / 512 / 64 byte UDP)
- IPS throughput: 36 Gbps
- NGFW throughput: 34 Gbps
- Threat protection throughput: 33 Gbps
- IPsec VPN throughput: 105 Gbps (512 byte)
- SSL inspection throughput: 29 Gbps
- Concurrent sessions (TCP): 70 million
- New sessions per second (TCP): 870,000
- Firewall policies: 200,000
- Virtual domains: 10 default, 500 maximum
- Redundant hot-swappable AC power supplies, 100-240V AC
- 2U rack mount, 88.9 x 443 x 556 mm, 17.3 kg
- Included transceivers: 2x SFP+ SR 10GE
- Trusted Platform Module (TPM)

FAQs

Q: What is the difference between the FG-3001F and the FG-3000F?
A: The FG-3001F includes 2x onboard SSD storage and AC power supplies, while the FG-3000F has no onboard storage.

Q: What interfaces does the FG-3001F provide?
A: It has 6x 100GE QSFP28 slots, 16x 25GE SFP28 slots (including 2 HA slots), 16x 10GE RJ45 ports and 2x 10GE/GE RJ45 management ports.

Q: Does it have redundant power?
A: Yes. It uses hot-swappable redundant AC power supplies rated 100-240V AC, 50/60 Hz.

Q: What is the NGFW throughput?
A: NGFW throughput is 34 Gbps, with IPS at 36 Gbps and threat protection at 33 Gbps.

Q: Does it support virtual domains?
A: Yes. 10 virtual domains are included by default and it supports up to 500.

Q: What high availability modes are supported?
A: Active-Active, Active-Passive and clustering.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
