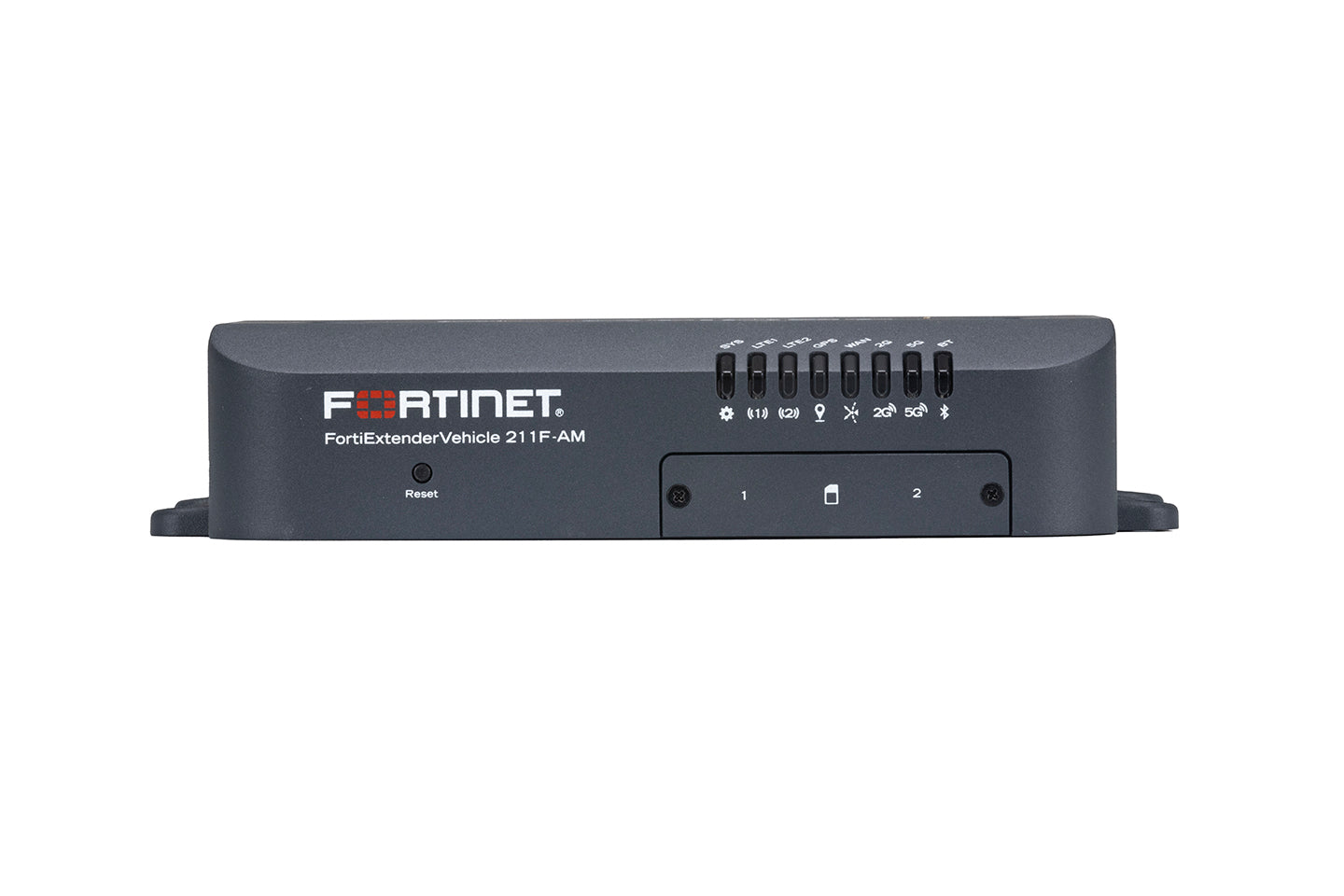

• Dark gray Fortinet FortiExtenderVehicle 211F-AM LTE router with indicator lights

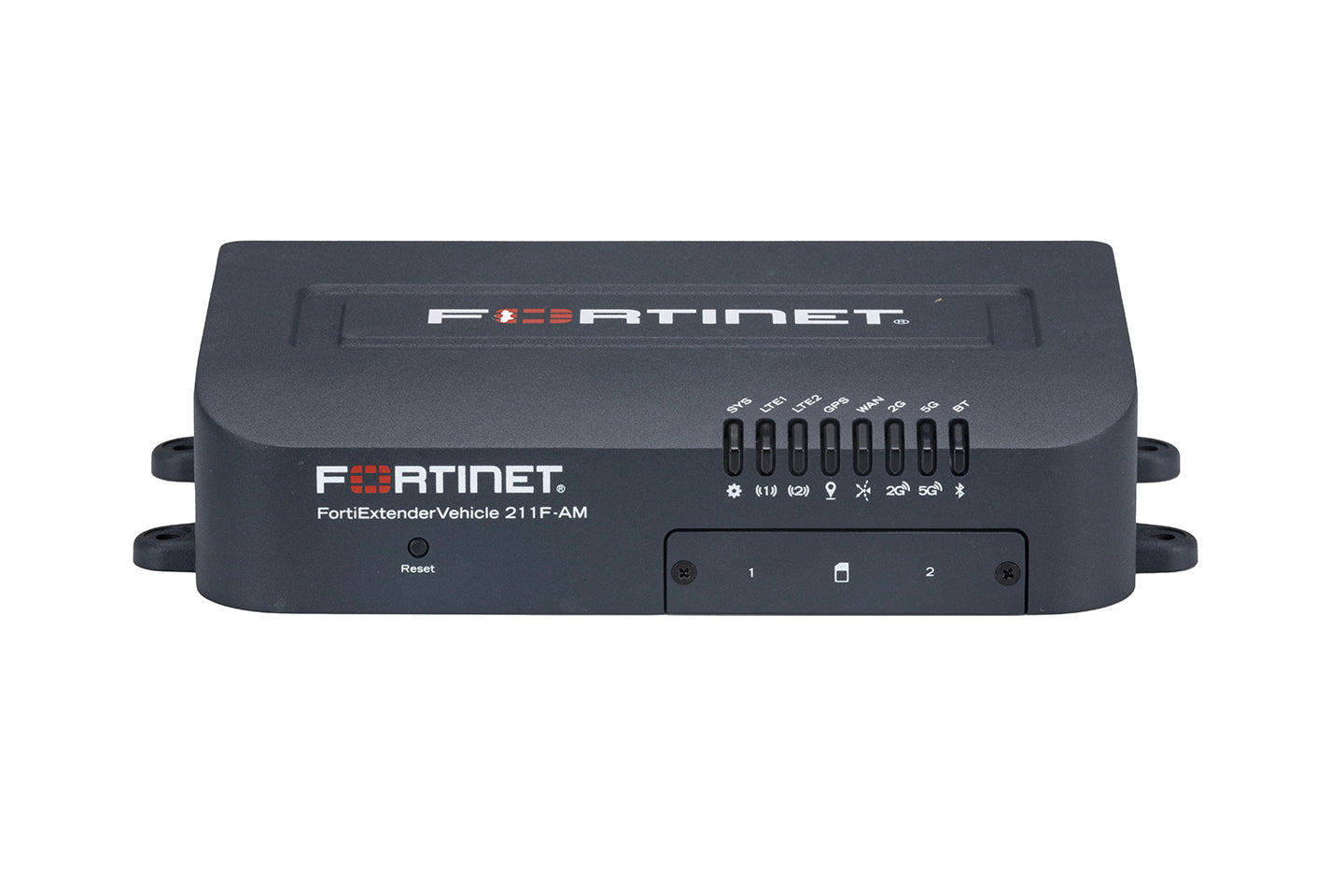

  • Black Fortinet FortiExtenderVehicle 211F-AM LTE router with lights

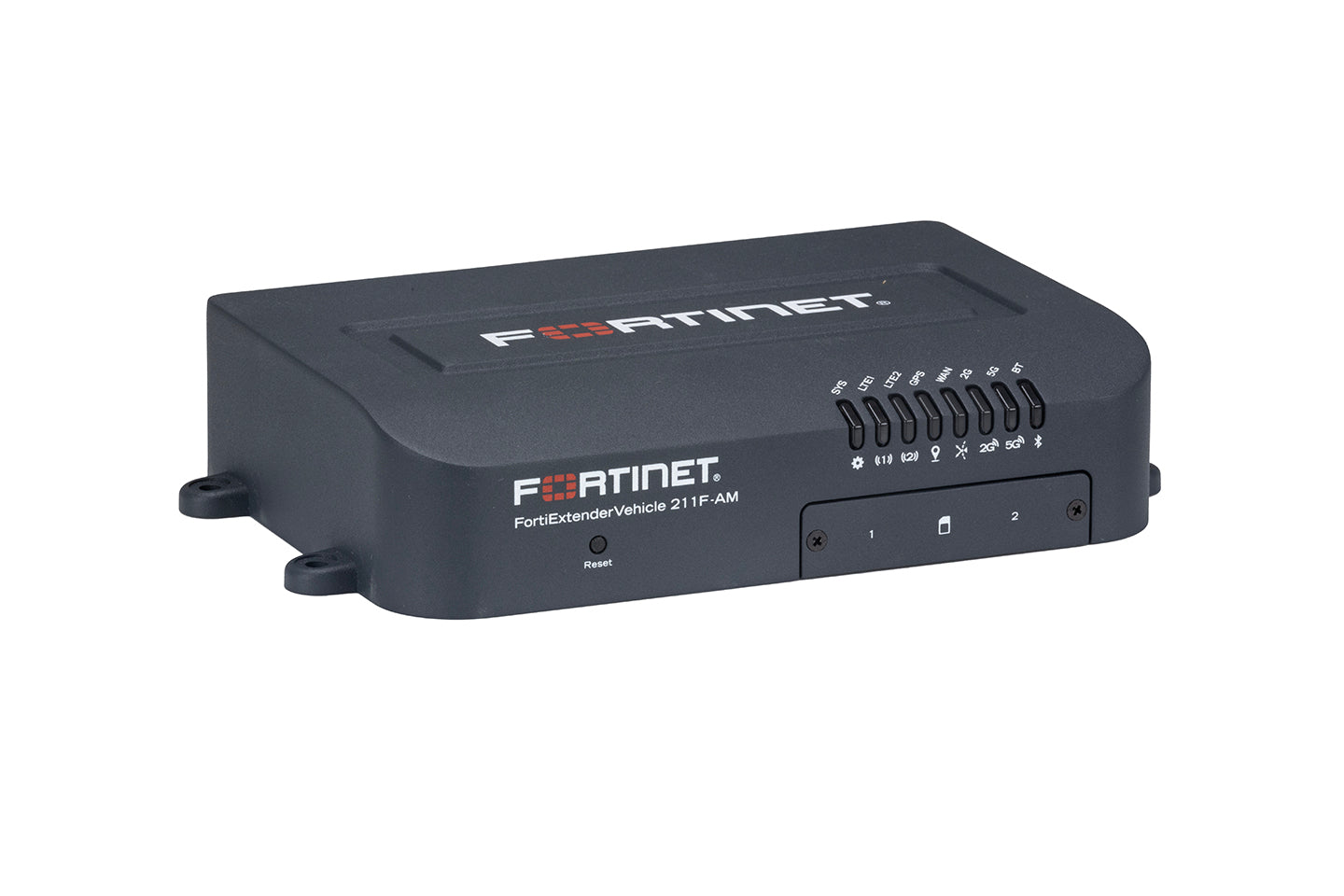

  • Dark gray Fortinet FortiExtenderVehicle 211F-AM LTE router with indicator lights

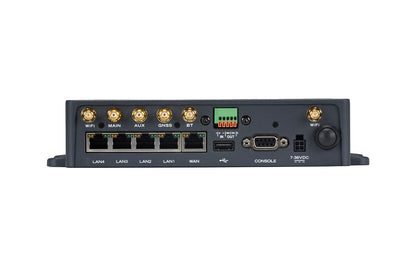

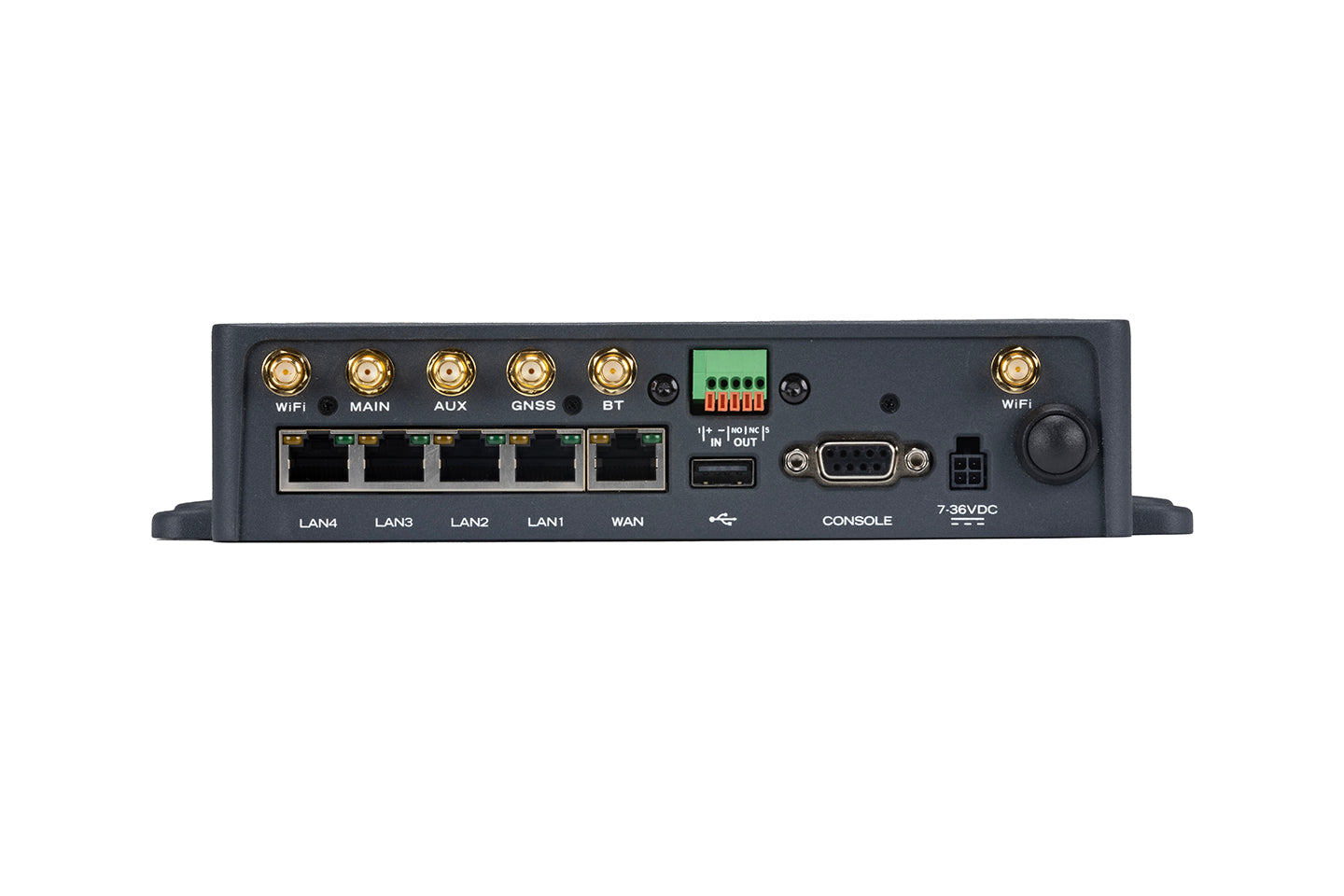

  • Fortinet FEV-211F-N back view with gold connectors, LAN WAN WiFi ports, 7-36VDC input
1 4

Fortinet

Fortinet FEV-211F-N | FortiExtender Vehicle 211F LTE CAT-12 Router, Dual SIM, EU/APAC/LATAM

Fortinet FEV-211F-N | FortiExtender Vehicle 211F LTE CAT-12 Router, Dual SIM, EU/APAC/LATAM

Authorised Fortinet Partner

FEV-211F-N

Stock Status: Enquire

$2,561.30 inc. GST
$2,328.45 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Fortinet FEV-211F-N is a semi-rugged FortiExtender Vehicle 211F LTE CAT-12 wireless WAN router with dual SIM, built for vehicle and OT deployments. This variant uses a Sierra Wireless EM7565 CAT-12 modem with DL/UL speeds of 600/150 Mbps and supports LTE Band 28 for EU, APAC and LATAM carriers. It combines a 1x GE WAN port, 4x GE LAN ports and 2x2 dual-band 802.11ac Wave 2 Wi-Fi in a compact chassis suited to fleets, emergency services and transport.

GPS/GNSS (GPS, BeiDou, Galileo), Bluetooth 5.0 and a digital I/O connector let the unit track location and control external devices. It does not support Band 14 (FirstNet), and an external LTE antenna is required, such as the optional FANT-3IN1-TG-5M-FEV 3-in-1 roof-mount LTE/GNSS antenna. Cloud and on-premises management options simplify rollout across mobile sites.

Features

- Semi-rugged design for vehicle and industrial/OT applications
- Secure network fabrics with VxLAN extension
- Cloud management and on-premises management options
- Digital I/O port for external device control
- Console and USB ports for out-of-band management
- Small form factor for easy deployment and good cellular signal
- Optional FANT-3IN1-TG-5M-FEV 3-in-1 roof-mount LTE/GNSS antenna

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 1x Dual SIM 3G/4G LTE CAT-12 M.2 modem (Sierra Wireless EM7565), DL/UL 600/150 Mbps
- LTE Band 28 support for EU/APAC/LATAM carriers; no Band 14 (FirstNet) support
- 1x GE RJ45 WAN port and 4x GE RJ45 LAN ports
- 2x2 dual-band 2.4/5 GHz 802.11a/b/g/n/ac Wave 2 Wi-Fi, up to 1200 Mbps
- Bluetooth 5.0 (BLE)
- GPS/GNSS support (GPS/BeiDou/Galileo)
- 1x USB 2.0 port
- 1x Console port (DB9)
- 1x digital I/O connector (1x opto input, 1x relay NC/NO output)
- IP64 and MIL-STD-810H rated
- Approx. 970 g; 18.2 x 13 x 4.5 cm
- External LTE antenna required

FAQs

Q: Which carriers and regions is the FEV-211F-N intended for?
A: This variant is intended for EU, APAC and LATAM carriers and supports LTE Band 28. It does not support Band 14 (FirstNet).

Q: Does the FEV-211F-N include an LTE antenna?
A: No. An external LTE antenna is required. The FANT-3IN1-TG-5M-FEV 3-in-1 roof-mount LTE/GNSS antenna is available as an option.

Q: How many Ethernet ports does it have?
A: It has 1x Gigabit Ethernet RJ45 WAN port and 4x Gigabit Ethernet RJ45 LAN ports.

Q: Does it support Wi-Fi and GPS?
A: Yes. It has 2x2 dual-band 2.4/5 GHz 802.11ac Wave 2 Wi-Fi up to 1200 Mbps, plus GPS/GNSS support for GPS, BeiDou and Galileo.

Q: Can it connect to external equipment such as sensors or relays?
A: Yes. The digital I/O connector provides 1x opto input and 1x relay NC/NO output for controlling or monitoring external devices.

Q: How can the FEV-211F-N be managed?
A: It supports both cloud management and on-premises management, with console and USB ports available for out-of-band access.
