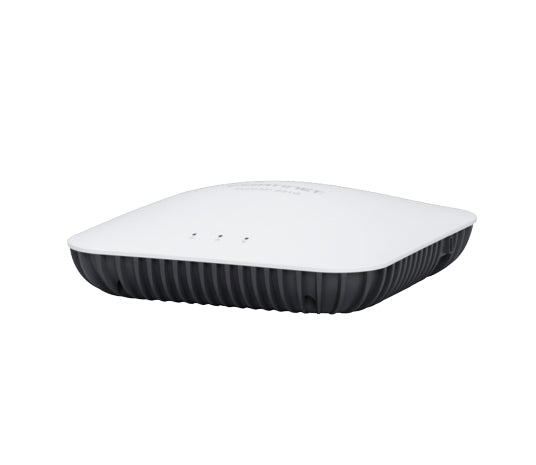

• Fortinet FAP-231G-N tri-band Wi-Fi 6E access point, white and black sleek design
1 1

Fortinet

Fortinet FAP-231G-N | FortiAP 231G Tri-Band Wi-Fi 6E Access Point, 2.5G PoE, -N

Fortinet FAP-231G-N | FortiAP 231G Tri-Band Wi-Fi 6E Access Point, 2.5G PoE, -N

Authorised Fortinet Partner

FAP-231G-N

Stock Status: Enquire

$630.24 inc. GST
$572.95 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.
End of life
This item has been replaced by FAP-231K-N.

Description

The Fortinet FAP-231G-N is an enterprise-class indoor Wi-Fi 6E access point with three radios covering 2.4 GHz, 5 GHz and a flexible 5 GHz/6 GHz/scanning radio, delivering 2x2 MU-MIMO with aggregate radio rates of up to 574 Mbps, 1201 Mbps and 2402 Mbps. The -N regional variant is built for the US/North America regulatory domain and uses four internal antennas for a clean, ceiling or wall-mounted deployment.

A 100/1000/2500 Base-T RJ45 PoE port provides multi-gigabit uplink and power, backed by a second 10/100/1000 RJ45 port for PoE diversity and an RJ45 console port. An integrated BLE radio and a scanning-capable radio support location services and RF security monitoring, and the access point is managed by a FortiGate wireless controller or FortiCloud. Availability of the 6 GHz band depends on the regulatory domain.

Features

- OFDMA support for efficient multi-client airtime use
- Spatial reuse and BSS Coloring to reduce co-channel interference
- Managed by FortiGate (FortiLink/wireless controller) or FortiCloud
- Integrated BLE radio for location and IoT services
- Dedicated scanning-capable radio for security and RF monitoring

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
• Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
• Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
• Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product’s announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Wi-Fi 6E (802.11ax) tri-radio: 2.4 GHz, 5 GHz and 5 GHz/6 GHz/scanning radio
- Integrated BLE radio
- 2x2 MU-MIMO with up to 574 Mbps, 1201 Mbps and 2402 Mbps radio rates
- 4 internal antennas
- 1 x 100/1000/2500 Base-T RJ45 PoE port
- 1 x 10/100/1000 RJ45 port (PoE diversity)
- RJ45 console port
- Regional variant: -N (US/North America regulatory domain)
- 6 GHz band not available in all regulatory domains

FAQs

Q: What does the -N suffix on the FAP-231G-N mean?
A: The -N variant is configured for the US/North America regulatory domain. Regional variants differ in approved channels and power settings, so choose the variant that matches where the access point will be deployed.

Q: How is the FAP-231G-N powered?
A: It is powered over Ethernet through its 100/1000/2500 Base-T RJ45 port. A second 10/100/1000 RJ45 port provides PoE diversity.

Q: Does it support the 6 GHz band?
A: It is a Wi-Fi 6E access point with a flexible 5 GHz/6 GHz/scanning radio. 6 GHz operation is not available in all regulatory domains, so check local rules for your region.

Q: How is the FAP-231G-N managed?
A: It can be managed by a FortiGate acting as the wireless controller over FortiLink, or through FortiCloud.

Q: Does it have internal or external antennas?
A: It uses four internal antennas, so no external antennas are required or supported.

Q: What uplink speed does it support?
A: The primary RJ45 PoE port supports 100/1000/2500 Base-T, allowing a 2.5 Gbps multi-gigabit uplink to suitable switches.
