Fortinet FANT-04BEAX-1313-D-N | FANT-04BEAX Directional Antenna, 13 dBi, 2.4/5/6 GHz, 4 x N, 4x4/2x2, Wi-Fi 6E/7

Fortinet FANT-04BEAX-1313-D-N | FANT-04BEAX Directional Antenna, 13 dBi, 2.4/5/6 GHz, 4 x N, 4x4/2x2, Wi-Fi 6E/7

SKU:FANT-04BEAX-1313-D-N

Stock Status: Enquire

Regular price $4,027.91 AUD
Regular price
$4,027.91 AUD
$4,027.91 AUD
Regular price
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

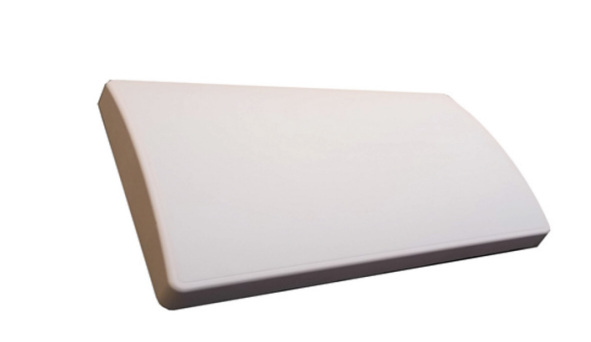

High-gain tri-band directional antenna engineered for Fortinet Wi-Fi 6E/7 access points.. It delivers focused 13 dBi coverage with four N-type connectors, supporting either one 4x4 MIMO radio or two 2x2 MIMO radios for high throughput and reduced interference. Built for demanding enterprise and campus deployments, it integrates cleanly with Fortinet APs and is backed by the manufacturer's hardware warranty.. Buy today from iptrading.com.au fast shipping and expert service across Australia.

Features

- Tri-band coverage for 2.4/5/6 GHz Wi-Fi 6E/7 networks
- Focused 13 dBi directional gain for longer reach and cleaner links
- Flexible MIMO options: 4x4 or dual 2x2 configurations
- 4 x N-type connectors for secure, low-loss RF connections
- Optimised integration with Fortinet enterprise access points

Warranty

Fortinet provides robust warranty coverage for its hardware and software products, with durations and terms based on product category:
Hardware Warranty: All Fortinet hardware products come with a 1-year (365 days) limited warranty from the Warranty Start Date, covering material defects in workmanship when compared to the published Functional Specifications.
Software Warranty: Fortinet software is warranted for 90 days from the Warranty Start Date. An exception is FortiToken, which carries a 1-year warranty.
Limited Lifetime Warranty Products:
Some products are covered by extended terms:
o FortiAP and FortiSwitch (excluding FortiSwitch-5000 series) include a limited lifetime warranty valid for 5 years beyond the product's announced end-of-life date.
o FortiSwitch-5000 series is covered under the standard 1-year hardware warranty.
Extended Warranty Options:
IP Trading offers extended warranty solutions and ongoing FortiCare support services for Fortinet hardware. Contact our team to customise a support package that matches your operational needs.
https://www.fortinet.com/content/dam/fortinet/assets/legal/EULA.pdf

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Is this antenna compatible with Wi-Fi 6E and Wi-Fi 7 access points?
A: Yes. It supports the 2.4, 5, and 6 GHz bands and is designed for Fortinet Wi-Fi 6E/7 APs.

Q: How many radios can I connect to this antenna?
A: You can connect one 4x4 MIMO radio or two separate 2x2 MIMO radios via the four N-type connectors.

Q: What connector type does the antenna use?
A: It has 4 x N-type female (socket) connectors.

Q: Can I use this with non-Fortinet access points?
A: It is designed for Fortinet APs. If a third-party AP uses compatible N-type ports and matching band specifications, it may work, but verify with the AP vendor.

Q: Does the directional design help reduce interference?
A: Yes. Directional gain focuses energy into a narrower beam, improving signal quality and reducing off-axis interference.

Q: How do I purchase this in Australia from IP Trading?
A: Order directly at iptrading.com.au or contact IP Trading for availability and expert advice. Fast shipping is available Australia-wide.

Technical Specifications

- Antenna type: Directional panel
- Frequency bands: 2.4 GHz, 5 GHz, 6 GHz (Wi-Fi 6E/7)
- Gain: 13 dBi nominal
- MIMO support: 1 x 4x4 or 2 x 2x2 radios
- Connectors: 4 x N-type female (socket)
- Intended use: Fortinet Wi-Fi 6E/7 access points (APs)
