Eaton REV42810PB | RE Series 42U Server Rack Enclosure, 800W x 1070D, Black

Name: Eaton REV42810PB | RE Series 42U Server Rack Enclosure, 800W x 1070D, Black
Brand: Eaton
SKU: REV42810PB
Price: 2698.43 AUD
Availability: BackOrder

Authorised Eaton Partner

SKU:REV42810PB

Stock Status: Enquire

$2,698.43 inc. GST

$2,453.12 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

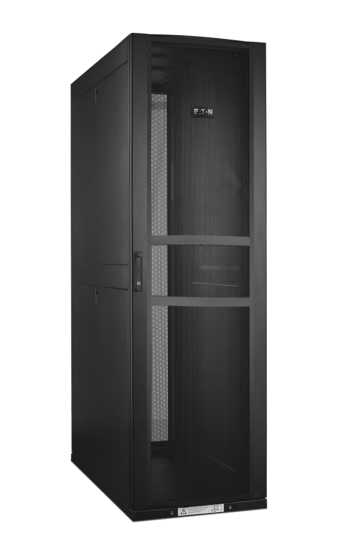

The Eaton RE Series REV42810PB is a freestanding 42U, 19-inch server rack enclosure in the Premier configuration, measuring 800 mm wide and 1070 mm deep. Finished in black (RAL 9005), it supports up to 1500 kg of static load and arrives factory pre-assembled on castors, ready to position in a server room or data centre.

The Premier build includes lockable vented front and rear doors, lockable side panels, adjustable EIA/ECA-310 compliant mounting rails and cable management rails. Castors, levelling feet and anti-tip brackets suit both mobile positioning and a stable final installation, while the layout provides mounting points for PDUs and flexible cable routing.

Features

- Factory pre-assembled for fast deployment
- Tool-less configuration for quick rack setup
- Optimised PDU mounting points
- Flexible cable management
- Perforated steel front and rear doors with swing handles and key lock for high airflow
- Lockable side panels
- Top panel with airflow or cable cover plates
- Castors, levelling feet and anti-tip brackets
- Quick-connect grounding
- Adjustable EIA-310-E compliant mounting rails

Warranty

• Standard UPS (with VRLA batteries): 2–3 year warranty
• Lithium-ion UPS (up to 3kVA): 5-year warranty
Extended Warranty Options:
Extended Eaton UPS warranties are available through IP Trading. Contact us to discuss a plan that suits your power protection needs.
https://www.eaton.com/us/en-us/catalog/services/ups-services/understanding-your-eaton-ups-warranty-.html

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Replacement Battery Finder

Technical Specifications

- 42U (42 RMU) equipment mounting height
- Height 1992 mm x Width 800 mm x Depth 1070 mm
- Static load rating up to 1500 kg
- 19-inch EIA/ECA-310 compliant mounting rails
- Black (RAL 9005) finish
- 4 x 2-inch heavy-duty castors and 4 levelling feet
- Vented front door with lock and 2-piece rear door
- 4 lockable side panels
- 4 vertical rails, 6 horizontal beams and 2 cable management rails
- Factory pre-assembled
- Premier configuration

FAQs

Q: What size is the Eaton REV42810PB rack?
A: It is a 42U enclosure measuring 1992 mm high, 800 mm wide and 1070 mm deep.

Q: What is the maximum load rating?
A: The enclosure has a static load rating of up to 1500 kg.

Q: Does it arrive assembled?
A: Yes. The REV42810PB is factory pre-assembled and fitted with castors.

Q: Is it compatible with standard 19-inch equipment?
A: Yes. The adjustable mounting rails are 19-inch EIA/ECA-310 compliant, so standard rack-mount servers, switches and storage will fit.

Q: Can the rack be locked?
A: Yes. The front door, rear door and side panels are all lockable.

Q: Does it include castors and levelling feet?
A: Yes. It includes four heavy-duty castors for moving the rack and four levelling feet for a stable final position.
