Eaton MBP6KIG2 | HotSwap MBP Gen2 6000i Maintenance Bypass Panel, 6000VA, Hardwired

Eaton MBP6KIG2 | HotSwap MBP Gen2 6000i Maintenance Bypass Panel, 6000VA, Hardwired

Authorised Eaton Partner

MBP6KIG2

In stock:4

$899.19 inc. GST
$817.45 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Eaton MBP6KIG2 HotSwap MBP Gen2 6000i is a 6000VA maintenance bypass panel for Eaton 5 to 6 kVA 9PX Gen2 and 9SX rackmount UPS systems. Its make-before-break rotary switch lets you service or swap the UPS without interrupting power to connected loads. It uses a hardwired input and provides hardwired plus 2 x C13 and 3 x C39 outputs, and the rack-mount kit is included for 19-inch rack installation.

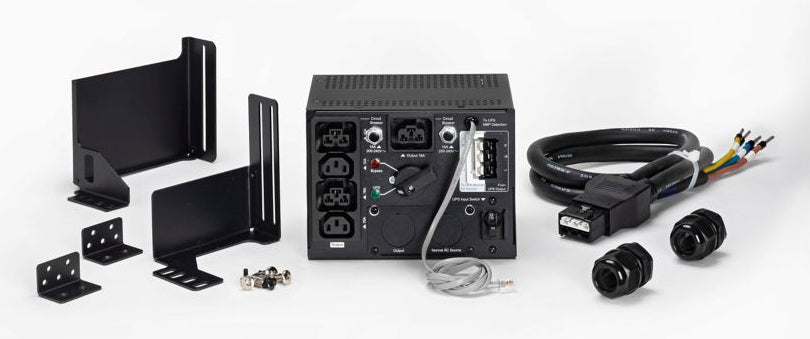

A single patented connector carries input, output and signal to the UPS, and an RJ11 signal cable reports the MBP connection and bypass switch position on the UPS display. Green and red indicator lights show whether the load is on UPS supply or in bypass mode. The package includes the MBP, quick start guide, cord set, cable glands, rack-mount ears, fixation ears and screws.

Features

- Make-before-break switching keeps power continuous when moving between UPS and Bypass
- Single all-in-one patented connector for input, output and signal to the UPS
- MBP status detection via RJ11 signal cable shown on the UPS display
- Green UPS supply light and red Bypass mode light show power status
- Compatible with Eaton 9PX Gen2 and 9SX 5-6 kVA rackmount UPS
- Includes quick start guide, MBP cord set, cable glands, rack-mount ears, fixation ears and screws

Warranty

• Standard UPS (with VRLA batteries): 2–3 year warranty
• Lithium-ion UPS (up to 3kVA): 5-year warranty
Extended Warranty Options:
Extended Eaton UPS warranties are available through IP Trading. Contact us to discuss a plan that suits your power protection needs.
https://www.eaton.com/us/en-us/catalog/services/ups-services/understanding-your-eaton-ups-warranty-.html

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Replacement Battery Finder

Technical Specifications

- Rated for 6000 VA (5-6 kVA UPS)
- Input: Hardwired (terminal blocks)
- Outputs: 2 x C13, 3 x C39, Hardwired
- Dimensions (D x W x H): 125 x 177 x 130 mm
- Weight: 2 kg
- Rack size: 3U, 19-inch rack-mountable, rack kit included
- Manual bypass rotary switch with UPS and Bypass positions

FAQs

Q: Which UPS models is the MBP6KIG2 compatible with?
A: It is designed for Eaton 9PX Gen2 and 9SX rackmount UPS in the 5 to 6 kVA range.

Q: Can I service the UPS without cutting power to my equipment?
A: Yes. The make-before-break rotary switch transfers the load between UPS and Bypass without interrupting power, so the UPS can be serviced or replaced.

Q: What input and output connections does it have?
A: It has a hardwired input, with outputs of 2 x C13, 3 x C39 and a hardwired output.

Q: Is the rack-mount kit included?
A: Yes. The package includes rack-mount ears, fixation ears and screws for 19-inch rack installation. The unit is 3U in size.

Q: How do I know whether the load is on UPS or bypass?
A: A green light indicates UPS supply and a red light indicates Bypass mode. The RJ11 signal cable also shows the MBP connection and switch position on the UPS display.

Q: How does the 6000i G2 differ from the 11000i G2 maintenance bypass panel?
A: The MBP6KIG2 is rated for 5 to 6 kVA UPS units. The MBP11KIG2 is a separate model intended for 8 to 11 kVA UPS units.
