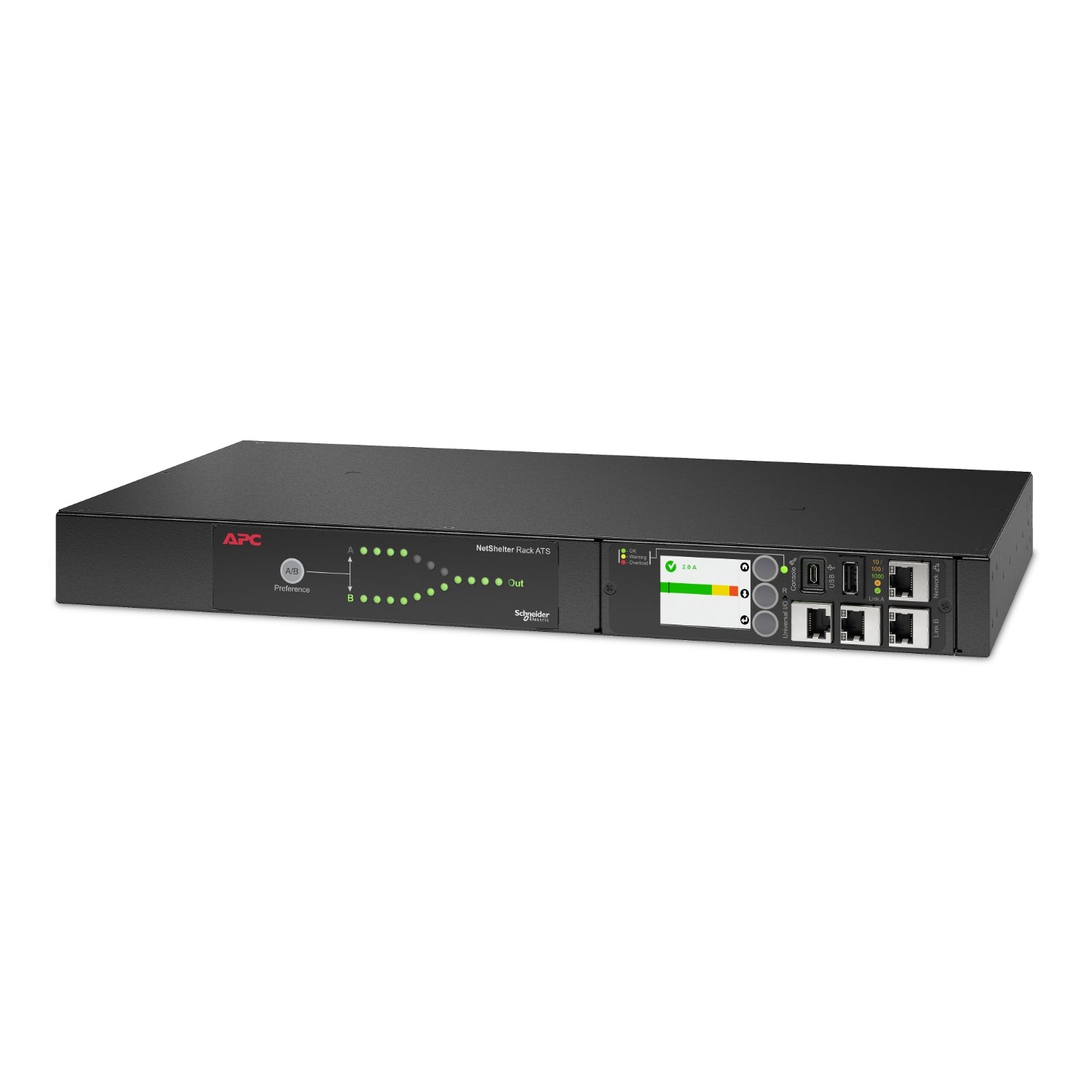

APC AP4423A | NetShelter Rack ATS 1U, 230V, 16A, 2x C20 In, 8x C13 + 1x C19 Out

APC AP4423A | NetShelter Rack ATS 1U, 230V, 16A, 2x C20 In, 8x C13 + 1x C19 Out

Authorised APC Partner

SKU:AP4423A

$1,859.55 inc. GST
$1,690.50 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

In stock: 119

Description

The APC AP4423A NetShelter 1U rack automatic transfer switch gives single-corded IT equipment redundant power from two independent AC sources. Rated at 230V, 16A and 3700VA, it has two C20 inlets and eight C13 plus one C19 outlets, making it suited to server, storage and network racks where a single power feed is a risk.

A field-replaceable NMC3 network management card provides remote management through a secure web interface, SNMP, CLI and EcoStruxure IT, with temperature and humidity monitoring. Up to 32 Rack ATS units can be managed from a single IP address, and the 10ms transfer time keeps connected loads running through a source failure.

Features

- Dual input power cords to enhance uptime for critical loads
- Seamless switching between two AC sources
- Field-replaceable NMC to minimise downtime
- Temperature and humidity monitoring
- Connect and manage up to 32 Rack ATSs from one IP address
- Gigabit Ethernet support
- Remote management via secure Web UI, SNMP, CLI and EcoStruxure IT
- Supports APC Wi-Fi USB device for cableless installation and setup

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- 1U rack-mount form factor
- Single phase, 230V rated voltage, 16A rated current
- 3700VA load capacity
- 2 x IEC 60320 C20 inlets (dual input power cords)
- 8 x IEC 60320 C13 and 1 x IEC 60320 C19 outlets
- 50/60Hz input frequency
- Input voltage range 207-253V
- Transfer time 10ms
- Circuit breaker protection
- Field-replaceable APC NMC3 network management card
- Dimensions approx. 4.4 cm H x 43.2 cm W x 23.6 cm D
- Net weight approx. 3.74 kg
- Cord length 2.44 m

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What does the APC AP4423A do?
A: It is a 1U rack automatic transfer switch that connects single-corded equipment to two AC power sources and switches between them if the primary source fails, with a 10ms transfer time.

Q: What outlets and inlets does it have?
A: It has two IEC 60320 C20 inlets for the dual input power cords, and eight IEC 60320 C13 outlets plus one IEC 60320 C19 outlet for connected equipment.

Q: What is the load capacity?
A: The unit is rated at 230V, 16A single phase, with a 3700VA load capacity.

Q: Can I manage it remotely?
A: Yes. The field-replaceable NMC3 card supports a secure web interface, SNMP, CLI and EcoStruxure IT, and up to 32 Rack ATS units can be managed from one IP address.

Q: Does it monitor environmental conditions?
A: Yes. It supports temperature and humidity monitoring through the network management card.

Q: Why use an ATS instead of a standard PDU?
A: A standard PDU has one power feed. An ATS accepts two feeds and switches between them, giving single-corded servers and network gear power redundancy.
