APC

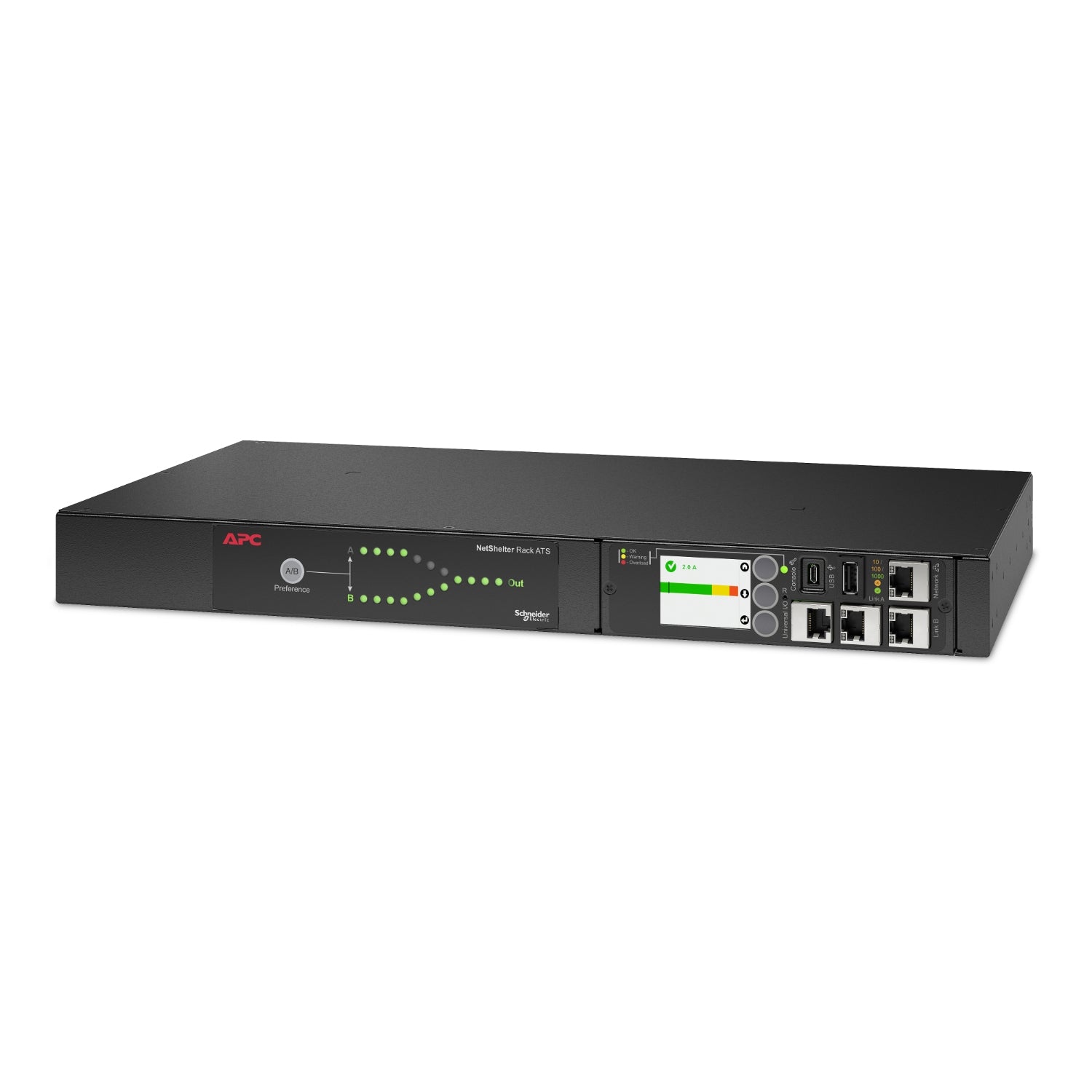

APC AP4421A | NetShelter 1U Rack Automatic Transfer Switch, 10A, 230V, C14, 12x C13

APC AP4421A | NetShelter 1U Rack Automatic Transfer Switch, 10A, 230V, C14, 12x C13

Authorised APC Partner

AP4421A

In stock:156

$1,707.75 inc. GST
$1,552.50 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The APC AP4421A is a 1U single-phase rack automatic transfer switch rated 10A at 230V, giving single-corded IT equipment redundant power from two independent sources. It provides two C14 inlets and twelve C13 outlets, with seamless 10ms transfer between feeds, so servers, switches and storage keep running if one supply fails.

This fifth-generation NetShelter Rack ATS uses an APC NMC3 network management card for remote monitoring and control over Web UI, SNMP and CLI. Up to 32 Rack ATS units can be managed from a single IP address, with network port sharing, environmental monitoring and enhanced security, and it is fully compatible with EcoStruxure IT. It replaces the discontinued AP4421 Gen 3 Rack ATS.

Features

- Redundant power for single-corded equipment loads in the IT rack
- Connect and manage up to 32 Rack ATSs from one IP address
- Network port sharing, environmental monitoring and enhanced security
- Secure remote access via Web UI, SNMP and CLI
- Fully compatible with EcoStruxure IT
- Replaces the discontinued AP4421 Gen 3 Rack ATS

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Datasheet

Manual

FAQs

APC Replacement Battery Finder

Technical Specifications

- Form factor: 1U rack mount, single phase
- Rated current: 10A
- Rated voltage: 230V, 50/60Hz
- Load capacity: 2000VA
- Inlets: 2 x IEC C14
- Outlets: 12 x IEC C13
- Transfer time: 10ms (seamless switching)
- Management: APC NMC3 network management card
- Access: Web UI, SNMP, CLI

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What does the AP4421A Rack ATS do?
A: It connects to two independent power sources and automatically switches the load to the alternate feed if the primary fails, giving single-corded IT equipment redundant power.

Q: How fast is the transfer between power sources?
A: The transfer time is 10ms, providing seamless switching that single-corded equipment can ride through.

Q: What inlets and outlets does it have?
A: It has two IEC C14 inlets and twelve IEC C13 outlets, rated 10A at 230V, 50/60Hz, with a 2000VA load capacity.

Q: How is the AP4421A managed remotely?
A: It includes an APC NMC3 network management card, giving access via Web UI, SNMP and CLI, and it is compatible with EcoStruxure IT.

Q: Can multiple Rack ATS units be managed together?
A: Yes, up to 32 Rack ATS units can be connected and managed from a single IP address.

Q: Does the AP4421A replace an earlier model?
A: Yes, it is the fifth-generation replacement for the discontinued AP4421 Gen 3 Rack ATS.
