Eaton

Eaton FLXTMI132C2 | FlexPDU G2 Metered Input 0U PDU, 32A IEC 309, 20xC13 4xC19

Eaton FLXTMI132C2 | FlexPDU G2 Metered Input 0U PDU, 32A IEC 309, 20xC13 4xC19

Authorised Eaton Partner

FLXTMI132C2

In stock:6

$673.08 inc. GST
$611.89 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

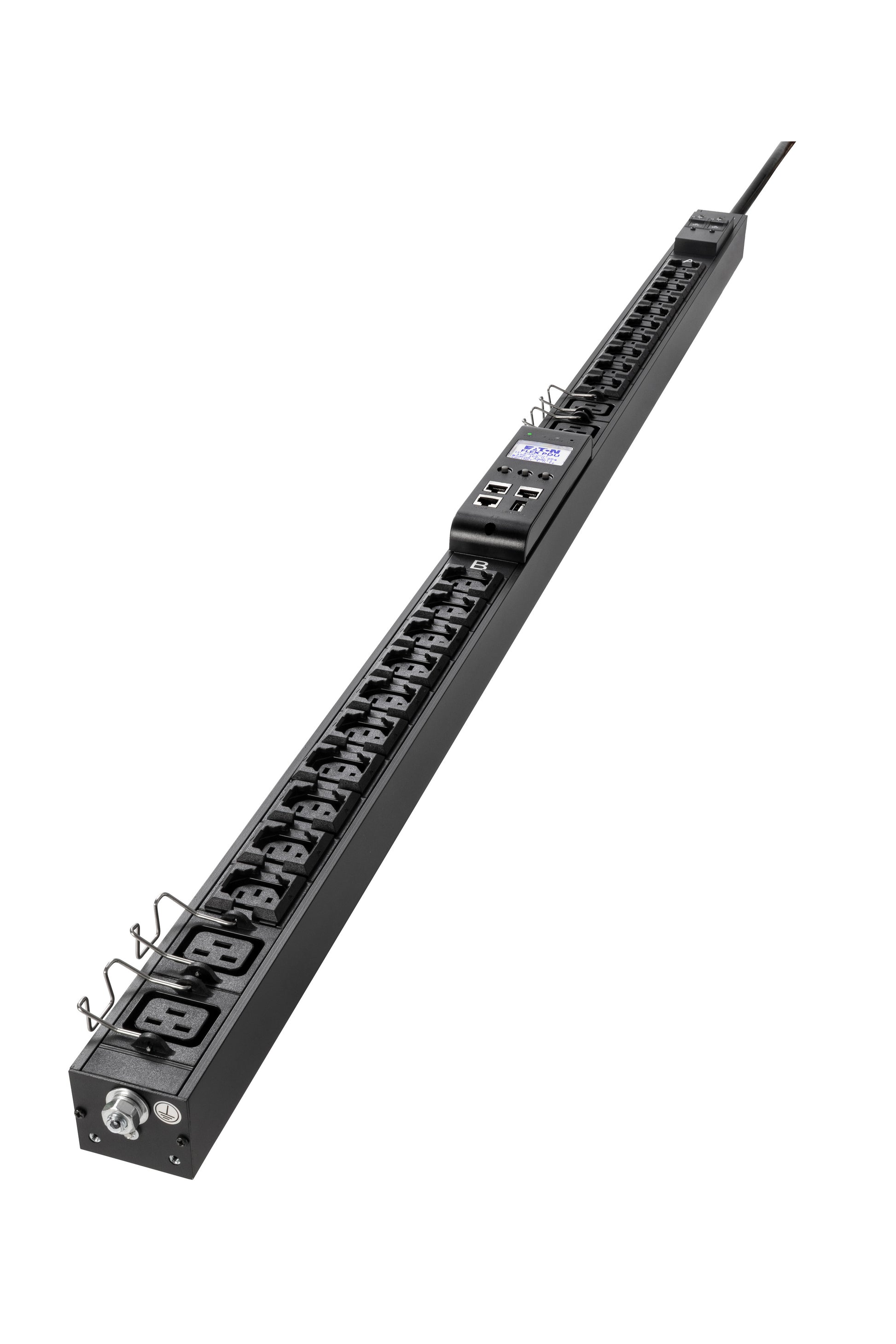

The Eaton FlexPDU G2 FLXTMI132C2 is a 0U vertical metered-input rack PDU for single-phase 32A power. It connects through an IEC 60309 32A (2P+E) inlet with a 3 m cord and delivers up to 7.4 kW at 200-240V across 24 outlets, made up of 20 x C13 and 4 x C19. This makes it well suited to dense server and network racks that need high outlet counts with visibility of input power.

An on-board 10/100 Mbps Ethernet interface supports SNMP, HTTPS and SSH v2 for remote monitoring of input power, with metering accuracy of +/-1%. Lockable outlets help keep equipment connected, and the vertical 0U form factor mounts without consuming rack space.

Features

- Metered input for monitoring of input power
- Lockable outlets help prevent accidental disconnection
- Pure copper main current conductors
- Hydraulic-magnetic circuit breakers for 32A models
- Heat resistance up to 50 C
- Network connectivity for remote monitoring via Ethernet, SNMP, HTTPS and SSH v2
- 0U vertical mounting saves rack space

Warranty

• Standard UPS (with VRLA batteries): 2–3 year warranty
• Lithium-ion UPS (up to 3kVA): 5-year warranty
Extended Warranty Options:
Extended Eaton UPS warranties are available through IP Trading. Contact us to discuss a plan that suits your power protection needs.
https://www.eaton.com/us/en-us/catalog/services/ups-services/understanding-your-eaton-ups-warranty-.html

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 0U vertical rack PDU, metered input
- Single-phase, 32A, 200-240V, 7.4 kW max
- Input: IEC 60309 32A blue (2P+E), 3 m cord
- Outlets: 24 total (20 x C13, 4 x C19)
- Frequency: 50/60 Hz
- Circuit breakers: (2) 1-pole
- Metering accuracy: +/-1%
- Ethernet 10/100 Mbps with SNMP, HTTPS, SSH v2, SMTP, DHCP, RADIUS, NTP, TELNET
- Operating temperature: 0 to 50 C
- Dimensions: 52 mm wide x 44.4 mm deep x 1337 mm high
- Weight: 3.6 kg
- Colour: Black

FAQs

Q: What power input does the FLXTMI132C2 require?
A: It requires single-phase 200-240V power through an IEC 60309 32A blue (2P+E) connection, with a 3 m input cord attached.

Q: How many outlets does it provide and of what type?
A: It provides 24 outlets in total: 20 x C13 and 4 x C19, all with a grounding pin.

Q: Can I switch individual outlets on and off remotely?
A: No. This is a metered-input model with non-switchable outlets. It monitors input power over the network but does not offer per-outlet switching.

Q: How is the PDU monitored remotely?
A: It has a 10/100 Mbps Ethernet interface supporting SNMP, HTTPS and SSH v2, among other protocols, allowing input power metering from your management platform.

Q: What is the maximum load this PDU can supply?
A: It is rated for 32A at 200-240V, up to 7.4 kW maximum.

Q: How does it mount in a rack?
A: It is a 0U vertical PDU, so it mounts alongside the equipment in the rack without using any rack unit space.
