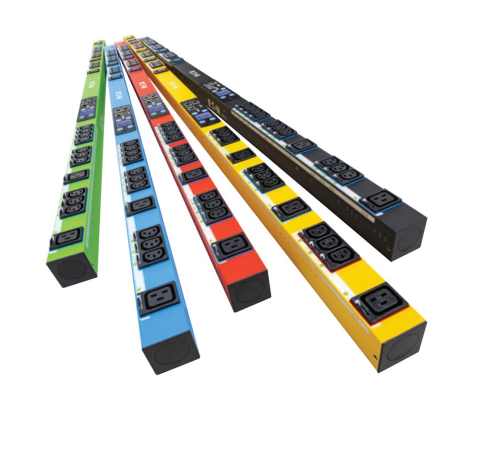

Eaton FLXTMA332C5 | FlexPDU G2 Managed 0U 3-Phase PDU, 32A, 36x C13, 6x C19

Name: Eaton FLXTMA332C5 | FlexPDU G2 Managed 0U 3-Phase PDU, 32A, 36x C13, 6x C19
Brand: Eaton
SKU: FLXTMA332C5
Price: 2526.05 AUD
Availability: BackOrder

Authorised Eaton Partner

SKU:FLXTMA332C5

Stock Status: Enquire

$2,526.05 inc. GST

$2,296.41 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The Eaton FLXTMA332C5 is a managed 0U vertical 3-phase rack PDU from the FlexPDU G2 range, built around a 3-phase IEC 60309 32A input rated at 22.0 kW. It provides 42 outlets (36x C13 and 6x C19) and a 3.0 m input cord, making it well suited to high-density server and network racks that need remote monitoring and outlet-level control.

A hot-swappable network management module delivers SNMP v1/v2c/v3 and web-based management, billing-grade load monitoring with ±1% accuracy, and support for the FLXTTH temperature and humidity sensor. Six 16A single-pole circuit breakers protect the outlet groups, and the PDU is rated for stable operation in ambient temperatures up to 50 C.

Features

- Remote outlet switching and load balancing control
- Real-time tracking of PDU power and environmental data
- Billing-grade PDU load monitoring (±1%)
- Hot-swappable network management module
- Compatible with third-party monitoring platforms and Eaton monitoring software via SNMP
- Stable operation in ambient temperatures up to 50 C
- Anti-ejection outlets and a compact form factor
- Hydraulic-magnetic circuit breakers on models of 32A and above
- Pure copper main circuit conductors
- User-defined alarms and password protection
- Support for environmental sensors (temperature and humidity sensor FLXTTH)

Warranty

• Standard UPS (with VRLA batteries): 2–3 year warranty
• Lithium-ion UPS (up to 3kVA): 5-year warranty
Extended Warranty Options:
Extended Eaton UPS warranties are available through IP Trading. Contact us to discuss a plan that suits your power protection needs.
https://www.eaton.com/us/en-us/catalog/services/ups-services/understanding-your-eaton-ups-warranty-.html

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: FLXTMA332C5
- Mounting: 0U vertical
- Phase: 3-phase
- Input: IEC 60309 32A
- Rated power: 22.0 kW
- Outlets: 36x C13 and 6x C19
- Circuit breakers: 6x 16A single-pole
- Input cord length: 3.0 m
- Network management module: hot-swappable
- Supported protocols: SNMP v1/v2c/v3
- Metering accuracy: ±1%
- Maximum operating temperature: 50 C
- Operating altitude: 0-3000 m

FAQs

Q: What input does the Eaton FLXTMA332C5 require?
A: It has a 3-phase IEC 60309 32A input and is rated at 22.0 kW, supplied with a 3.0 m input cord.

Q: How many outlets does it provide and what types?
A: It provides 42 outlets in total, made up of 36x C13 and 6x C19, protected by six 16A single-pole circuit breakers.

Q: Can I monitor and control this PDU remotely?
A: Yes. The hot-swappable network management module supports SNMP v1/v2c/v3 and a web interface for remote monitoring and outlet switching.

Q: Does it support environmental sensors?
A: Yes. It supports the FLXTTH temperature and humidity sensor for environmental monitoring alongside power data.

Q: How is this PDU mounted in the rack?
A: It is a 0U vertical PDU, so it mounts alongside the rack frame without consuming any rack unit space.

Q: How accurate is the power metering?
A: The PDU provides billing-grade load monitoring with ±1% measurement accuracy.
