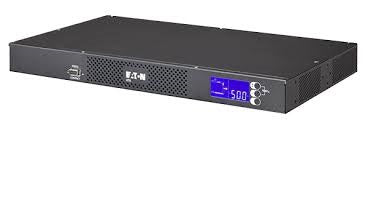

• Eaton EATS16 PDU server rack displaying 500 on blue screen
1 1

Eaton

Eaton EATS16 | ATS 1U Automatic Transfer Switch, 16A, 2x C20, 8x C13, 1x C19

Eaton EATS16 | ATS 1U Automatic Transfer Switch, 16A, 2x C20, 8x C13, 1x C19

Authorised Eaton Partner

EATS16

Stock Status: Enquire

$1,405.16 inc. GST
$1,277.42 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Eaton EATS16 is a 1U rack-mount automatic transfer switch rated 16A at 200-240V, built to give single-feed IT equipment power redundancy. It accepts two independent power sources through 2x C20 inputs and delivers output through 8x C13 and 1x C19 outlets, with a serial port for management. This variant suits server racks and network cabinets where equipment has only one power cord.

The ATS switches seamlessly between the two sources, offering a practical alternative to costly redundant power supplies from networking equipment vendors. An LCD provides metering and basic configuration, and the included RS-232 serial cable, 1.8 m C19-C20 input cables, cable lockers and rack installation accessories make deployment straightforward.

Features

- Provides power redundancy to single-feed IT equipment
- Alternative to expensive redundant power supplies from networking equipment vendors
- Switches seamlessly from one power source to the other
- Compact 1U rack form factor
- LCD with metering and basic configuration capabilities
- Serial port for management

Warranty

• Standard UPS (with VRLA batteries): 2–3 year warranty
• Lithium-ion UPS (up to 3kVA): 5-year warranty
Extended Warranty Options:
Extended Eaton UPS warranties are available through IP Trading. Contact us to discuss a plan that suits your power protection needs.
https://www.eaton.com/us/en-us/catalog/services/ups-services/understanding-your-eaton-ups-warranty-.html

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Replacement Battery Finder

Technical Specifications

- Type: Automatic Transfer Switch (ATS) rack PDU
- Form factor: 1U, horizontal rack mount
- Input connection: 2x C20 with 2 m cords
- Outlets: 8x C13 and 1x C19
- Rating: 16A, 200-240V, single-phase, 50/60 Hz
- Maximum power: 3.84 kW
- Outlet control: No
- Management: RS-232 serial port, serial cable included
- Display: LCD with metering and basic configuration
- Operating temperature: 0 to 40 C
- Dimensions: 430 mm depth x 250 mm width x 43 mm height
- Weight: 3.32 kg
- Colour: Black
- Certification: CE
- Package contents: ATS, quickstart guide, safety instructions, 2x C19-C20 1.8 m input cables, 2x input cable lockers, plastic strips for output locking, RS-232 serial cable, rack installation accessories

FAQs

Q: What does an automatic transfer switch do?
A: It connects to two independent 200-240V power sources and automatically switches the load between them, so equipment with a single power cord keeps running if one source fails.

Q: What connectors does the EATS16 use?
A: It has 2x C20 inputs and delivers output through 8x C13 and 1x C19 outlets.

Q: What is the maximum load?
A: It is rated 16A at 200-240V single-phase, with a maximum of 3.84 kW.

Q: Does it include a serial port and cable?
A: Yes. This variant has a serial port for management and ships with an RS-232 serial cable.

Q: Are input cables included?
A: Yes. Two 1.8 m C19-C20 input cables are supplied, along with input cable lockers and plastic strips for locking the outputs.

Q: Does it support individual outlet control?
A: No. The EATS16 does not offer outlet control. It provides metering and basic configuration through its LCD.
