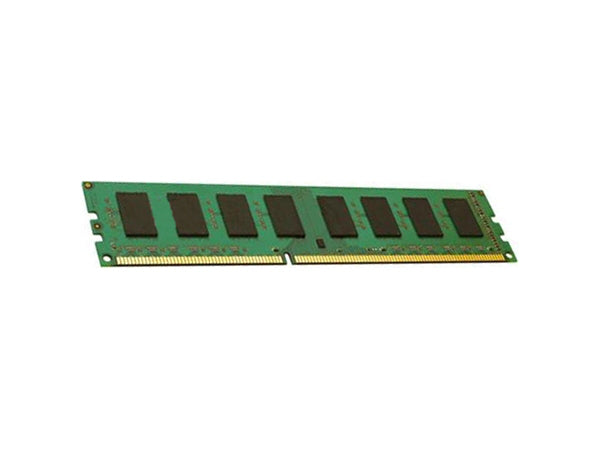

• Check Point CPAC-RAM96GB-9700/9800 96GB green circuit board memory stick
1 1

Check Point

Check Point CPAC-RAM96GB-9700/9800 | Quantum Force 9700/9800 96GB Memory Upgrade Kit, 32GB to 128GB

Check Point CPAC-RAM96GB-9700/9800 | Quantum Force 9700/9800 96GB Memory Upgrade Kit, 32GB to 128GB

Authorised Check Point Partner

CPAC-RAM96GB-9700/9800

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The Check Point CPAC-RAM96GB-9700/9800 is a 96GB memory upgrade kit for Check Point Quantum Force 9700 and 9800 security appliances. It lifts a Base appliance from the default 32GB to the 128GB maximum, giving the gateway more headroom for connection tables, threat prevention inspection and larger security policies.

The kit is supplied as a field-replaceable DIMM (FRU) set and is installed by replacing the memory modules in the appliance, following the Check Point FRU memory procedure. It is listed among the hardware expansion options for the Quantum Force 9700 and in the Check Point Security Appliance Accessories Guide, so it suits organisations that want to scale an existing 9700 or 9800 deployment without replacing the gateway.

Features

- Expands memory on 9700 and 9800 appliances to the 128GB maximum
- Installed by replacing DIMMs, following the Check Point FRU memory procedure
- Extends the life of an existing Quantum Force 9700 or 9800 deployment without a gateway replacement
- Listed in the Quantum Force 9700 datasheet hardware expansion options and the Check Point Security Appliance Accessories Guide

Warranty

Check Point hardware appliances come with a 1-year limited hardware warranty.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Check Point products, ensuring your security infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.
https://www.checkpoint.com/support-services/software-license-agreement-limited-hardware-warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: CPAC-RAM96GB-9700/9800
- Kit capacity: 96GB
- Compatible appliances: Quantum Force 9700 and Quantum Force 9800
- Upgrade path: 32GB (Base default) to 128GB (maximum)
- 9700/9800 Base default memory: 32GB (4 x 8GB)
- 9700/9800 Plus default memory: 64GB
- 9700/9800 maximum memory: 128GB
- Base to 64GB: 8 x 8GB DIMMs in all sockets
- Base to 128GB: 8 x 16GB DIMMs in all sockets
- Field-replaceable DIMM (FRU) kit

FAQs

Q: Which appliances is the CPAC-RAM96GB-9700/9800 compatible with?
A: It is designed for Check Point Quantum Force 9700 and 9800 security appliances.

Q: How much memory will my appliance have after installing this kit?
A: The kit takes a Base appliance from the default 32GB to the 128GB maximum.

Q: What is the default memory on the 9700 and 9800?
A: The Base models ship with 32GB (4 x 8GB) and the Plus models ship with 64GB. The maximum supported memory is 128GB.

Q: How is the memory kit installed?
A: It is a field-replaceable DIMM (FRU) kit. The memory is installed by replacing the DIMMs, following the Check Point FRU memory procedure.

Q: What DIMM configuration is used to reach 128GB?
A: Reaching 128GB from the Base configuration uses 8 x 16GB DIMMs populating all sockets.

Q: Do I need this kit if I already have a 9700 or 9800 Plus model?
A: Plus models already ship with 64GB. This kit is specified as the upgrade path from the Base 32GB default to the 128GB maximum.
