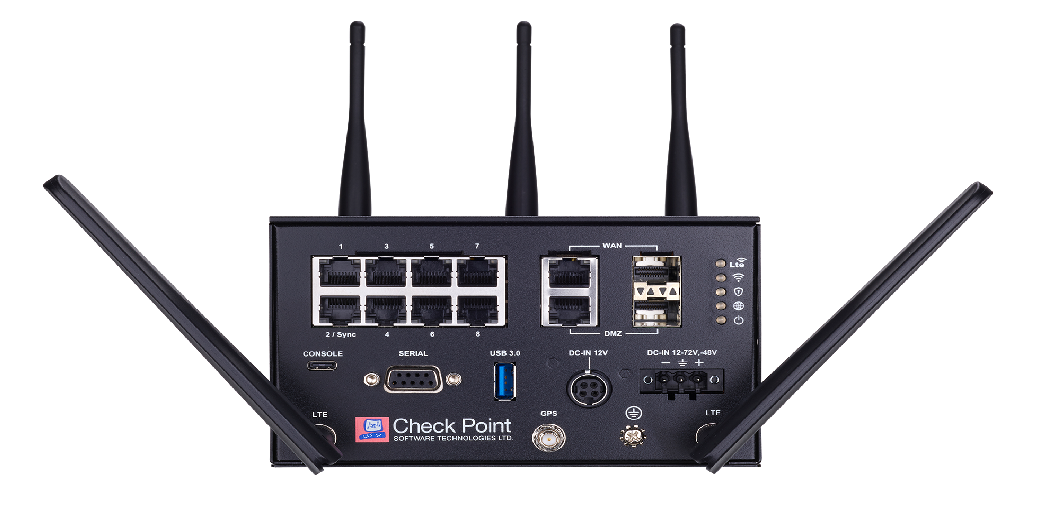

• Check Point CPAC-1570R-RM-DUAL black appliance with 4 antennas and ports
1 1

Check Point

Check Point CPAC-1570R-RM-DUAL | Quantum Rugged 1570R Rack Mount Shelf, Single/Dual, 19in

Check Point CPAC-1570R-RM-DUAL | Quantum Rugged 1570R Rack Mount Shelf, Single/Dual, 19in

Authorised Check Point Partner

CPAC-1570R-RM-DUAL

$437.15 inc. GST
$397.41 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

This 19-inch rack mount shelf is designed for Check Point Quantum Rugged 1570R security gateways, holding either a single appliance or two units side by side on one shelf. It suits industrial and edge deployments where 1570R gateways need to be installed in a standard 19-inch rack, with an ambient operating range of -40 to 70 C for all installation setups.

The shelf supports the 120W industrial AC-DC adapter and a customer-supplied 3-pin terminal block (12V-60VDC), and power redundancy is available when the adapter and DC terminal block are combined. The 12VDC 40W commercial-grade adapter is not supported. Keep the 1570R side vents unblocked and maintain a standard 3U gap for ventilation.

Features

- Single or dual (side by side) 1570R appliance installation on one shelf
- Mounts in a standard 19-inch rack
- Works with the 120W industrial power adapter that ships with the appliance
- Supports power redundancy by combining the AC-DC adapter and a DC terminal block
- Suitable for the full -40 to 70 C ambient range in all installation setups

Warranty

Check Point hardware appliances come with a 1-year limited hardware warranty.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Check Point products, ensuring your security infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.
https://www.checkpoint.com/support-services/software-license-agreement-limited-hardware-warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Compatible appliance: Check Point 1570R security gateway
- Capacity: one appliance, or two appliances side by side
- Rack standard: 19 in
- Dimensions (W x D x H): 482 x 340 x 44.4 mm
- Weight: 1.73 kg
- Ambient temperature range: -40 to 70 C (all installation setups)
- Supports the 120W industrial AC-DC adapter (-40 to 70 C), one adapter per appliance
- Supports 3-pin terminal block, 12V-60VDC, supplied by the customer
- Power redundancy available when the adapter and DC terminal block are combined
- Not supported: 12VDC 40W commercial-grade adapter (CPAC-1570R-PSU-STD)
- Ventilation: 1570R side vents must not be blocked; maintain a standard 3U gap

FAQs

Q: How many 1570R appliances fit on this shelf?
A: The shelf holds one Check Point 1570R appliance, or two side by side in a double installation.

Q: Which appliances is this shelf compatible with?
A: It is an accessory for the Check Point Quantum Rugged 1570R security gateway.

Q: What rack size does it fit?
A: It mounts in a standard 19-inch rack. The shelf measures 482 x 340 x 44.4 mm and weighs 1.73 kg.

Q: Which power options does the shelf support?
A: It supports the 120W industrial AC-DC adapter, one adapter per appliance, and a customer-supplied 3-pin terminal block rated 12V-60VDC. The 12VDC 40W commercial-grade adapter (CPAC-1570R-PSU-STD) is not supported.

Q: Can I run redundant power with this shelf?
A: Yes. Power redundancy is available when the AC-DC adapter and the DC terminal block are combined.

Q: Are there ventilation requirements when rack mounting?
A: Yes. The 1570R side vents must not be blocked, and a standard 3U gap should be maintained.
