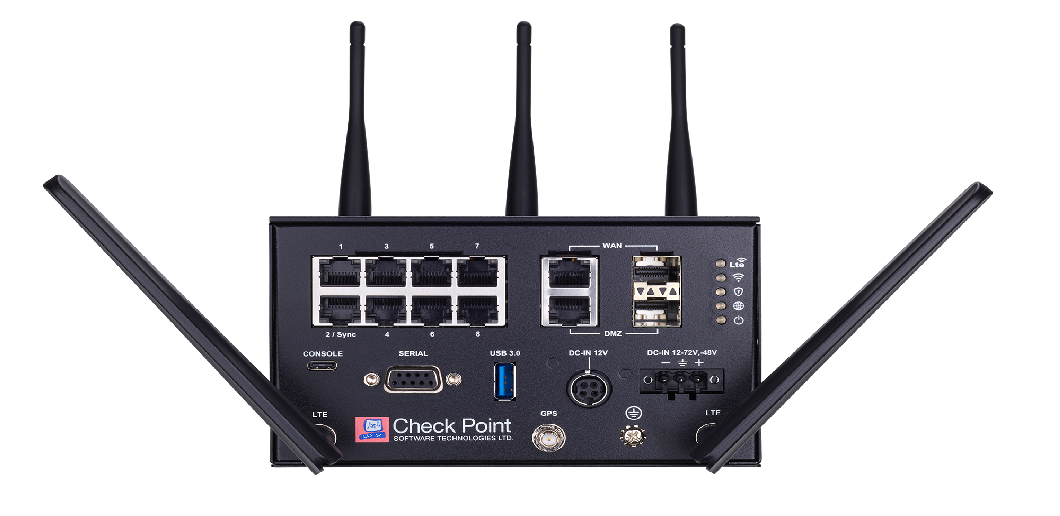

• Check Point 1570R black security appliance with antennas and ports
1 1

Check Point

Check Point CPAC-1570R-DIN-MNT | Quantum Rugged 1570R DIN Rail Mount Kit

Check Point CPAC-1570R-DIN-MNT | Quantum Rugged 1570R DIN Rail Mount Kit

Authorised Check Point Partner

CPAC-1570R-DIN-MNT

$278.06 inc. GST
$252.78 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

The CPAC-1570R-DIN-MNT is a DIN rail mount kit for the Check Point Quantum Rugged 1570R security gateway. It allows the compact rugged appliance to be installed on standard DIN rails inside industrial cabinets, keeping the gateway secure and tidy in control and automation environments.

The kit supports mounting the 1570R from the rear panel (1570R Wired) or the bottom panel (Wired and Wired-LTE models), so it can be matched to the space available in the enclosure. Fixing is by four M3 screws. It is suited to industrial, ICS/SCADA and maritime deployments where the 1570R is used to protect operational networks.

Features

- Mounts the 1570R on standard DIN rails from the back or bottom
- Suited to industrial cabinets and control panels
- Supports the 1570R rugged appliance, which operates from -40C to +75C and is certified to IEEE 1613 and IEC 61850-3
- Suited to industrial, ICS/SCADA and maritime deployments

Warranty

Check Point hardware appliances come with a 1-year limited hardware warranty.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Check Point products, ensuring your security infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.
https://www.checkpoint.com/support-services/software-license-agreement-limited-hardware-warranty/

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: CPAC-1570R-DIN-MNT
- Compatible appliance: Check Point 1570R (Quantum Rugged)
- Mounting positions on 1570R: rear panel (1570R Wired) or bottom panel (Wired and Wired-LTE)
- Fixing screws: 4 x M3
- 1570R with rear DIN adapter (H x W x D): 90 x 150 x 168 mm
- 1570R with bottom DIN adapter (H x W x D): 108 x 150 x 150 mm
- Compliant with IEC 61850-3 class 0 shock (DIN adapter)

FAQs

Q: Which Check Point appliance does this DIN rail mount kit fit?
A: It is designed for the Check Point Quantum Rugged 1570R security gateway.

Q: Can the 1570R be mounted from the rear or the bottom?
A: Yes. The kit supports rear panel mounting on the 1570R Wired and bottom panel mounting on the Wired and Wired-LTE models.

Q: What fixings does the kit use?
A: The adapter is fixed to the appliance with four M3 screws.

Q: How much space does the mounted appliance need?
A: With the rear DIN adapter the 1570R measures 90 x 150 x 168 mm (H x W x D). With the bottom DIN adapter it measures 108 x 150 x 150 mm.

Q: Is this kit suitable for harsh industrial environments?
A: The 1570R it mounts is a rugged appliance rated from -40C to +75C and certified to IEEE 1613 and IEC 61850-3, and the DIN adapter is compliant with IEC 61850-3 class 0 shock.
