Cambium Networks C000000L114A | DC LPU Kit, Surge Suppressor, 2x 4-Pin Molex DC Power, IP67

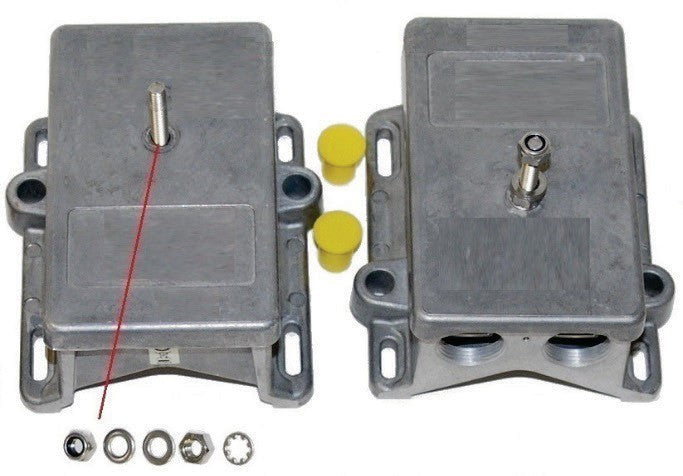

The Cambium Networks C000000L114A is a DC Lightning Protection Unit (LPU) kit engineered to safeguard the DC power port of PMP 450m 3 GHz Outdoor Units and compatible ODUs against damaging transient surges. Rated at 172A (10/1000µs) line-to-ground surge protection and compliant with EN61000-4-5, the kit ships with two complete LPUs fitted with Molex 4-pin DC connectors plus all grounding cables required for a ready-to-install deployment. IP66/IP67 weatherproofing and a -40°C to +60°C operating range make it suitable for the harshest outdoor environments.

Each unit supports pole mounting on 1–3" (25–75 mm) diameter poles or wall mounting, ensuring flexible field installation. For complete PMP 450m port protection, Cambium recommends pairing this DC LPU kit with the C000065L007B Cat5e Ethernet LPU. Visit iptrading.com.au to secure your order — enterprise-grade hardware with expert support.

- Protects the DC power port of PMP 450m 3 GHz Outdoor Units against lightning transients
- Compliant with EN61000-4-5 surge protection standard (10/700µs, 4 kV voltage waveform)
- 172A (10/1000µs) line-to-ground surge rating for robust transient suppression
- IP66/IP67 sealed enclosures rated for fully exposed outdoor installations

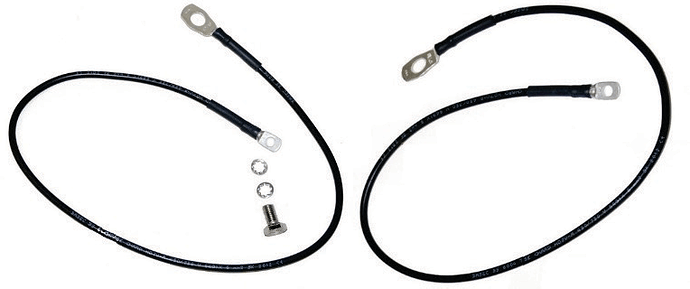

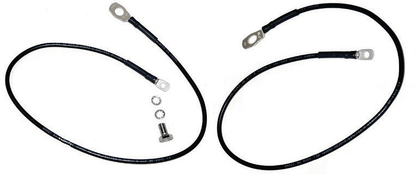

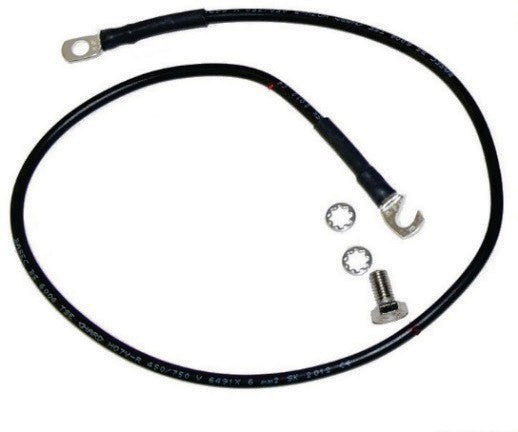

- Kit includes two complete LPU units plus LPU ground cables — no additional accessories required
- Supports pole mount (25–75 mm diameter) or wall mount for flexible field deployment
- Wide operating temperature range: -40°C to +60°C
- Pairs with C000065L007B Ethernet LPU for comprehensive dual-port ODU protection

Cambium Networks offers a standard 1-year limited warranty on most hardware products, covering defects in materials and workmanship under normal use conditions.
Extended Warranty Periods for Specific Products:
Certain product families come with extended warranty periods:
• cnMatrix – EX Series: 5 years
• cnMatrix – TX Series: 3 years
• cnPilot Wi-Fi 5 E-Series Indoor Access Points: 5 years
• cnPilot Wi-Fi 5 E-Series Outdoor Access Points: 3 years
• ePMP, PMP 450 Series, PTP 450 and PTP 550 Series: 3 years
• Wi-Fi 6 Indoor Access Points (e.g., XE3-4, XE5-8, XV2-2): Limited Lifetime Warranty (valid through product End of Life)
• Wi-Fi 6 Outdoor Access Points (e.g., XV2-2T): 3 years
• Wi-Fi 7 Indoor Access Points (e.g., X7-35X): Limited Lifetime Warranty (valid through product End of Life)
• Xirrus Series (e.g., XR-1xxx, XR-2xxx): 5 years
• Xirrus Series (e.g., X2-120, XR-320): Limited Lifetime Warranty (valid through product End of Life)
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for Cambium Networks products, ensuring your network infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.
