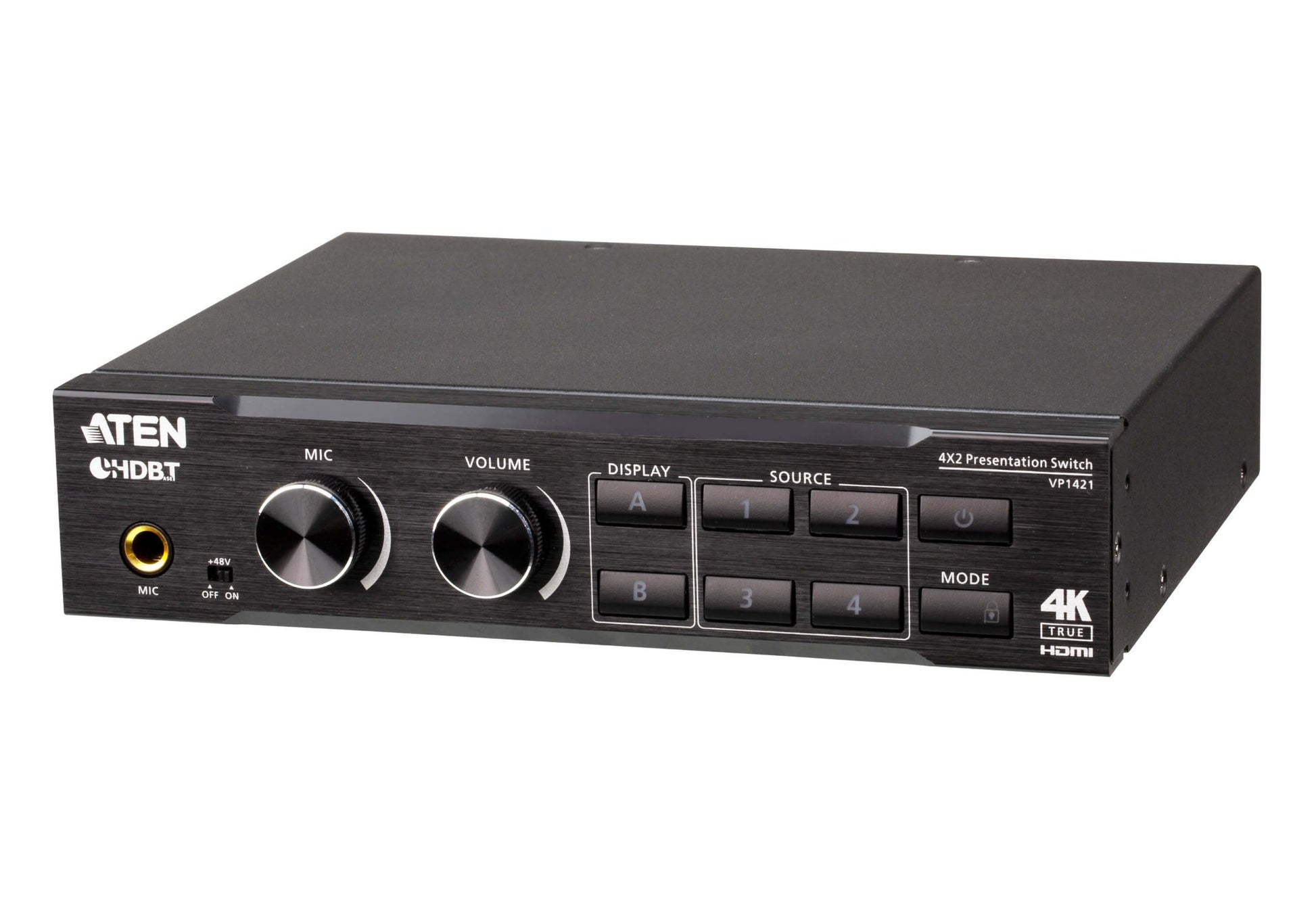

ATEN VP1421-AT-U | VP1421 Presentation Matrix Switch, 4 x 2, True 4K, HDMI/VGA, HDBaseT-Lite

ATEN VP1421-AT-U | VP1421 Presentation Matrix Switch, 4 x 2, True 4K, HDMI/VGA, HDBaseT-Lite

SKU:VP1421-AT-U

Stock Status: Enquire

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

ATEN€™s VP1421 is a compact 4 x 2 True 4K presentation matrix switch designed for small to medium meeting rooms and lecture spaces.. It combines flexible HDMI/VGA/HDBaseT inputs with HDMI and HDBaseT outputs, plus integrated scaling and audio DSP for smooth, professional delivery. With audio de€‘embedding, EDID management and multiple control options (front panel, RS€‘232, IR, Ethernet), it slots easily into new or existing AV systems and is backed by ATEN€™s manufacturer warranty.. Need it fast?. iptrading.com.au delivers across Australia shop now. Need it fast? iptrading.com.au delivers across Australia shop now.

Features

- 4 x 2 matrix switching for flexible room setups
- True 4K support for crisp, detailed presentations
- Integrated scaler for seamless, stutter-free switching
- HDBaseT-Lite for long-distance signal extension over Cat cable
- Audio DSP and de-embedding for clean, controllable sound
- Multiple control interfaces for easy system integration

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: What sources and displays can the VP1421 connect?
A: It accepts 2 x HDMI, 1 x VGA and 1 x HDBaseT-Lite inputs, and outputs to 1 x HDMI and 1 x HDBaseT-Lite display.

Q: Does it support 4K video?
A: Yes. It supports up to True 4K (4096 x 2160) for high-quality presentation visuals.

Q: How far can I transmit over the HDBaseT-Lite port?
A: Up to 70 metres at 1080p and up to 40 metres at 4K when using quality Cat6/6a cabling.

Q: Is there built-in scaling and audio processing?
A: Yes. The VP1421 includes an integrated scaler for optimal output resolution and audio DSP with de-embedding to analog line-level.

Q: What control options are available?
A: You can control it via front panel buttons, IR, RS-232, or over the network using Ethernet.

Q: Where can I buy this in Australia?
A: You can purchase the ATEN VP1421 from IP Trading in Australia, with fast nationwide delivery and local support.

Technical Specifications

- Matrix configuration: 4 x inputs to 2 x outputs
- Video inputs: 2 x HDMI, 1 x VGA, 1 x HDBaseT-Lite
- Video outputs: 1 x HDMI, 1 x HDBaseT-Lite
- Maximum resolution: up to True 4K (4096 x 2160)
- Integrated video scaling on outputs
- Audio DSP with mixing; audio de-embedding to analog line-level
- HDCP compliant
- EDID management
- Control interfaces: front panel, IR, RS-232, Ethernet
- HDBaseT-Lite reach: up to 70 m at 1080p; up to 40 m at 4K (Cat6/6a)
