ATEN SN1116CO-AX-U | SN11xxCO 16-Port Serial Console Server, Dual AC, Dual SFP

Name: ATEN SN1116CO-AX-U | SN11xxCO 16-Port Serial Console Server, Dual AC, Dual SFP
Brand: ATEN
SKU: SN1116CO-AX-U
Price: 6012.18 AUD
Availability: BackOrder

Authorised ATEN Partner

SKU:SN1116CO-AX-U

Stock Status: Enquire

$6,012.18 inc. GST

$5,465.62 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

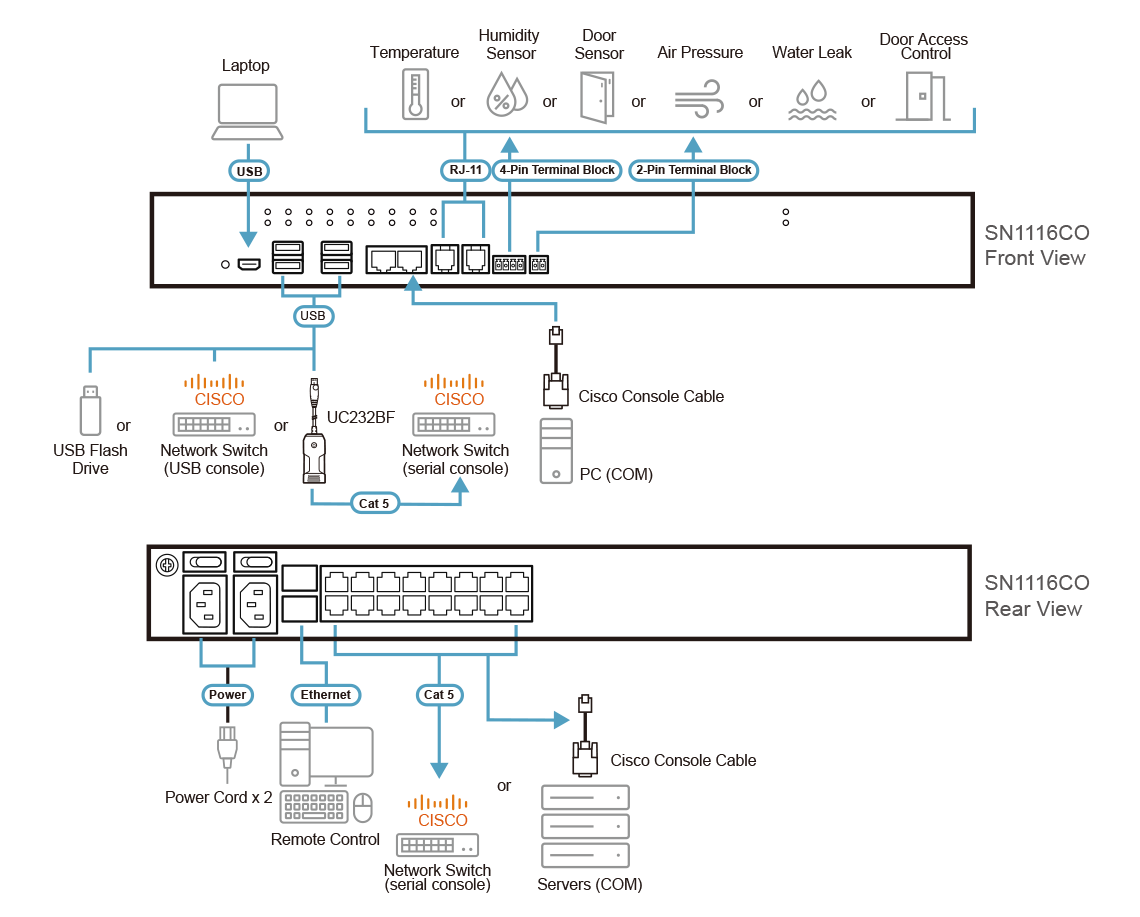

The ATEN SN1116CO-AX-U is a 16-port serial console server that gives secure in-band and out-of-band remote access to serial and USB console devices. Sixteen RJ-45 serial ports support Cisco pin-out with auto-sensing DTE/DCE, so no rollover cables are needed. Dual AC power supplies and dual SFP LAN slots provide failover or dual IP address access for critical network infrastructure.

Environment sensor ports and a relay port support monitoring and cabinet access control, while a 1U metal rack-mount chassis suits data centre and comms room deployments. It works with ATEN CC2000 software for centralised access and management, and supports TLS 1.2 encryption, IP/MAC filtering and FIPS 140-2 certified cryptography.

Features

- Secure in-band and out-of-band remote serial and USB console access
- Auto-sensing DTE/DCE with Cisco pin-outs, no rollover cables needed
- Dual power supplies and dual SFP slots for failover or dual IP access
- Sensor ports for environmental monitoring and relay port for cabinet door access control
- Online/offline detection of connected serial devices with email notification
- USB 4G dongle support (ZTE MF79U only) for cellular out-of-band redundancy
- TLS 1.2 encryption, RSA 2048-bit certificates, IP/MAC filtering and FIPS 140-2 certified cryptography
- Works with ATEN CC2000 software for centralised access and power management
- Access via Telnet/SSH, Java viewer, ActiveX and WebClient
- Includes USB console cable, 2 power cords, foot pad set and rack mounting kit

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

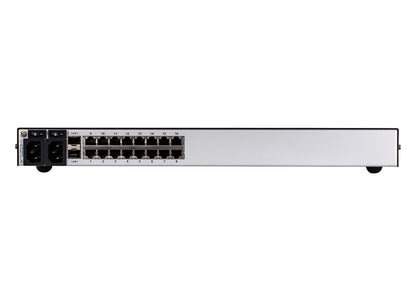

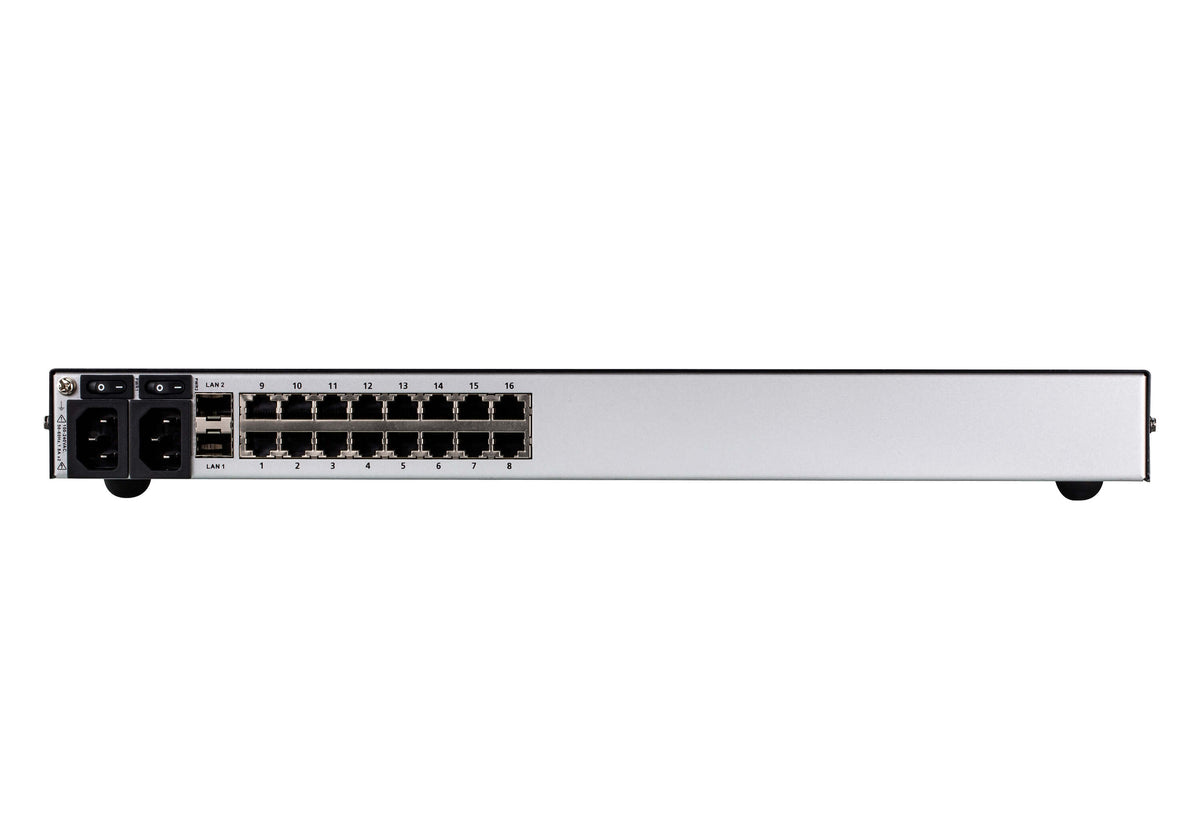

- 16 x RJ-45 serial ports
- 2 x SFP LAN slots (modules sold separately)
- Dual AC power supplies, 100-240VAC, 50/60Hz

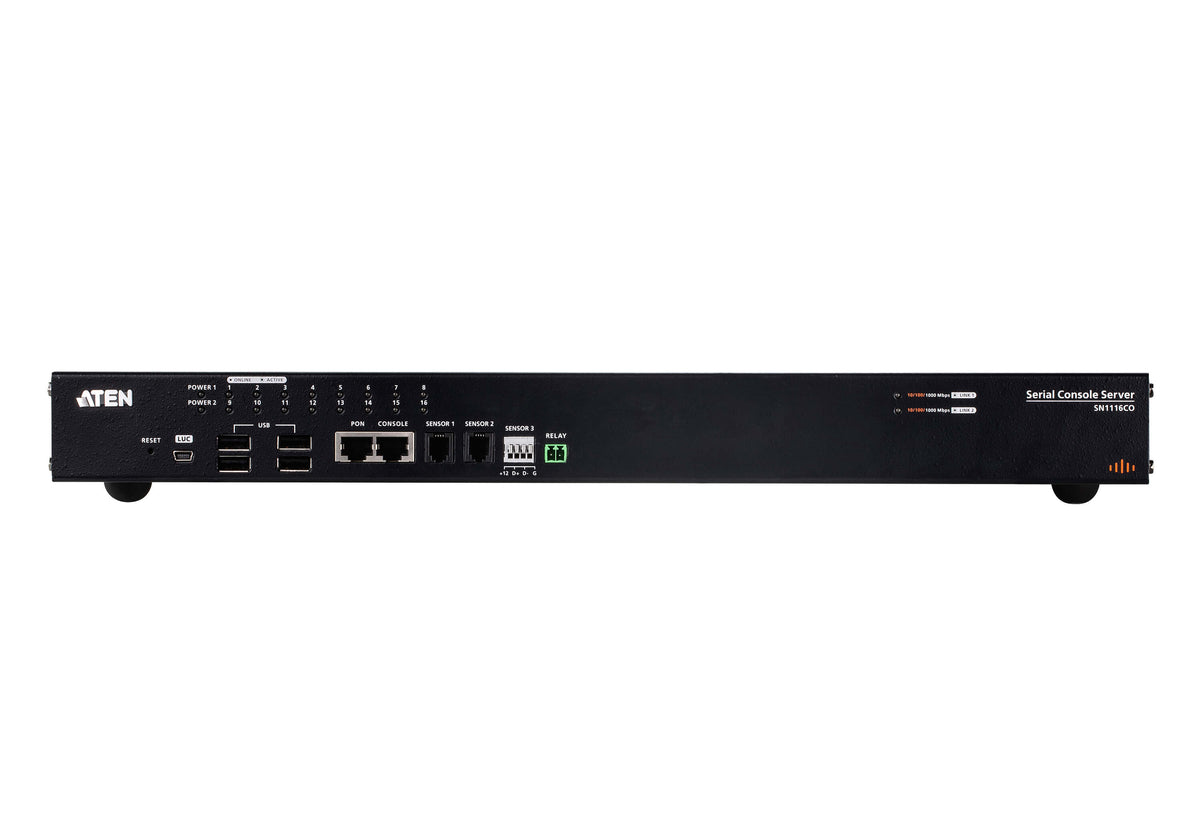

- 4 x USB Type A ports
- 1 x Laptop USB Console (Mini USB) port
- 1 x local console RJ-45 port
- Environment sensor ports: 2 x RJ11, 1 x 4-pin terminal block
- 1 x relay port, normally open, isolated, max 24 VDC 2A
- Modes: Console Management, Real COM Port, TCP Server/Client, UDP Server/Client
- Power consumption: 9.2W at 110V, 9.3W at 220V
- Operating temperature: 0 to 55 C
- Humidity: 0 to 80% RH, non-condensing
- Metal housing, 1U rack mount
- Dimensions (L x W x H): 43.84 x 32.84 x 4.40 cm
- Weight: 4.51 kg

FAQs

Q: Are SFP modules included with the SN1116CO-AX-U?
A: No. The two SFP LAN slots are provided, but SFP modules are sold separately.

Q: Do I need rollover cables to connect Cisco devices?
A: No. The serial ports use Cisco pin-out with auto-sensing DTE/DCE, so standard network cabling can be used to connect Cisco equipment.

Q: How does the dual power and dual SFP design help with failover?
A: Two AC power supplies keep the unit running if one feed fails, and the two SFP slots can be used for network failover or for dual IP address access.

Q: Can it provide cellular out-of-band access?
A: Yes. A USB 4G dongle can be attached for cellular out-of-band redundancy. Only the ZTE MF79U dongle is supported.

Q: Can it be managed centrally with other console servers?
A: Yes. It works with ATEN CC2000 software for centralised access and power management, and can also be accessed via Telnet/SSH, Java viewer, ActiveX and WebClient.

Q: Does it support environmental monitoring?
A: Yes. It has two RJ11 ports and a 4-pin terminal block for environment sensors, plus a relay port that can be used for cabinet door access control.
