ATEN PG96230G-AT | PG96230G 30-Outlet 3-Phase Switched PDU, 16A, 400/230V, IEC 60309

Name: ATEN PG96230G-AT | PG96230G 30-Outlet 3-Phase Switched PDU, 16A, 400/230V, IEC 60309
Brand: ATEN
SKU: PG96230G-AT
Price: 2480.67 AUD
Availability: BackOrder

Authorised ATEN Partner

SKU:PG96230G-AT

Stock Status: Enquire

$2,480.67 inc. GST

$2,255.15 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

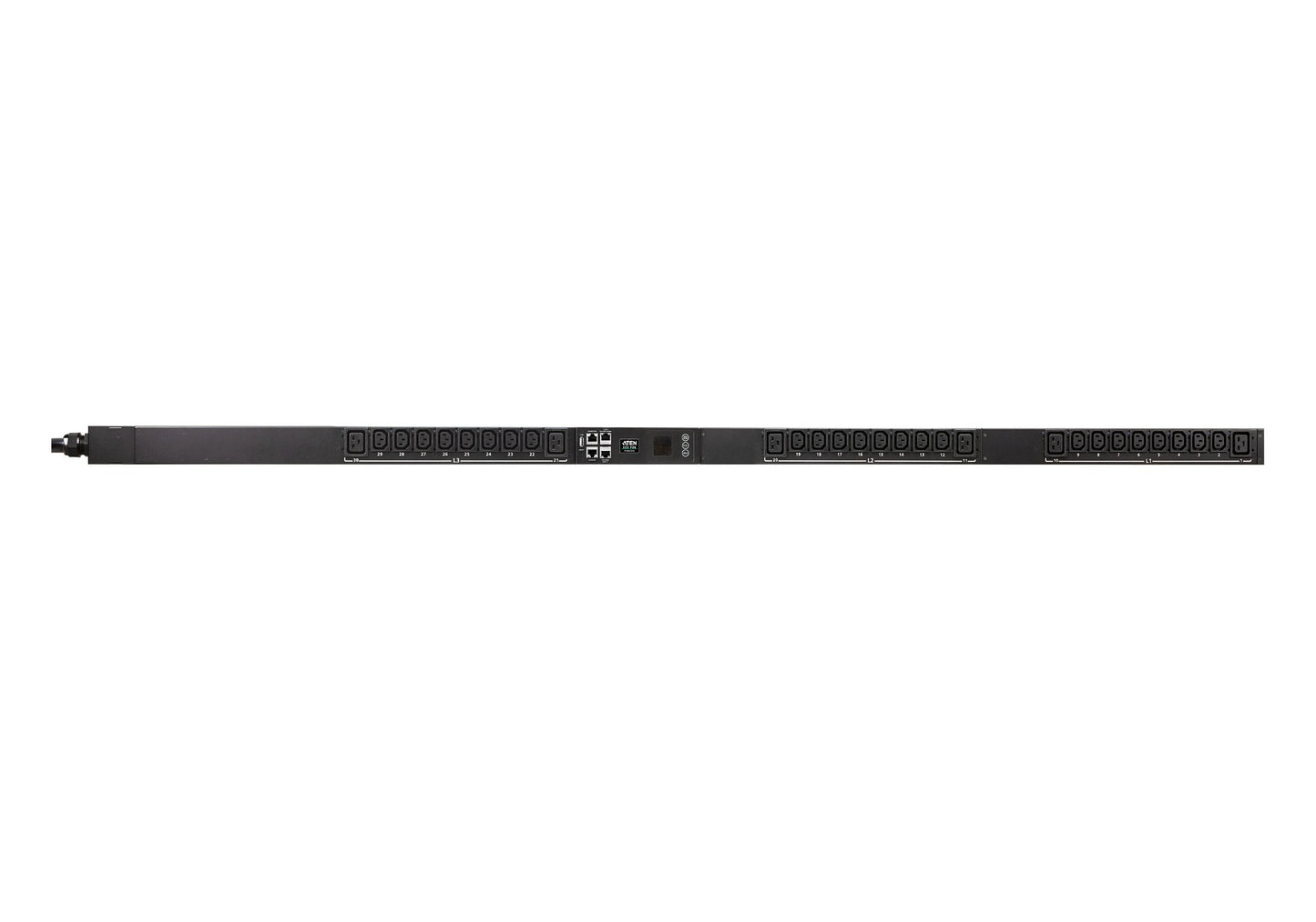

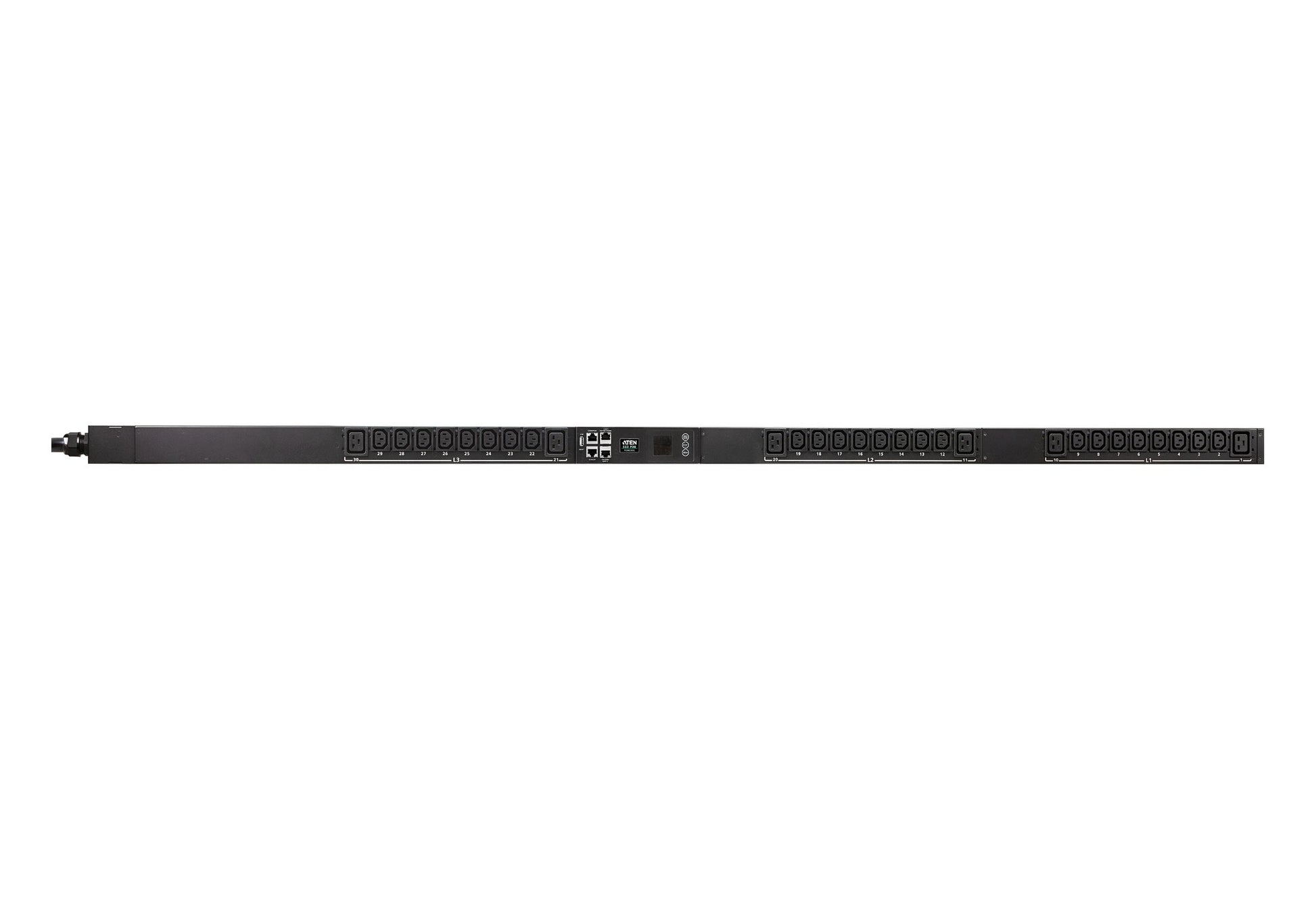

The ATEN PG96230G is a 0U three-phase rack PDU with 30 outlets (6 x IEC C19 and 24 x IEC C13), bank-level metering and per-outlet switching. This 16A model runs from a 400/230V 3PH (Star) supply through a 3 m cord with an IEC 60309 16/20A 3P+N+PE plug, making it well suited to high-density server racks and data centres that need remote power control.

Dual 1GbE LAN ports allow up to 64 PDUs to be cascaded under a single management connection, and a dedicated sensor port supports daisy-chained environment sensors for temperature, humidity, airflow, differential air pressure and leaks. kWh metering to 1% accuracy and energy-efficient relays help track and reduce power use across the rack.

Features

- Per-outlet switching for remote power on, off and cycling of connected equipment
- Bank-level metering of current, voltage, power factor and kWh
- Dual 1GbE LAN ports for network redundancy or separate networks, with cascading of up to 64 PDUs
- Control via LAN, COM and USB, powered by an ARM Cortex-A8 processor
- Energy-efficient relays handle large current flows at lower energy consumption
- Sensor port supports up to 8 daisy-chained environment sensors for temperature, humidity, airflow, differential air pressure and leaks
- 0U housing keeps rack space free in high-density server rooms and data centres

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- 30 outlets: 6 x IEC 60320 C19 and 24 x IEC 60320 C13
- Nominal input: 400/230V 3PH (Star), 16A maximum
- Input power: 11084VA maximum, 50-60 Hz
- Input connection: IEC 60309 16/20A 3P+N+PE plug, 3 m power cord
- Output: 230 VAC, C13 up to 10A, C19 up to 16A per outlet
- Metering: bank-level current, voltage, power factor and kWh, 1% accuracy
- Outlet switching supported
- Dual 1GbE LAN ports, cascade up to 64 PDUs
- Environment sensor port, up to 8 daisy-chained sensors
- Processor: ARM Cortex-A8
- Form factor: 0U, 179.0 x 5.6 x 6.8 cm, 7.36 kg
- Operating temperature 0 to 60 C, humidity 0-80% RH non-condensing
- Certifications: CE, EMC, UL, PSE

FAQs

Q: What input supply does the PG96230G require?
A: It requires a three-phase 400/230V (Star) supply rated at up to 16A, connected through the supplied 3 m cord with an IEC 60309 16/20A red 3P+N+PE plug.

Q: What outlet types does it provide?
A: It provides 30 outlets in total: 6 x IEC C19 (up to 16A each) and 24 x IEC C13 (up to 10A each), all at 230 VAC.

Q: Can I switch individual outlets remotely?
A: Yes. It is an outlet-switched PDU, so each outlet can be controlled remotely over the network, and metering is provided at bank level.

Q: How many PDUs can be cascaded together?
A: Up to 64 ATEN PDUs can be daisy-chained via the dual 1GbE LAN ports, allowing them to be managed from a single network connection.

Q: Does it support environment sensors?
A: Yes. The sensor port supports up to 8 daisy-chained environment sensors covering temperature, humidity, airflow, differential air pressure and leak detection.

Q: How does the PG96230G differ from other PG96230 models?
A: The G model is the 16A, 400/230V version with an IEC 60309 input plug. The U variant of the series uses a Clipsal 20A angled plug instead.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .
