ATEN PG5308G-AT | eco PDU 1U Rack PDU, 32A, 6x C13 + 2x C19, Metered

Name: ATEN PG5308G-AT | eco PDU 1U Rack PDU, 32A, 6x C13 + 2x C19, Metered
Brand: ATEN
SKU: PG5308G-AT
Price: 1185.31 AUD
Availability: BackOrder

Authorised ATEN Partner

SKU:PG5308G-AT

Stock Status: Enquire

$1,185.31 inc. GST

$1,077.55 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

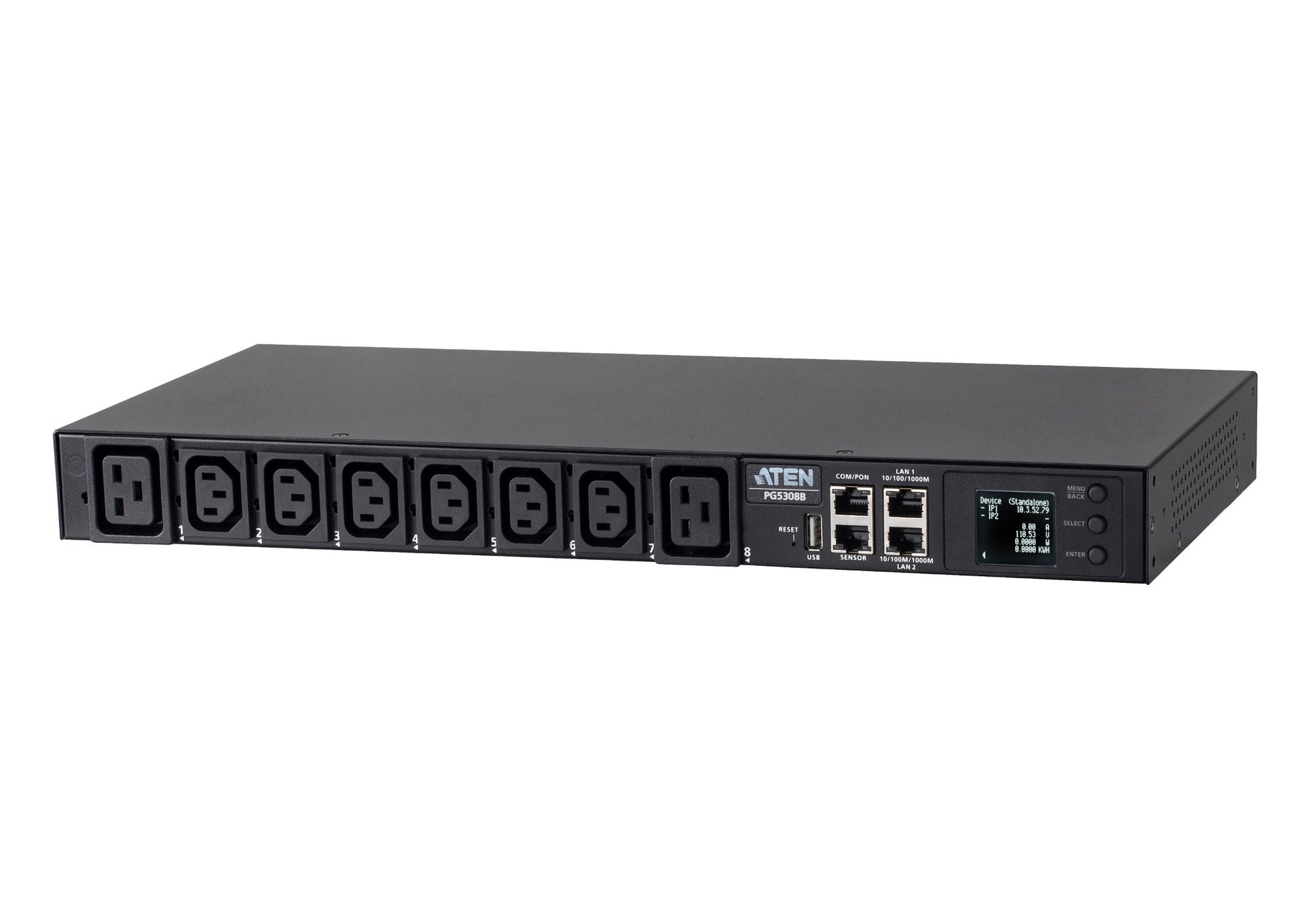

The ATEN PG5308G eco PDU is a 1U metered rack PDU rated 32A with eight outlets (6 x IEC 60320 C13 and 2 x IEC 60320 C19), designed for server racks and network cabinets that need accurate power monitoring. It accepts 100-240 VAC through an IEC 60309 32A input plug on a 3 m power cord and delivers bank-level monitoring of current, voltage, power factor and kWh at +/-1% accuracy.

Dual Gigabit LAN ports let you cascade up to 64 PDUs, while the environment sensor port supports up to 8 ATEN EA1640 sensors (sold separately) for temperature, humidity, airflow, differential air pressure and leak monitoring. Remote management is available over TCP/IP, HTTP/HTTPS, SNMP v1/v2/v3, Telnet and Modbus, with RADIUS, LDAP and TACACS authentication supported.

Features

- Hydraulic-magnetic circuit breaker protects connected devices from overload
- Bank-level monitoring of current, voltage, power factor and kWh
- Dual Gigabit LAN ports with cascading of up to 64 PDUs
- Real-time alerts on a 180-degree rotatable LCD display
- Environment sensor port supports up to 8 ATEN EA1640 sensors for temperature, humidity, airflow, differential air pressure and leak monitoring
- Remote management via TCP/IP, HTTP/HTTPS, SNMP v1/v2/v3, Telnet, Modbus and IPv6
- RADIUS, LDAP and TACACS authentication
- JSON-RPC and Python scripting support
- RS-232 COM port for CLI communication, with RS-485 support
- Network connectivity via USB Wi-Fi dongle for DCIM, firmware upgrade, log export and quick configuration
- Secure-locking enhancement helps prevent power cords from unplugging
- Colour-coded LCD panel stickers help differentiate power feeds

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- 8 outlets: 6 x IEC 60320 C13 + 2 x IEC 60320 C19
- Maximum output current per outlet: C13 10A, C19 16A
- Nominal input voltage: 100-240 VAC, 50-60 Hz
- Maximum input current: 32A
- Maximum input power: 7680VA
- Input connection: IEC 60309 32A plug, 3 m power cord
- Metering: bank-level current, voltage, power factor and kWh, +/-1% accuracy
- Outlet switching: none (metered only)
- Circuit protection: 2 x UL489 hydraulic-magnetic circuit breakers
- Network: dual 10/100/1000M Ethernet ports, cascade up to 64 PDUs
- Ports: 1 x RJ-45 environment sensor port, 1 x USB 2.0 Type-A, 1 x RJ-45 PON+COM port
- Form factor: 1U rack-mount
- Dimensions (L x W x H): 43.24 x 21.00 x 4.40 cm, weight 3.99 kg
- Operating temperature 0 to 60 C, humidity 0-80% RH non-condensing
- Certifications: CE, UKCA

FAQs

Q: What outlets does the ATEN PG5308G provide?
A: It has eight outlets: six IEC 60320 C13 and two IEC 60320 C19. C13 outlets are rated up to 10A and C19 outlets up to 16A.

Q: What input plug and voltage does it use?
A: The PG5308G has an IEC 60309 32A input plug on a 3 m power cord and accepts 100-240 VAC at up to 32A.

Q: Can I switch individual outlets on and off remotely?
A: No. This is a metered (non-switched) PDU. It monitors current, voltage, power factor and kWh at bank level, but does not offer outlet switching.

Q: Does it support environmental monitoring?
A: Yes. The RJ-45 sensor port supports up to 8 ATEN EA1640 environment sensors (sold separately) for temperature, humidity, airflow, differential air pressure and leak detection.

Q: Can multiple PDUs be linked together?
A: Yes. The dual Gigabit LAN ports allow cascading of up to 64 PDUs under a single network connection.

Q: Which management protocols are supported?
A: TCP/IP, HTTP/HTTPS, SNMP v1/v2/v3, Telnet, Modbus and IPv6, with RADIUS, LDAP and TACACS authentication.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .
